INSTALLING THE TRIM RING

The trim ring is attached to the video monitor using the perimeter screw bosses. It is important that the screws used in this installation are not over
tightened, and that the video monitor and trim ring are mounted in such a way that the assembly does not distort (or bend) when the mounting
screws are tightened.
There are two Trim Ring options for mounting the ADVEXL10 A, one is to use the supplied Trim Ring for all vehicles with flat headliner mounting
areas (no contour) or a thick Trim Ring (not supplied) that can be cut to fit the contour of a headliner that is not flat (see Appendix B of this manual).
NOTE: The trim rings supplied with this unit are not designed to be trimmed.

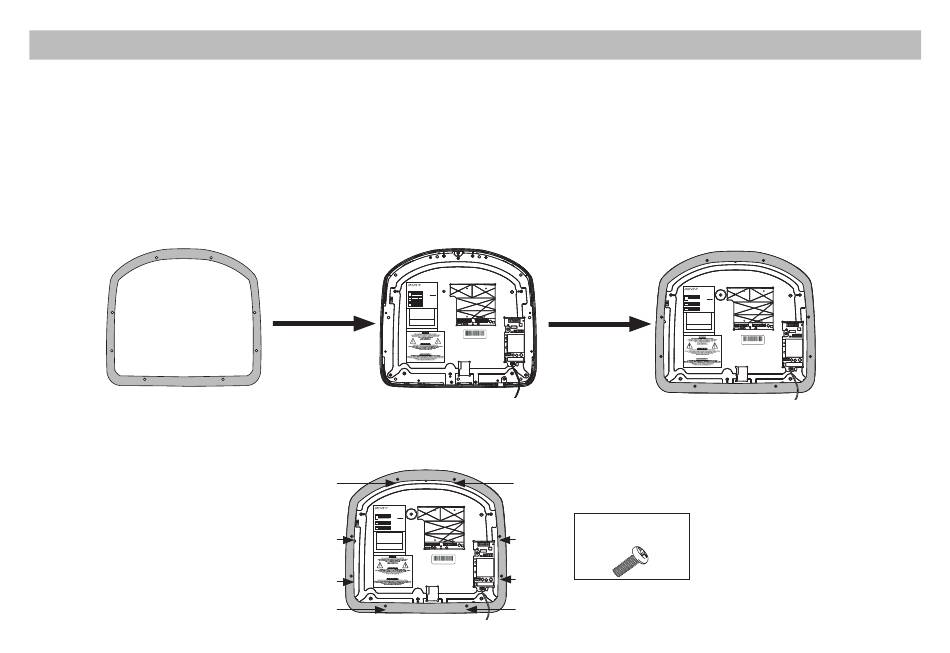

Installing the Trim Ring
1. Turn the DVD Player over on a surface with protective covering to prevent scratches.
2. Place the trim ring onto the DVD Player. Align the pins on the trim ring with the holes in the metal chassis plate.
3. Locate the eight (8) M3 x 8mm screws in the hardware kit.
4. Using a screwdriver, install the eight (8) M3 x 8mm screws into the locations marked "A" shown in the figure below.
NOTE: Use caution tightening screws as the threads may strip in the DVD Player.
Trim Ring
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
(BLACK) CN2 LAMP-AUTO VIO/BRN
LAMP-ON LAMP-COMMON BLK/RED RED/BLK Inspected By :
POWER +12v (SW) RED
POWER GROUND BLACK
AV Input 12-Pin Harness
Connector Signal Name Color
CN4 VIDEO-IN YELLOW
(BLACK) AUDIO L-IN WHITE
AUDIO R-IN RED
AV Output 5-Pin Harness
Connector Signal Name Color
CN1 VIDEO-OUT YELLOW
(WHITE ) AUDIO L-OUT WHITE
AUDIO R-OUT RED 132-7907
Made in China
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011
(A)
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
CN2 LAMP-AUTO VIO/BRN
(BLACK) LAMP-ON RED/BLK
LAMP-COMMON POWER +12v (SW) RED BLK/RED Inspected By :
POWER GROUND BLACK
AV Input 12-Pin Harness
Connector Signal Name Color
CN4 (BLACK) VIDEO-IN AUDIO L-IN YELLOW WHITE
AUDIO R-IN RED
AV Output 5-Pin Harness
Connector Signal Name Color
(WHITE ) CN1 VIDEO-OUT AUDIO L-OUT WHITE YELLOW
AUDIO R-OUT RED 132-7907
Made in China
(A)
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011
141200000113655100
WARRANTY VOID IF LABEL REMOVED
(A)
(A)
DVD
PLAYER
141200000113655100
WARRANTY VOID IF LABEL REMOVED
(A)
TRIM RING SCREW
(A) M3 X 8mm Screw
(QTY 8)
(A)
(A)
(A)
7
TRIM
RING
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788 ON DVD
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
(BLACK) CN2 LAMP-AUTO VIO/BRN
LAMP-COMMON LAMP-ON BLK/RED RED/BLK Inspected By :
POWER +12v (SW) RED
POWER GROUND BLACK
AV Input 12-Pin Harness
Connector Signal Name Color
CN4 VIDEO-IN YELLOW
(BLACK) AUDIO L-IN WHITE
AUDIO R-IN RED
AV Output 5-Pin Harness PLAYER
Connector Signal Name Color
CN1 VIDEO-OUT YELLOW
(WHITE ) AUDIO L-OUT WHITE
AUDIO R-OUT RED 132-7907
Made in China
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011
141200000113655100
WARRANTY VOID IF LABEL REMOVED
