INSTALLING ADVEXL10 A VIDEO SYSTEM - MOUNTING THE UNIT

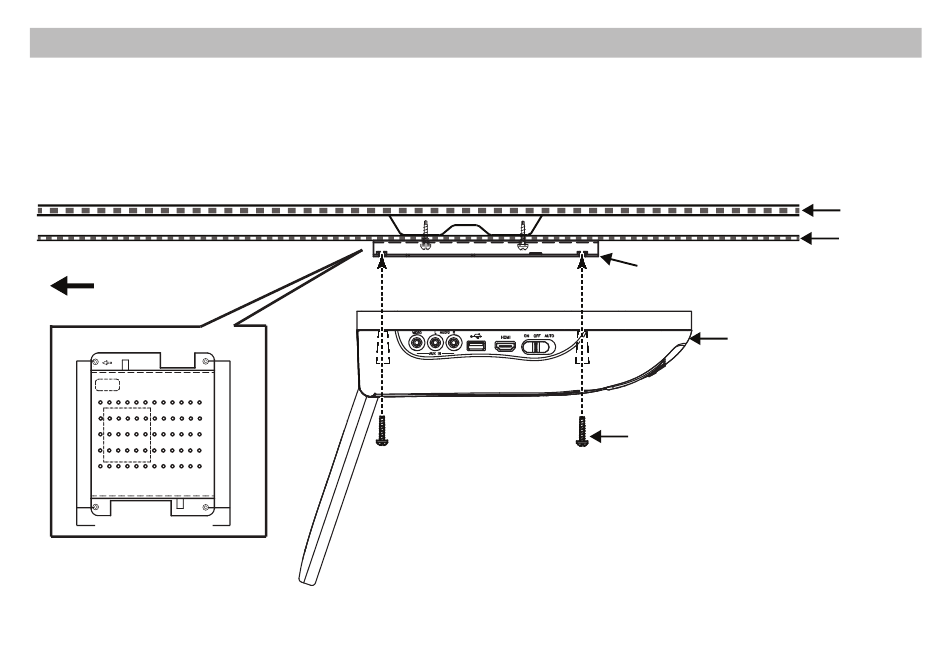

Installing the ADVEXL10 A System
1. Make all electrical connections.
2. Attach the ADVEXL10 A unit to the mounting bracket using four M5 screws.
CAUTION: The M5 screws are supplied in three different lengths (10mm, 20mm and 40mm) to facilitate proper installation. Use extreme caution
when using these screws to avoid damage to vehicle roof or other components, wiring, etc.
CAUTION: Do not trap any wiring between the bracket and the unit.
Front
of
Vehicle
Mounting Bracket
Mounting Holes
Mounting Bracket
4 x M5
Screws
NOTE: Do not over torque or
over tighten M5 screws.
14
Roof
Headliner
Video Unit
ADVEXL10 A
