APPENDIX A
This section is intended for situations where the color of the Shroud, Screen Cover and Trim Ring need to be changed after the unit is setup for
installation. NOTE: Work on a soft surface to avoid damaging the plastic.

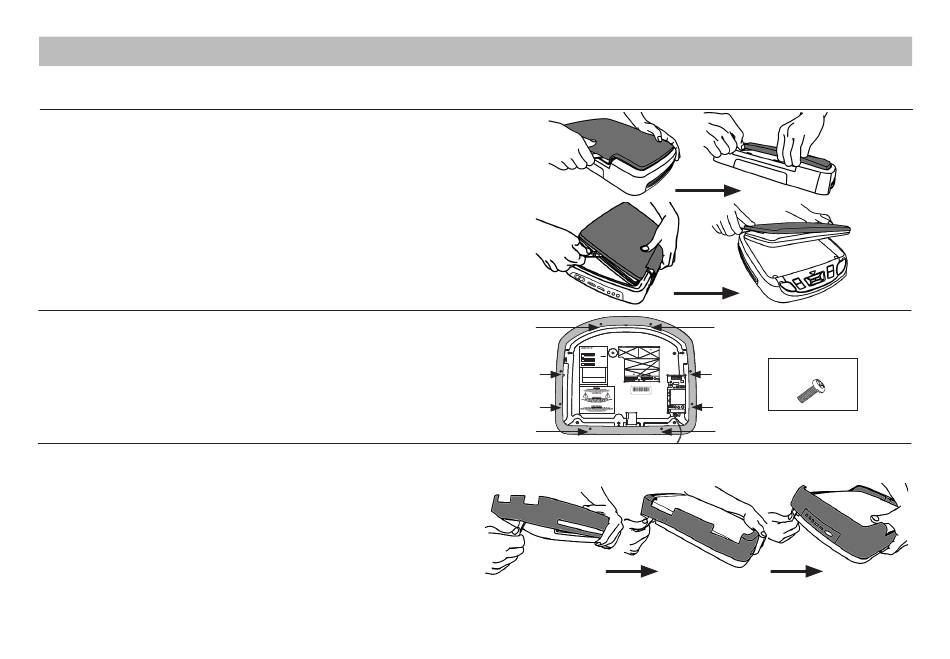

Removing the Screen Back Cover
1. Starting from the back of the unit, carefully insert the supplied
pry tool between the Housing and Screen Back Cover
2. Press the pry tool to release the Screen Back Cover.
3. While lifting the Screen Back Cover, slide the pry tool around to
the attaching areas and press the pry tool to release the Screen
Back Cover.
4. Remove the Screen Back Cover and discard.
Removing the Trim Ring
1. Remove the Trim Ring screws ((8) M3 x 8mm screws).
NOTE: Do not Discard Screws! These screws are used to attach the
new Trim Ring.
2. Remove the Trim Ring and discard.
Removing the Shroud
1. Using the supplied pry tool, remove the slide knob from the
dome light switch located on the side of the DVD player.
NOTE: Do not Discard knob! The knob is reused.
2. Open the screen and insert the supplied pry tool between the
Housing and Shroud and disengage the tape on the center
section of the shroud.
3. Press the pry tool to disengage the attaching Shroud clips.
4. Continue disengaging the attaching areas around the unit
removing the Shroud and discard.
REMOVING THE TRIM RING, SNAP-ON SHROUD AND SCREEN COVER
(8)
(7)
(6)
(5)
15
(1)
R
150 Marcus Blvd., Hauppauge, NY 11788 VOXX ELECTRONICS CORP.
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
(BLACK) CN2 LAMP-ON LAMP-AUTO VIO/BRN RED/BLK
LAMP-COMMON BLK/RED Inspected By :
POWER +12v (SW) POWER GROUND RED BLACK
AV Input 12-Pin Harness
Connector Signal Name Color
(BLACK) CN4 VIDEO-IN YELLOW
AUDIO R-IN AUDIO L-IN RED WHITE
AV Output 5-Pin Harness
Connector Signal Name Color
CN1 VIDEO-OUT YELLOW
(WHITE ) AUDIO L-OUT AUDIO R-OUT RED WHITE 132-7907 (2)
Made in China
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011
141200000113655100
WARRANTY VOID IF LABEL REMOVED
(3)
(4)
TRIM RING SCREW
(8) M3 X 8mm Screws
