APPENDIX C
This section is intended as an installation guide to connect the MVGP1 Game Module to the ADVEXL10 A video system.
NOTE: The MVGP1 Game Module is sold separately and is supplied with its own instruction manual.
Installing the MVGP1 Game Module
1. Turn the DVD Player over on a surface with protective covering
to prevent scratches.
2. Begin looping the excess MVGP1 Game Module harness under
the protective top plate towards the back of the DVD player as
shown.
3. Place the MVGP1 Game Module onto the mounting standoffs.
4. Locate the two #2 x 1/4 Phillips Self Tapping Screws
(P/N 100-2606) in the ADVEXL10 A hardware kit.
5. Using a screwdriver, install the two screws into the two locations
shown.
NOTE: Use caution tightening screws as the threads may strip in
the DVD Player.
6. Insert the 8-pin connector of the MVGP1 Game Module harness
into the location shown.
7. Verify Game Module and Game Controllers function properly
(refer to Owner's Manual).
INSTALLING THE OPTIONAL GAME MODULE (MVGP1)
MVGP1 Game Module
Harness l
oop
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
CN2 LAMP-AUTO VIO/BRN
(BLACK) LAMP-ON RED/BLK
LAMP-COMMON BLK/RED Inspected By :
POWER +12v (SW) RED
POWER GROUND BLACK
AV Input 12-Pin Harness
Connector Signal Name Color
CN4 VIDEO-IN YELLOW
(BLACK) AUDIO L-IN WHITE
AUDIO R-IN RED
AV Output 5-Pin Harness
Connector Signal Name Color
CN1 VIDEO-OUT YELLOW
(WHITE ) AUDIO L-OUT WHITE
AUDIO R-OUT RED 132-7907
Made in China
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011

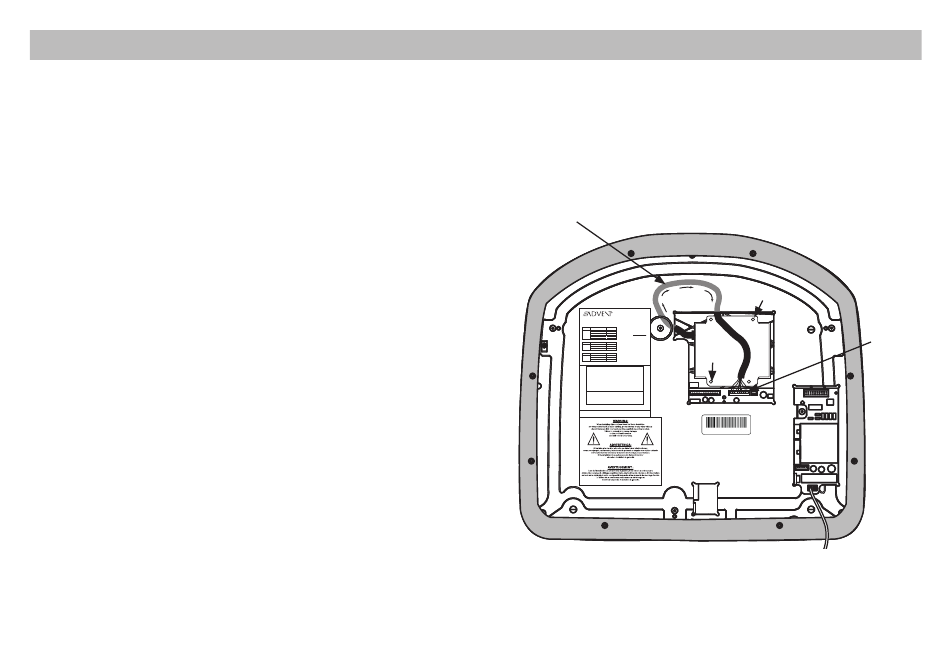

Top of ADVEXL10 A Video System
17
Back of Unit
Screw
MVGP1
Screw
141200000113655100
WARRANTY VOID IF LABEL REMOVED
8-Pin
Harness
Connector
