INSTALLING THE ADVEXL10 A VIDEO SYSTEM - WIRING DIAGRAM

1. Connect the dome light wires as shown on pages 10 and 11 of this
install manual.
2. Connect the input power wires of the 6 pin Power/Dome Light
Harness to the vehicle's electrical system by tapping into an
accessory hot line and a good ground. NOTE: This connection
must be fused at the vehicle connection point.
3. Plug the 6 pin Power/Dome Light Harness into the unit in the
location shown.

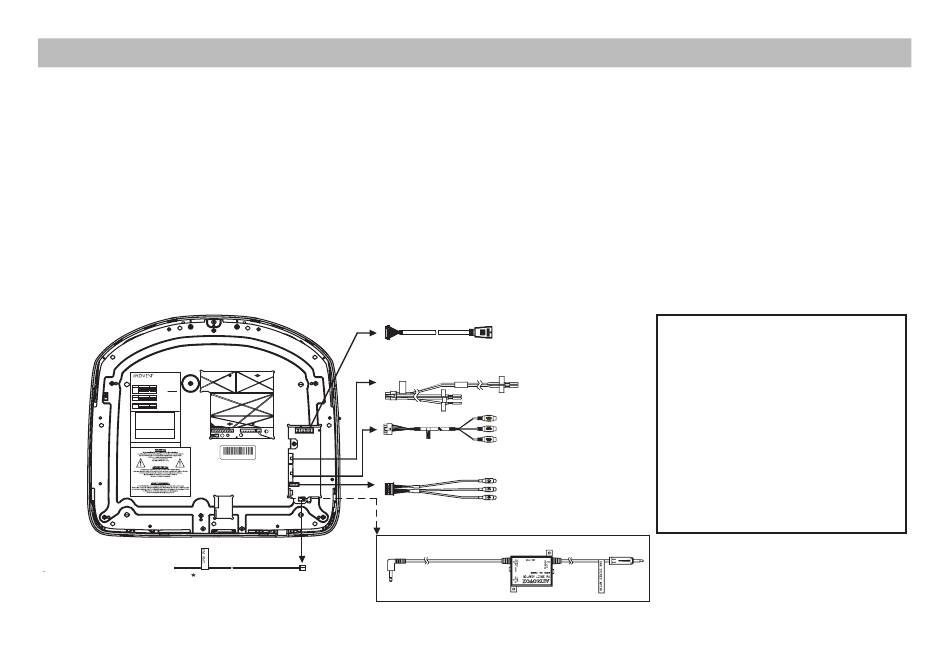

WIRING DIAGRAM
R
VOXX ELECTRONICS CORP.
150 Marcus Blvd., Hauppauge, NY 11788
Technical Assistance: 1-800-225-6074
MODEL NO.: A DVEXL10 A
Power + Dome Light 6-Pin Harness
Connector Signal Name Color
VIO/BRN
(BLACK) CN2 LAMP-AUTO
LAMP-ON RED/BLK
LAMP-COMMON BLK/RED Inspected By :
POWER +12v (SW) RED
BLACK
POWER GROUND
AV Input 12-Pin Harness
Connector Signal Name Color
CN4 VIDEO-IN YELLOW
(BLACK) AUDIO L-IN WHITE
AUDIO R-IN RED
AV Output 5-Pin Harness
Connector Signal Name Color
CN1 VIDEO-OUT YELLOW
(WHITE )
AUDIO L-OUT WHITE
AUDIO R-OUT RED 132-7907
Made in China
This device complies with FCC Rules Part 15.
Operation is subject to the following two
conditions : (1) This device may not cause
harmful interference and (2) This device must
accept any interference that may be received,
including interference that may cause
undesired operation.
This product is Class 1 Laser Product and
complies with FDA Rules 21 CFR Chapter 1,
Subchapter J.
Patented, refer to www.voxxintl.com/company/patents
FCC ID : ATI9R3ODM21011
* 2 Pin FM Antenna
HDMI 2 Pigtail Harness (optional)
(HDIP1)
6 Pin Power/Dome Light Harness
(P/N 112-4270)
12 Pin AV Input Harness
(P/N 112-4094)
141200000113655100
WARRANTY VOID IF LABEL REMOVED
5 Pin AV Output Harness
(P/N 112-4260)
4. If connecting to an external source, plug in the 12 pin AV Input
Harness (P/N 112-4094) in the location shown. Connect RCA
cables (not supplied) to the external source's AV Output.
5. If connecting to a second screen AUX Input or head unit AUX
Input, plug in the 5 pin AV Output Harness (P/N 112-4260) in the
location shown and connect RCA cables (not supplied) to the AV
Input of the second screen or head unit.
6. Verify all system functions before permanently mounting the unit.
*NOTE: The antenna has been designed for optimal performance. When
installing the unit, position the antenna for best reception.
(HDMI only)
Optional Relay Box FMDIRB
13
A/V Sources:
• DVD / CD
• USB Input
• HDMI1 Input (MHL/HDMI)
• HDMI2 Input (HDMI only)
• Media (e.g. iPod, iPhone, iPad)
• AV - Signal Harness (P/N 112-4094)
to the 3 RCA Jack Pigtail is used for
AV Input.
• AUX - AUX Input
• DTV
• Game
