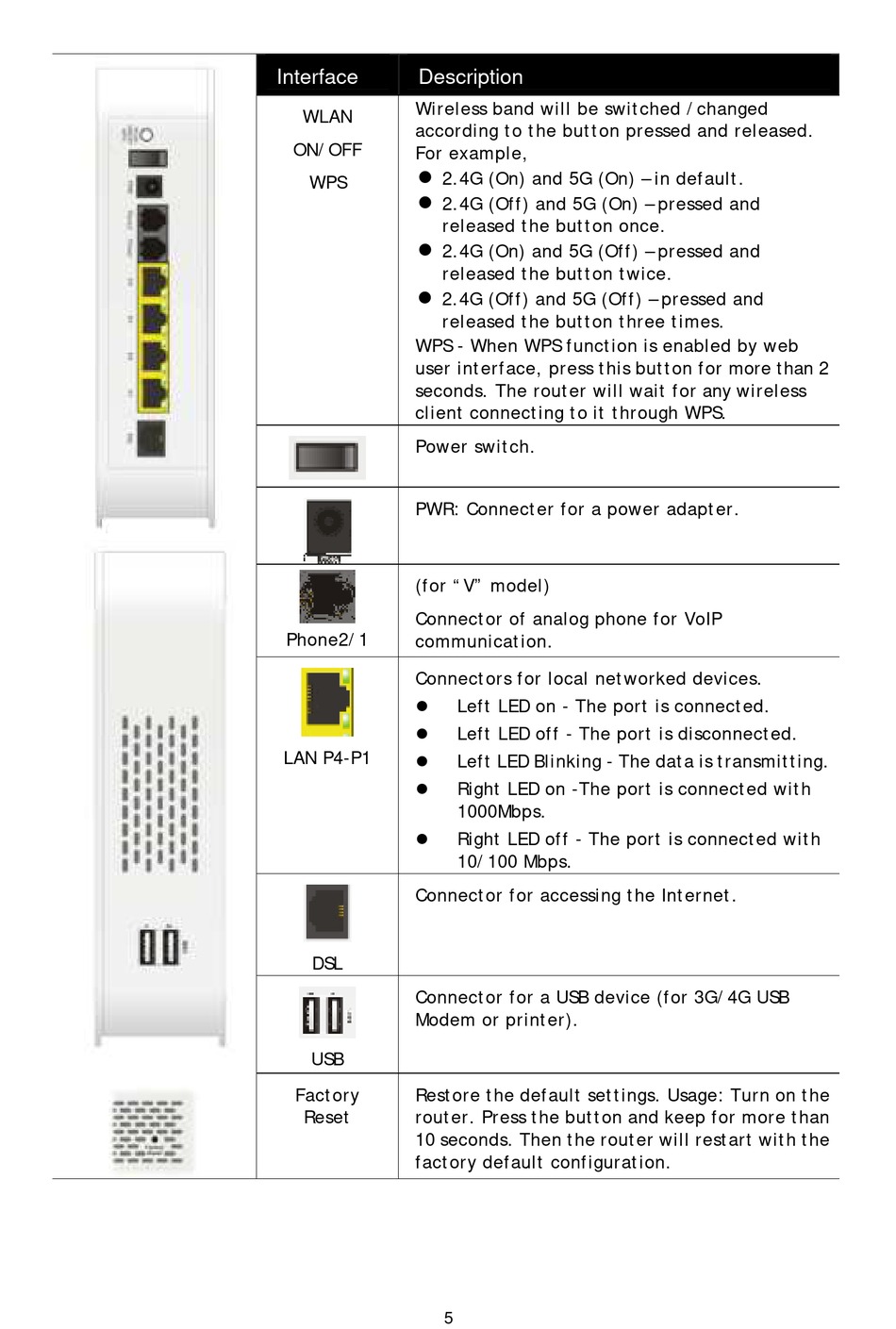

Interface Description
Wireless band will be swit ched / changed
WLAN
according t o t he but t on pressed and released.
ON/ OFF
For example,

2. 4G (On) and 5G (On) – in def ault .
WPS

2. 4G (Of f ) and 5G (On) – pressed and
released t he but t on once.

2. 4G (On) and 5G (Of f ) – pressed and
released t he but t on t wice.

2. 4G (Of f ) and 5G (Of f ) – pressed and
released t he but t on t hree t imes.
WPS - When WPS f unct ion is enabled by web
user int erf ace, press t his but t on f or more t han 2
seconds. The rout er will wait f or any wireless
client connect ing t o it t hrough WPS.
Power swit ch.
PWR: Connect er f or a power adapt er.
(f or " V" model)
Connect or of analog phone f or VoIP
Phone2/ 1
communicat ion.
Connect ors f or local net worked devices.


LAN P4-P1



Connect or f or accessing t he Int ernet .
DSL
Connect or f or a USB device (f or 3G/ 4G USB
Modem or print er).
USB
Fact ory Rest ore t he def ault set t ings. Usage: Turn on t he
Reset rout er. Press t he but t on and keep f or more t han
10 seconds. Then t he rout er will rest art wit h t he
f act ory def ault conf igurat ion.
5
Lef t LED on - The port is connect ed.
Lef t LED of f - The port is disconnect ed.
Lef t LED Blinking - The dat a is t ransmit t ing.
Right LED on -The port is connect ed wit h
1000Mbps.
Right LED of f - The port is connect ed wit h
10/ 100 Mbps.
