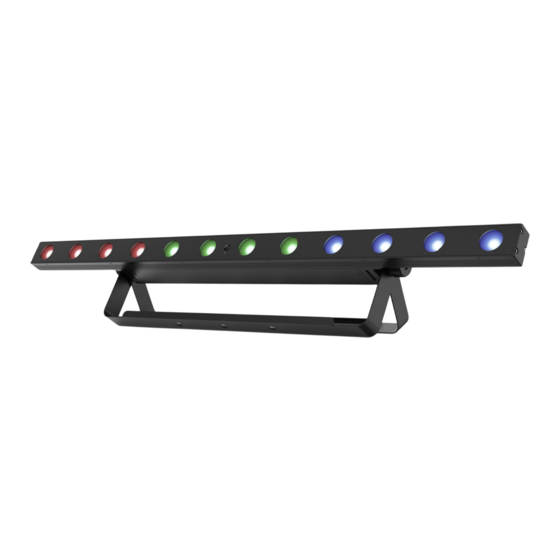

Summary of Contents for Chauvet DJ COLORband T3BT ILS
- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Infrared Remote Control ..............IRC-6 Operation ......................10 Bluetooth Control ..................Master/Slave Mode ..................Master/Slave Mode (D-Fi USB)..............ILS Mode....................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................COLORband T3BT ILS User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and COLORband T3BT ILS are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Safety Notes
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. COLORband T3BT ILS User Manual Rev. 1... -
Page 5: Introduction
(2x) buttons in/ out Product Dimensions 22.1 in 562 mm 39.3 in 1000 mm 3.1 in 24.2 in 3.8 in 78 mm 615 mm 98 mm 5.5 in 140 mm 2 in 50mm COLORband T3BT ILS User Manual Rev. 1... -
Page 6: Setup
3. Setup AC Power The COLORband T3BT ILS has an auto-ranging power supply and can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The COLORband T3BT ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
Choosing a starting address that is too high could restrict the access to some of the product’s channels. The COLORband T3BT ILS uses up to 13 DMX channels in a 13Ch DMX mode, which defines the highest configurable address to 500. -
Page 9: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The COLORband T3BT ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 10: Dmx Values
228 Auto Program 7 255 Auto Program 8 250 Program speed, slow to fast – – Auto speed 255 Sound-active mode Dimmer 255 0–100% Zones for DMX Control COLORband T3BT ILS User Manual Rev. 1... -
Page 11: Configuration (Standalone)
DMX signals from the controller. Preset Color Mode To run the COLORband T3BT ILS on a static color, follow the instructions below: 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 12: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The COLORband T3BT ILS can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Press <UP> repeatedly until ir shows on the display. -
Page 13: Master/Slave Mode
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single COLORband T3BT ILS product (the “master”) to control the actions of one or more COLORband T3BT ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. -
Page 14: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. COLORband T3BT ILS User Manual Rev. 1... -
Page 15: Technical Specifications
Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 3, 15, or 13 Ordering Product Name Item Code UPC Number COLORband T3BT ILS 10032063 7814622241 COLORband T3BT ILS User Manual Rev. 1... -
Page 16: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. COLORband T3BT ILS User Manual Rev. 1...
