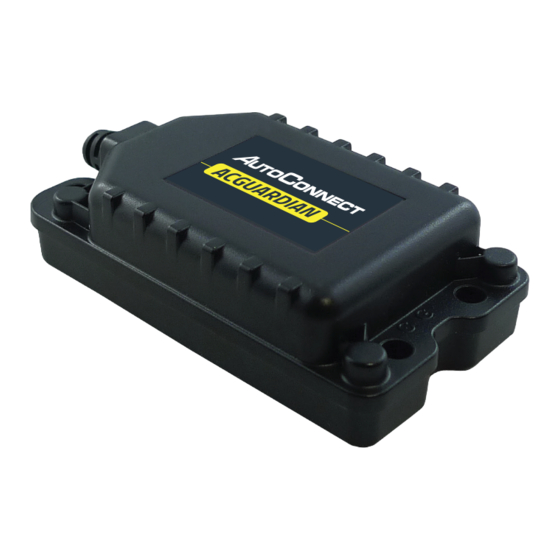

ACGUARDIAN
Type 1
GPS Only
DO NOT CONNECT
Brown/Blue - DATA ONLY
ACGUARDIAN
Fuse
1. Connect Red wire to Constant +12V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
Type 2
GPS with Starter Disable (optional)
Red
87A
86
87a
87
Blue
30
Black
86
White
85
85
30
DO NOT CONNECT
Brown/Blue - DATA ONLY
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
ACGUARDIAN
Red (12V+) - Constant
1. Connect Red wire to Constant +12V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
4. Connect Green wire to relay.
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
Red (12V+) - Constant
CUT
Vehicle Start
Interrupt Wire
Fuse

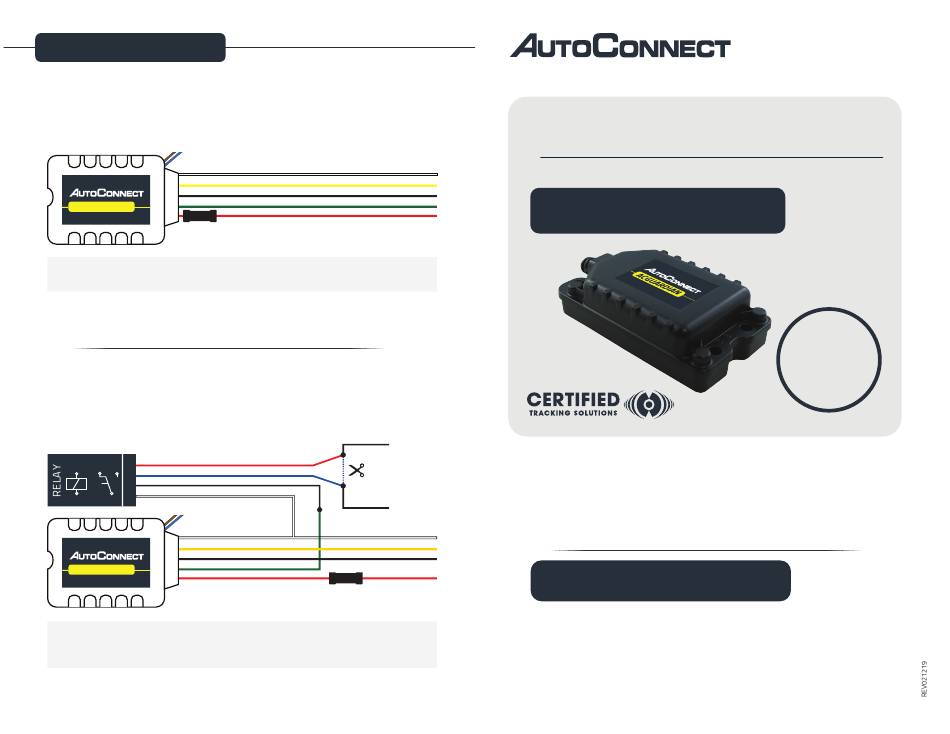

QUICK
INSTALL GUIDE
ACGUARDIAN
MUST BE TESTED!
CALL TO TEST GPS TRACKING DEVICE BEFORE CLOSING UP THE DASH
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE EQUIPMENT AND VOID ITS WARRANTY
1.855.287.4477
8AM - 5PM Monday to Friday MT
CERTIFIED TRACKING SOLUTIONS
12V
ONLY!
