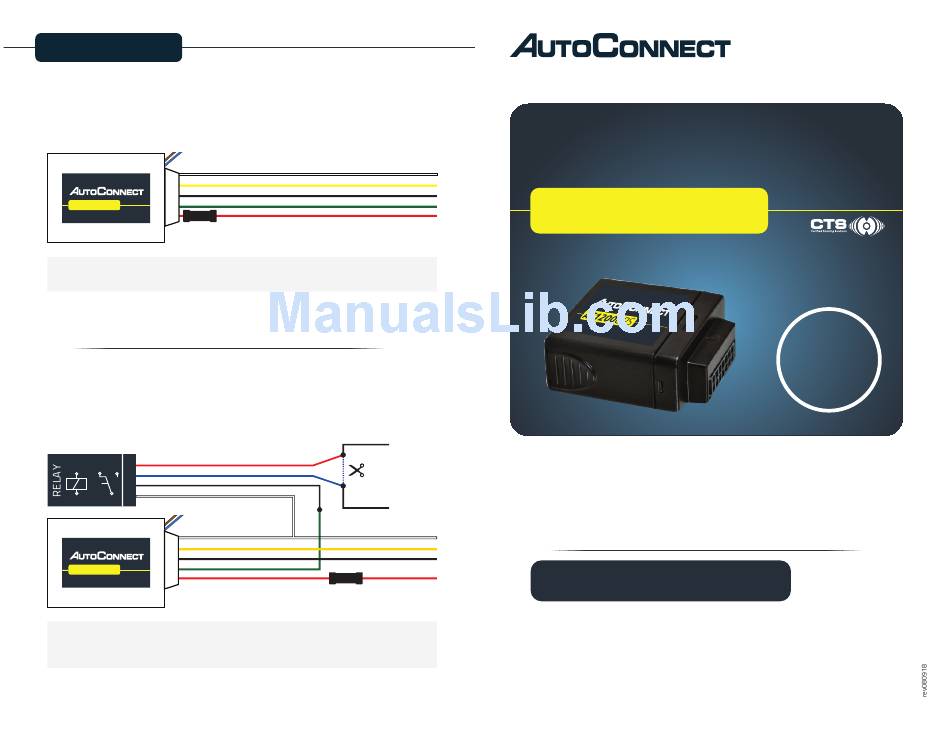

AC1200GPS
Type 1
GPS Only
Brown/Blue - DATA ONLY
DO NOT CONNECT
AC1200GPS
Fuse
1. Connect Red wire to Constant +12V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
Type 2
GPS with Starter Disable
Red
87A
86
87a
87
Blue
30
Black
86
White
85
85
30
Brown/Blue - DATA ONLY
DO NOT CONNECT
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
AC1200GPS
Red (12V+) - Constant
1. Connect Red wire to Constant +12V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
4. Connect Green wire to relay.
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
Red (12V+) - Constant
CUT
Vehicle Start
Interrupt Wire
Fuse
QUICK
INSTALL GUIDE
AC1200GPS
MUST BE TESTED!
CALL TO TEST GPS TRACKING DEVICE BEFORE CLOSING UP THE DASH
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE EQUIPMENT AND VOID ITS WARRANTY
1.855.287.4477
8AM - 5PM Monday to Friday MT
CERTIFIED TRACKING SOLUTIONS
3G
12V
ONLY!
Advertisement
Related Manuals for AutoConnect AC1200GPS
Summary of Contents for AutoConnect AC1200GPS
- Page 1 AC1200GPS Type 1 GPS Only QUICK INSTALL GUIDE Brown/Blue - DATA ONLY DO NOT CONNECT White - Key Ignition Source (+) Yellow: Input 1 (-) OPTIONAL AC1200GPS Black - GND Green - Starter Disable Out (-) AC1200GPS Red (12V+) - Constant Fuse 1.
- Page 2 AC1200GPS Select in-vehicle device location Connect starter disable An appropriate location would be just under the plastic "top skin" of the The device prevents the vehicle from starting by triggering a relay to open dash, just above/behind the cluster and disconnect a "Vehicle Start Interrupt Wire". Starter disable is optional, please check with your supervisor before proceeding.
