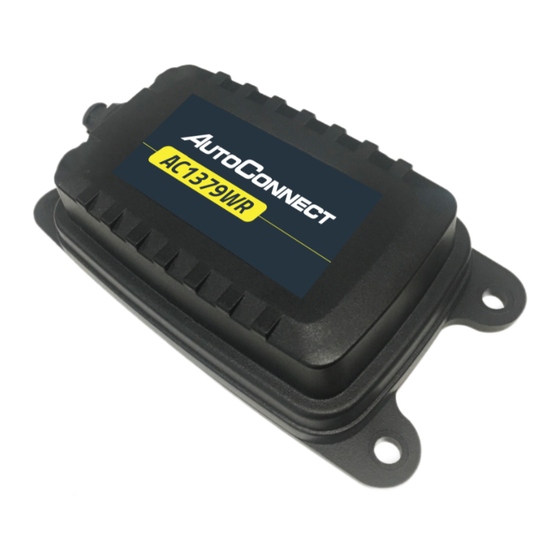

AC1379WR
Type 1
GPS Only
Brown/Blue - DATA ONLY
DO NOT CONNECT
AC1379WR
Fuse

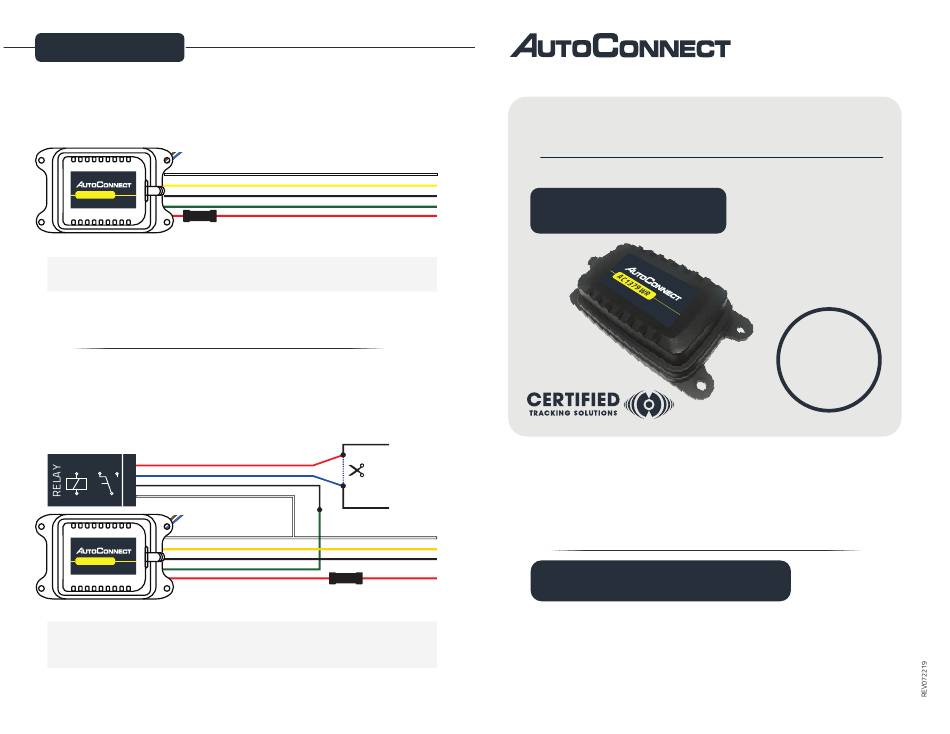

1. Connect Red wire to Constant +12-24V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
Type 2
GPS with Starter Disable (optional)
Red
87A
86
87a
87
Blue
30
Black
86
White
85
85
30
Brown/Blue - DATA ONLY
DO NOT CONNECT
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
AC1379WR
Green - Starter Disable Out (-)
Red (12-24V+) - Constant
1. Connect Red wire to Constant +12-24V and fuse.
2. Connect Black wire to Ground.
3. Connect White wire to True Ignition (+).
4. Connect Green wire to relay.
White - Key Ignition Source (+)
Yellow: Input 1 (-) OPTIONAL
Black - GND
Green - Starter Disable Out (-)
Red (12-24V+) - Constant
CUT
Vehicle Start
Interrupt Wire
Fuse
QUICK
INSTALL GUIDE
AC1379WR
MUST BE TESTED!
CALL TO TEST GPS TRACKING DEVICE BEFORE CLOSING UP THE DASH
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE EQUIPMENT AND VOID ITS WARRANTY
1.855.287.4477
8AM - 5PM Monday to Friday MT
CERTIFIED TRACKING SOLUTIONS
12-24V
Advertisement
Related Manuals for AutoConnect AC1379WR
Summary of Contents for AutoConnect AC1379WR
- Page 1 AC1379WR Type 1 QUICK GPS Only INSTALL GUIDE Brown/Blue - DATA ONLY DO NOT CONNECT White - Key Ignition Source (+) Yellow: Input 1 (-) OPTIONAL AC1379WR Black - GND AC1379WR Green - Starter Disable Out (-) Red (12-24V+) - Constant Fuse 1.
- Page 2 AC1379WR IMPORTANT! Connect starter disable The device is delivered in “Shipment Mode.” To take the device out of The device prevents the vehicle from starting by triggering a relay to open “Shipment Mode,” you must perform the following steps: and disconnect a "Vehicle Start Interrupt Wire". Starter disable is optional, a) Push and hold button for 3 seconds then release the button.
