LOCATION OF EQUIPMENT

ROOM STATIONS

Careful consideration must be given
to present and/or future layout of
furniture so as not to locate stations
in inappropriate positions.
To avoid audio feedback, room
stations should be kept at least 13-
16 ft. away from other stations.
Never have more than one station
in any one room and avoid
mounting stations in the same wall
cavity.
i.e. directly below and above one
another in a two story house.
A suitable height is generally 4'6"
from the floor to the center of the
unit.
Stations located on timber frame
walls should be located adjacent to
a stud to allow for firm fixing.
Stations located on cavity brick
walls will require the installation of
wall boxes.
Stations installed on single brick
walls will also require wall boxes;
however, the cable will need to be
chased and conduited into the brick
wall.
The rear of the brick wall will need
to be rendered or lined as the depth
of a room station is approximately
the same as a brick.
Where stations are required in
bathrooms or laundries, they must
be kept clear of water or steam.
Where stations are mounted on a
tiled surface, a wall box should be
installed prior to lining/tiling of the
walls and the tiles will need to be
cut to the inside dimensions of the
wall box.
Where room stations are mounted
outside and are exposed to the
weather, the fitting of weather proof
covers will be required.
Stations must not be installed in
saunas.

FRONT DOOR/GATE STATION(S)

These stations are best located
adjacent to the front door or at the
front gate at a suggested height of
4'6" and may require a wall box
depending upon the surface to
which they are to be affixed.
Any Station exposed to the weather
will require the fitting of a
weatherproof cover.
Where stations are to be installed in
solid brick or concrete columns at a
front gate, it is required that the
cable be run in conduit from the
station to ground level and back to
the house.

POWER SUPPLY

The power supply is usually located
no less than 6 ft and not more
than 16 ft from the point of
connection at the master. (or from
the point of connection at a room
station if a master has not been
fitted)
Procedure
1) Press the Program button
(PROG) – The red LED illuminates
and the current chime is played.
2) Press the Program button again
to select voltage output option mode
– The red LED flashes the current
output voltage option.
3) Press the Select button (SEL) –
The next output option is displayed.

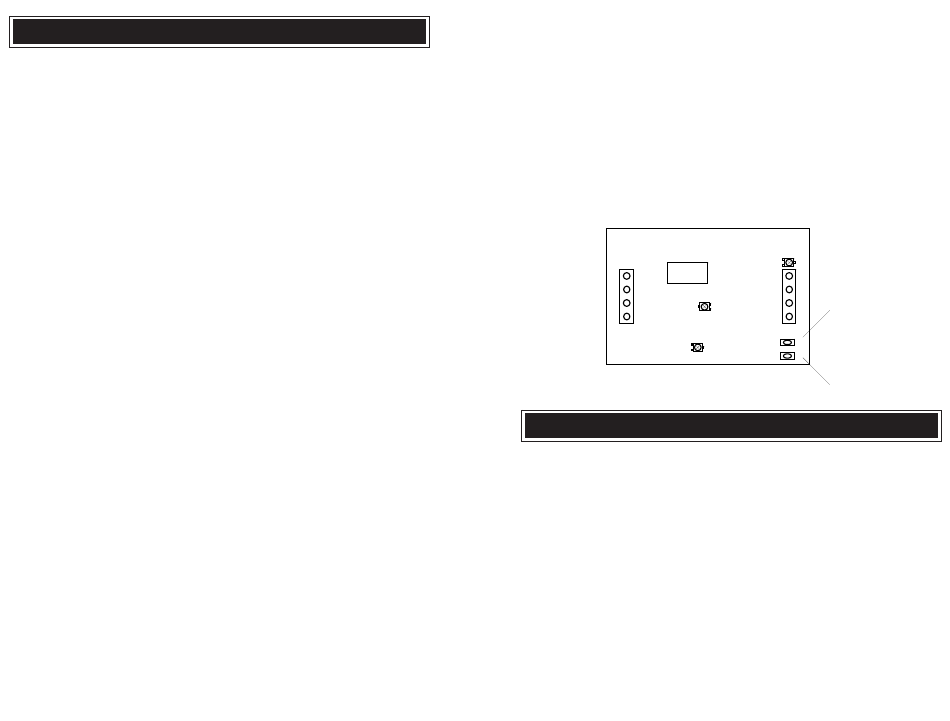

U5
POS
NEG
COM1
VR1
COM2
VR2
SIX WIRE OPERATION USING ROOM STATIONS
Although System One is designed to operate optimally using 8 wire Hook-up, it
will also operate using 6 wire hook-up with the trade off that music will mute at
all stations during private communication. (With 8 wire hook-up music only
mutes at the 2 stations involved in communication)
To operate a system using 6 wire hook-up, the following is required.
Room Stations
• Press "PRIVACY" and
"MONITOR" buttons simultaneously
to enter Program Mode.
• Press "HOUSE" button to select
"6 wire" mode. (Green LED off)
• Press "CLEAR" button to exit
Program Mode.
4) Repeatedly press the Select
button until the desired voltage
output option is displayed.
5) Press the Program button again
to lock in selection and exit program
mode – The red LED extinguishes.
NOTE: Pressing the Select button
after all 3 output options have been
sampled, will result in returning to
the first output option.
VR3
TC
VLC
SHLD
SEL
CH
SEL
PROG
PROG
• Music lines (MUS1 and MUS2)
are omitted. (No wire links
required at Room Stations)
• The station will toggle between 6
wire mode (Green LED off) and 8
wire mode (Green LED on)
each time the "HOUSE" button is
pressed while in program mode.
