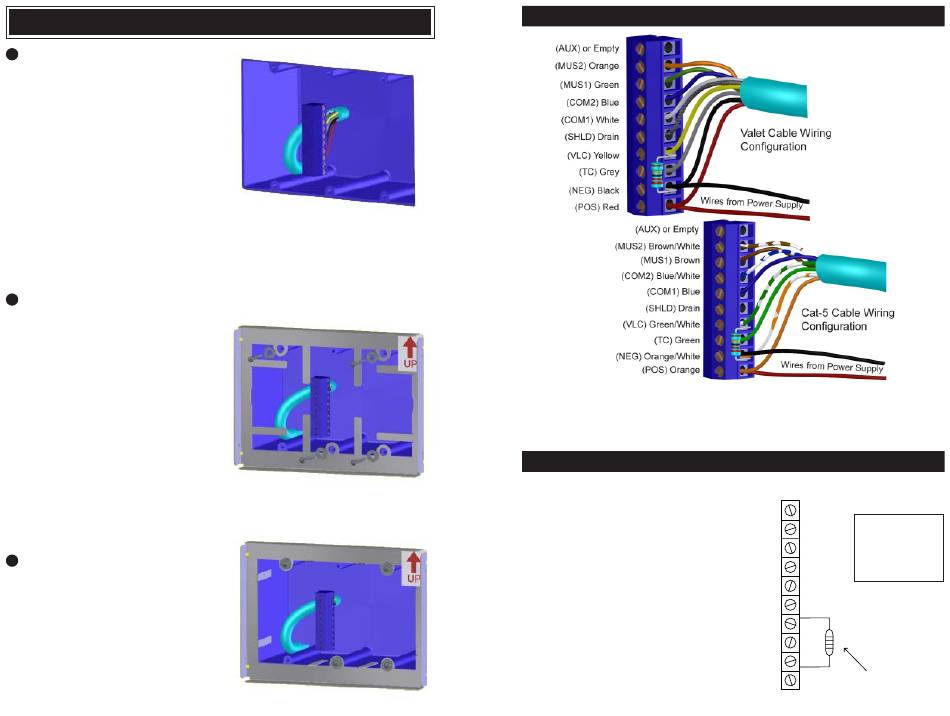

Valet System One MINI Installation Manual page 10

INSTALLATION - FINISH OUT
1
Install the terminal block.
See Fig. 1 for how to wire the
terminal block.
Wiring configurations for Valet
Cable and Cat5 Cable have both
been provided. (Fig. 1b)
Also shown in the figure 1 is the
proper location to install the 220K
resistor. Only one resistor will
need to be installed for the system
and it is recommended that the
resistor is installed at the station
that has the power supply con-
nected to it.
2
Mount the metal bracket to the
3-gang box.
The metal bracket can only be
installed one way.
There is a red "UP" arrow in the
upper right hand corner of the
bracket that indicates which way
the bracket is to be installed.
The metal mounting bracket is to
be secured to the 3-gang box by
the four #6 x 7/8" screws each with
a #6 washer behind the screw.
This allows for 1/16" adjustment
for proper leveling.
Fig. 2
3
Bend the Tabs
The metal mounting bracket has 8
tabs along the interior perimeter of
the bracket.
Once the bracket has been securely
fastened to the 3-gang box, these 8
tabs will need to be bent 90° into
the 3-gang box opening. (Fig. 3)
These tabs are for use in a retro-fit
application.
WIRING CONFIGURATIONS
Fig. 1
CONTROL VOLTAGE LOAD RESISTOR
The fitting of a Load Resistor to the
system is required to balance the
Fig. 2
Voltage Control Line so that
communication is received by the
appropriate station(s).
Although a Load resistor is provided
with each Room Station, only One
Load Resistor is required for an
entire system.
The Load Resistor should be fitted at
the Room power supply has been
connected,across the VLC (YEL)
terminal and the Neg (BLK) terminal.
Fig. 3
Fig. 1b
TERMINATION OF LOAD RESISTOR
VR10
AUX
NOTE: ONE
MUS2
RESISTOR TO
BE FITTED AT
MUS1
ONE STATION
COM2
ONLY
COM1
SHLD
VLC
TC
NEG
POS
