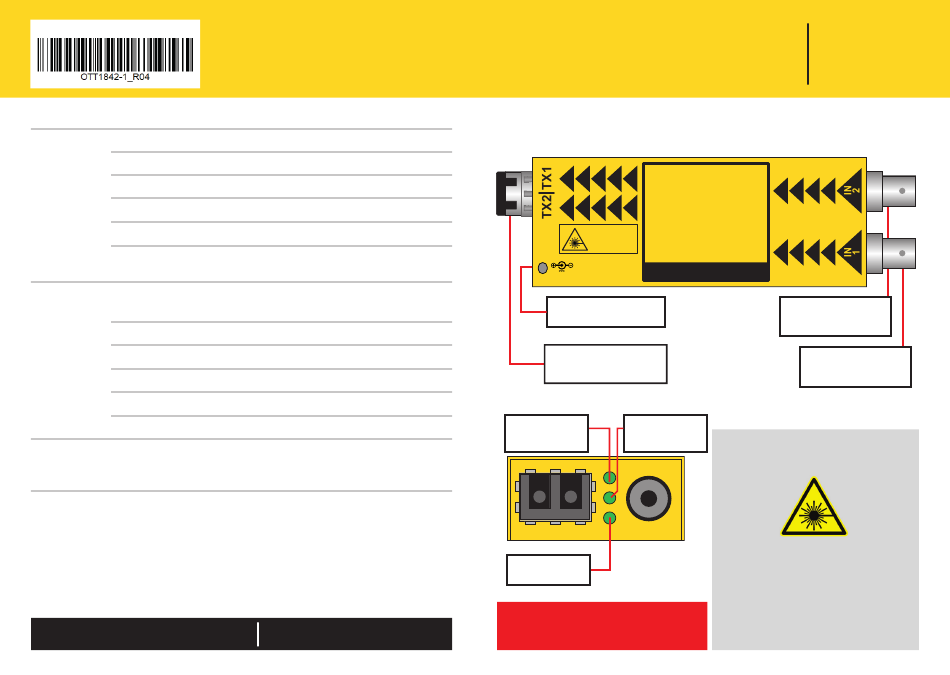

LYNXTechnik Yellobrik OTT 1842-1 Quick Reference

Technical Specifications
SDI
2 x SDI video on 75 Ohm BNC connector
Input
SMPTE 424M, SMPTE 292M, SMPTE 259M
Multi-standard operation from 270Mbit/s to 3Gbit/s
Multirate reclocking 270Mbit/s - 1.5Gbit/s - 3Gbit/s
Return Loss: > 15dB up to 1.5GHz ; > 10dB up to 3GHz
Automatic cable EQ
260m @ 1.5Gbit/s ; 150m @ 3Gbit/s (Belden 1694A cable)
Optical
2 x fiber optic outputs (CWDM)
Duplex (Singlemode) using LC/PC Connections
Outputs
SMPTE 297M - 2006
18 Wavelength selections, in pairs - per ITU-T G.694.2
Optical Power -1dBm (each channel)
2x TX data active LEDs on side of module
Max. distance 40km (24.8 miles) @ 3Gbit/s (Singlemode)
Power
+12V DC @ 1.9W nominal - power supply (included)
( supports external power input from 7 - 24V DC )
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®
OTT 1842-1
Dual Channel 3G SDI to Fiber Transmitter (CWDM)
WARNING
CLASS 1
Laser Product
Power
12V 0V
DC Power Input
LC Fiber Optic
Output
TX1 Data
Active
Power
WARNING: Module laser is active as
soon as power is connected,
regardless of LED indication
Quick
®
Reference
3G
CWDM
Dual SDI to Fiber
Transmitter
LYNXTechnik AG
SDI Video
Input 2
TX2 Data
WARNING
Active
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
SDI Video
Input 1
