Technical Speci cations
SDI Video
1 x SDI video input on 75 Ohm BNC connector
1 x Reclocked loop output on 75 Ohm BNC connector
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Return Loss: > 15dB up to 1.5GHz ; > 10dB up to 3GHz
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Optical
1 x Fiber optic output (LC/PC Connections)
(CWDM - 18 selectable wavelengths - ITU-T G.694.2)
Output
SMPTE 297M - 2006
TX power -1dBm
Max. distance 40km (24.8 miles)
+12V DC @ 1.9W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®
OTX 1842
3G SDI to Fiber Optic Transmitter
WARNING
CLASS 1
Laser Product
Power
12V
0V
DC Power Input
Fiber Optic
Output
TX Data
Present
Power
WARNING: Module laser is active
as soon as power is connected,
regardless of LED indication
Quick
®
Reference
3G
CWDM
SDI to Fiber Optic
Transmitter
LYNXTechnik
AG
SDI Video
Input
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
SDI Video
Loop Out
Advertisement
Table of Contents
Related Manuals for LYNXTechnik Yellobrik OTX 1842
Summary of Contents for LYNXTechnik Yellobrik OTX 1842

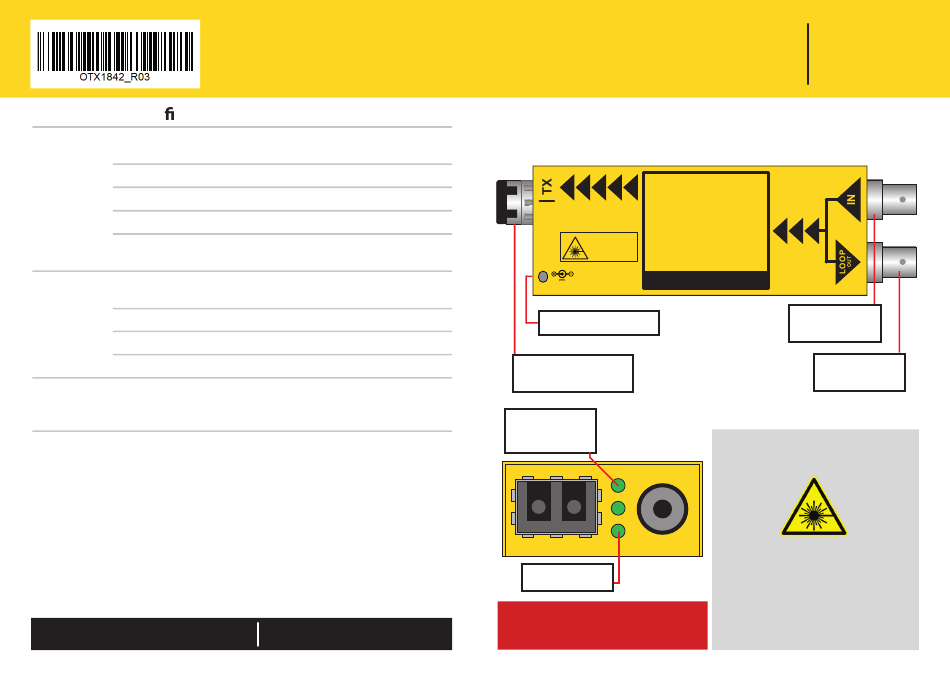

- Page 1 Automatic cable EQ (Belden 1694A cable) CLASS 1 Transmitter Laser Product 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s Power LYNXTechnik Optical 1 x Fiber optic output (LC/PC Connections) (CWDM - 18 selectable wavelengths - ITU-T G.694.2) Output SDI Video...
- Page 2 Connections Power Lead Strain Relief The SDI input and reclocked SDI output are connected to the 75 Ohm The modules have a small hole in the case located above the power BNC connections. The ber connection is made to the singlemode LC connection to prevent the power lead being accidentally pulled out.
