Technical Specifications
Input
2 x SDI video on 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Multirate reclocking
270Mbit/s - 1.48Gbit/s - 2.97Gbit/s
Return Loss: >15dB from 5MHz to 1.5GHz
>10dB from 1.5GHz to 3GHz
Automatic cable EQ (Belden 1694A cable)
340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
Optical
2 x fiber optic outputs
SMF (singlemode) using LC/PC Connectors
Outputs
SMPTE 297M - 2006
Wavelength 1310nm (each channel)
Optical power -5dBm (each channel)
TX active LEDs on side of module
Max. distance 10km (6.2 miles) @ 3Gbit/s (Singlemode)
+12VDC @ 2.5W nominal - (power supply included)
(supports 7 - 16VDC input range)
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®

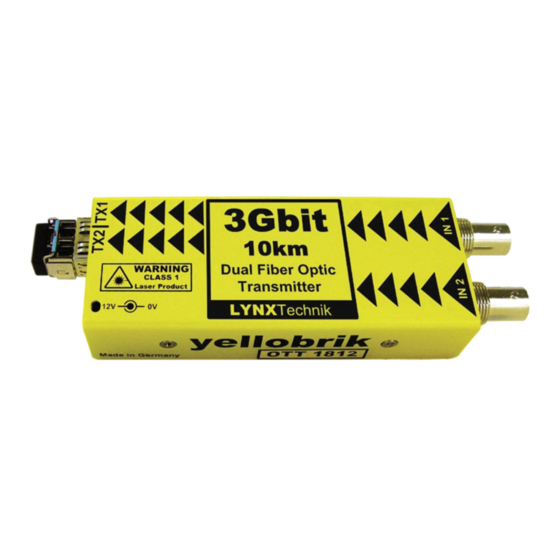

OTT 1812
Dual SD/HD/3G SDI to Fiber Optic Transmitters
DC Power Input
LC Fiber Optic
Outputs (2)
TX 1 Active
Power
Connected
®
LYNXTechnik
AG
WARNING
TX 2 Active
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT

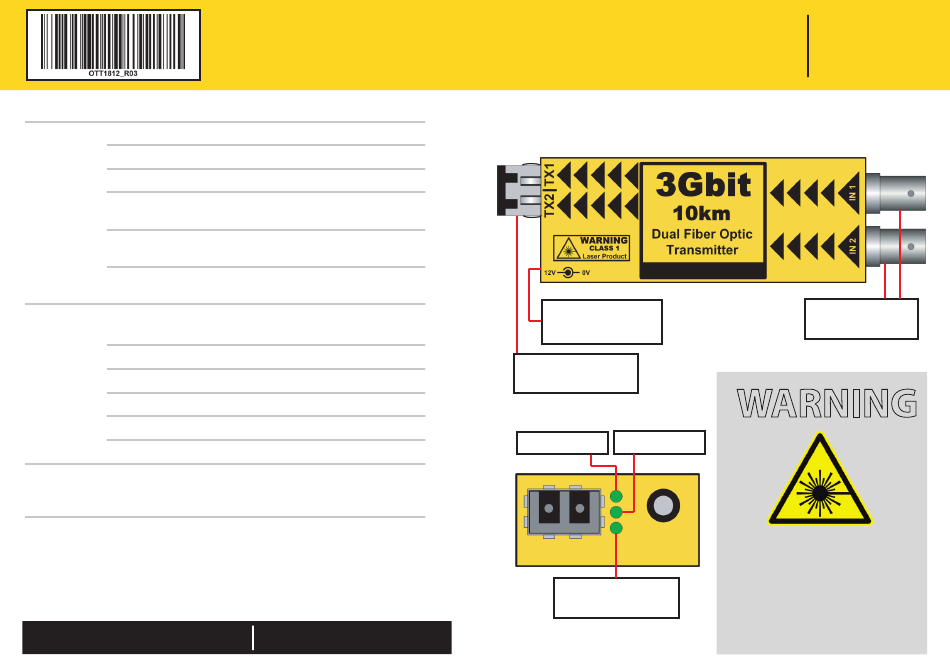

Quick
Reference
SDI Video
Inputs (2)
Advertisement
Table of Contents
Related Manuals for LYNXTechnik Yellobrik OTT 1812
Summary of Contents for LYNXTechnik Yellobrik OTT 1812
- Page 1 Multi-standard operation from 270Mbit/s to 3Gbit/s Multirate reclocking 270Mbit/s - 1.48Gbit/s - 2.97Gbit/s Return Loss: >15dB from 5MHz to 1.5GHz >10dB from 1.5GHz to 3GHz LYNXTechnik Automatic cable EQ (Belden 1694A cable) 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s SDI Video Optical...
- Page 2 Connections Power Lead Strain Relief The SDI video input is connected to the 75 Ohm BNC connections (up The module has a small hole in the case located above the power to 3Gbit). The ber connection is LC Duplex SMF (Singlemode). An connection to prevent the power lead being accidentally pulled out.
