LYNXTechnik Yellobrik OTT 1412 Quick Reference

Technical Specifications
Input 2 x SDI video on 75 Ohm BNC connectors
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Multirate reclocking
1.5Gbit/s - 3Gbit/s - 6Gbit/s - 12Gbit/s
Return Loss: >15dB from 5MHz to 1.5GHz
>10dB from 1.5GHz to 3GHz
Automatic cable EQ (Belden 1694A cable)
260m @ 1.5bit/s, 150m @ 3Gbit/s, 80m @ 12Gbit/s & 6Gbit/s
Optical
2 x fiber optic outputs
SMF (singlemode) using LC/PC Connectors
Outputs
SMPTE 297M - 2006
Wavelength 1310nm (each channel)
Optical power -5.5dBm to +0.5dBm (each channel)
TX active LEDs on side of module
Max. distance 10km (6.2 miles) @ 12Gbit/s (Singlemode)
Power +12VDC @ 2.5W nominal - (power supply included)
(supports 7 - 24VDC input range)
Power LED on side of module
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®

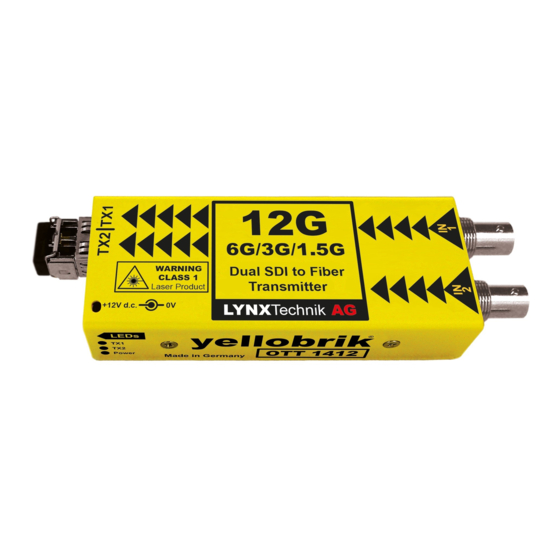

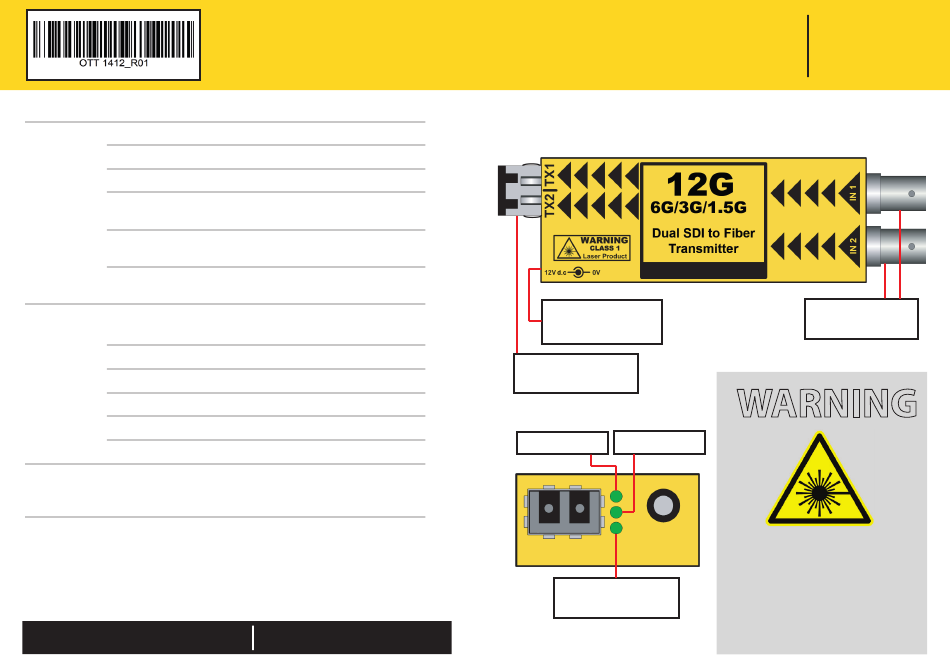

OTT 1412
Dual Channel 12Gbit SDI to Fiber Transmitter
DC Power Input
LC Fiber Optic
Outputs (2)
TX 1 Active
Power
Connected
®
LYNXTechnik AG
WARNING
TX 2 Active
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
Quick
Reference
SDI Video
Inputs (2)
