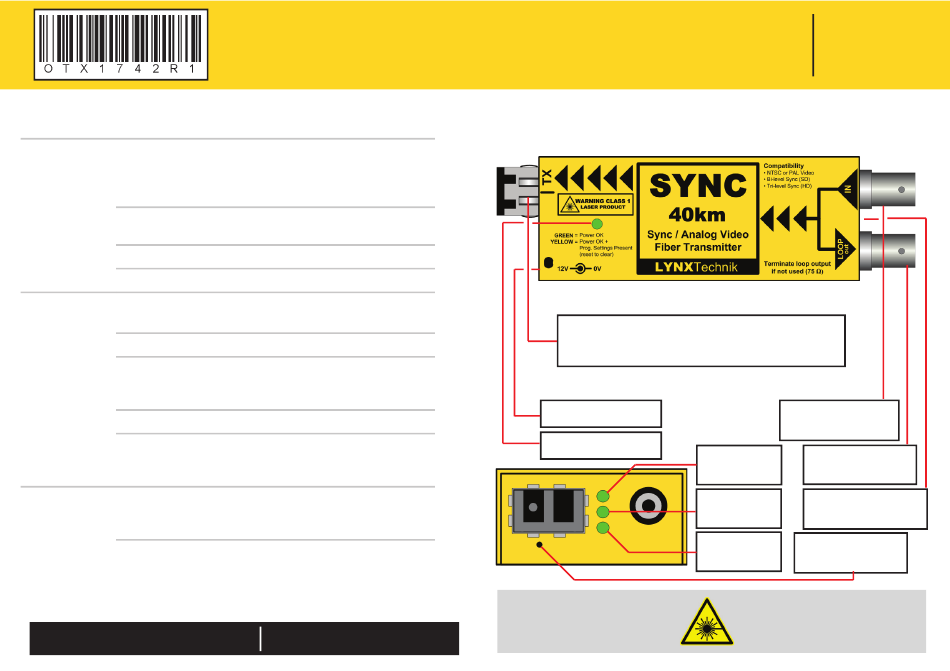

LYNXTechnik Yellobrik OTX 1742 Quick Reference

Technical Specifications
Analog Input Sync = analog black burst / SDTV bi-level / HDTV tri-level
Video = NTSC / PAL Composite video
1 x passive loop output (terminate if not used)
75 Ohm BNC connectors
NTSC SMPTE 170M, PAL CCIR624
Analog tri-level sync SMPTE ST 274, ST 276
Multi-standard operation, auto-detect
Return loss: 31dB to 10MHz
Fiber Out 1 x fiber optic singlemode output (CWDM)
LC connection
Singlemode
SMPTE 297M - 2006
18 Wavelength selections per ITU-T G.694.2
1270,1290,1310,1330,1350,1370,1390,1410,1430,1450,1470,
1490,1510,1530,1550,1570,1570,1590,1610nm
Fiber TX active LED on side of module
Max. distances:
OH-TX-4-xxxx SFP option = 40km (24.8 miles - approx)
OH-TX-8-xxxx SFP option = 80km (49.6 miles - approx)
Power +12VDC power supply (included)
Power LED on side of module
Power consumption: 5W
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
yellobrik
AG
®
Broadcast Television Equipment
yellobrik
®
OTX 1742
Sync / Analog Video Fiber Transmitter
(18 Wavelength Selections)
DC Power Input
Status LED
WARNING WARNING
CLASS 1M LASER PRODUCT
®
Fiber Output - CWDM
Analog (SD) Video
or Sync Input
SDTV Mode
(Video/Sync) (terminate if not used)
HDTV Mode
(Sync)
(F/W updates + control)
Fiber
Factory Reset
TX Active
(through hole)
LASER RADIATION
Do not view directly with
optical instruments
Quick
Reference
Loop Output
USB Port
