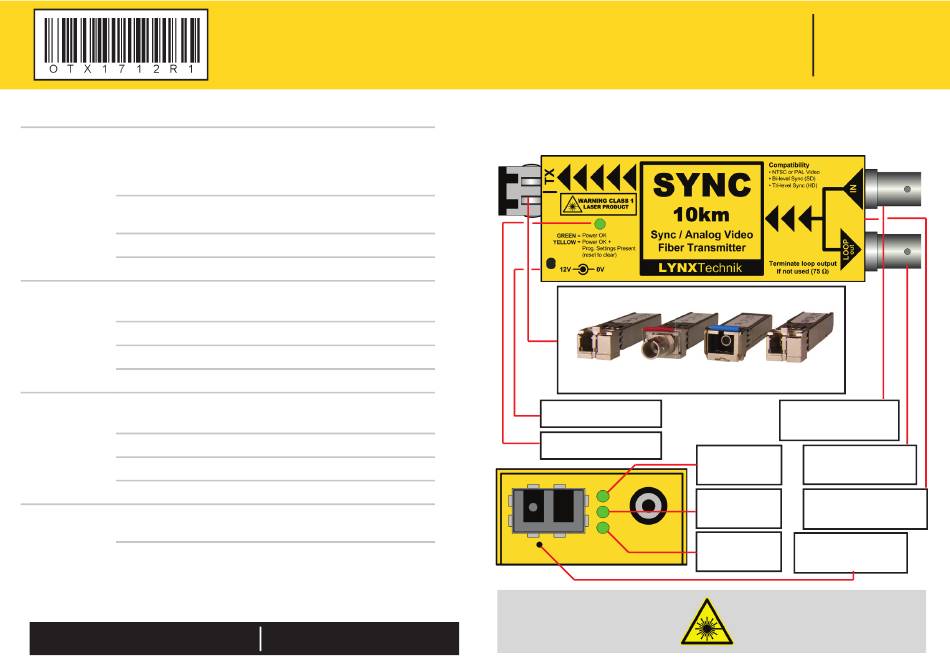

LYNXTechnik Yellobrik OTX 1712 Quick Reference

Technical Specifications
Analog Input Sync = analog black burst / SDTV bi-level / HDTV tri-level
Video = NTSC / PAL composite video
1 x passive loop output (terminate if not used)
75 Ohm BNC connectors
NTSC SMPTE 170M, PAL CCIR624
Analog tri-level sync SMPTE ST 274, ST 276
Multi-standard operation, auto-detect
Return loss: 31dB to 10MHz
Fiber Out
1 x fiber optic singlemode output
LC, ST or SC connection
Singlemode
SMPTE 297M - 2006
Wavelength: 1310nm, Optical power -5dBm
Max. distance: 10km (6.2 miles - approx)
Fiber Out 1 x fiber optic multimode output
LC connection
Multimode
SMPTE 297M - 2006
Wavelength: 850nm, Optical power -5dBm
Max. distance: 300m (984feet - approx)
Power +12VDC power supply (included)
Power consumption: 5W
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
yellobrik
AG
®
Broadcast Television Equipment
yellobrik
®
OTX 1712 (LC,ST,SC,MM)
Sync / Analog Video Fiber Transmitter
Fiber Output - Four options are available
LC
Singlemode
DC Power Input
Status Led
WARNING WARNING
CLASS 1M LASER PRODUCT
®
ST
SC
LC
Singlemode
Singlemode Multimode
Analog (SD) Video
or Sync Input
SDTV Mode
(Video/Sync) (terminate if not used)
HDTV Mode
(Sync)
(F/W updates + control)
Fiber
Factory Reset
TX Active
LASER RADIATION
Do not view directly with
optical instruments
Quick
Reference
Loop Output
USB Port
(through hole)
