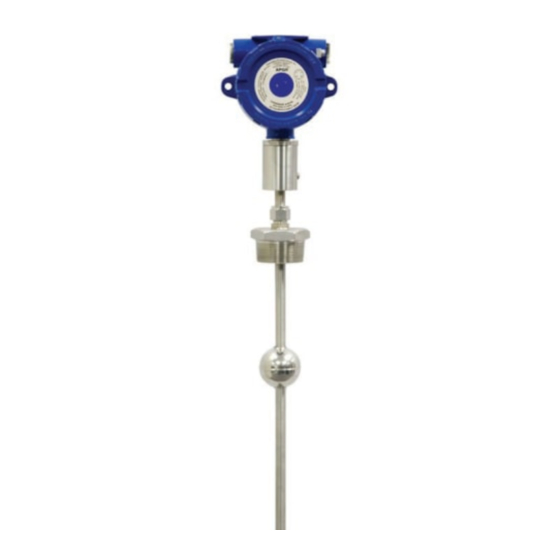

- Page 1 MPI Magnetostrictive Level Sensors User Manual For The MPI-E, MPI-E Chemical, and MPI-R Intrinsically Safe Doc #9005622 Part #200336 Rev B, 06/2022...
-
Page 2: Table Of Contents
Removal Instructions ........................12 Chapter 3: Programming ..................13 Modbus Programming ........................13 Modbus Programming with RST-6001 and APG Modbus Software ........13 Modbus Register Lists For MPI-E/R ..................13-14 MPI-E/R Modbus Sensor Parameters ................... 15-19 MPI-E/R Modbus Application Type Parameters ............... 20-24 Chapter 4: Maintenance ...................25... -
Page 3: Introduction
The MPI-R’s large, buoyant, and robust floats allow it to be used in harsh applications where fouling or buildup might otherwise be of concern. The smaller, lighter weight floats of the MPI-E allow it to be used in applications where space is limited. -
Page 4: Warranty And Warranty Restrictions
Warranty and Warranty Restrictions This product is covered by APG’s warranty to be free from defects in material and workmanship under normal use and service of the product for 24 months. For a full explanation of our Warranty, please visit https://www.apgsensors.com/about-us/terms-conditions. -
Page 5: Chapter 1: Specifications And Options
Chapter 1: Specifications and Options • Dimensions MPI-E Sensor and Float Dimensions 5.71” Note: 4.92” 4.21” 3/4” NPT 5.00” For dual dimensions, large 3.74” 1/2” NPT housing dimensions are 4.25” 3/4” NPT above small housing 1/2” NPT dimensions. Housing Connection 4.94”... -
Page 6: Dimensions
MPI-E Chemical Sensor and Float Dimensions 5.71” 4.92” 4.21” 5.00” Note: 3.74” 3/4” NPT 3/4” NPT 4.25” For dual dimensions, large housing dimensions are Housing above small housing Connection dimensions. Location 4.94” 4.15” 7.07” Ø 0.27” 6.28” 2.13” ZERO REFERENCE... - Page 7 MPI-R Sensor and Float Dimensions 5.71” Note: 4.92” For dual dimensions, large 4.21” 3/4” NPT 5.00” housing dimensions are 3.74” 1/2” NPT 4.25” 3/4” NPT above small housing dimensions. 1/2” NPT Housing Connection 4.94” Location 4.15” 6.84” - 6.97” Ø 0.27” 6.05”...
-
Page 8: Specifications
MPI-E Chem: 30 PSIA @ 70° F (21° C) Electrical Supply Voltage 8-24 VDC on sensor Typical Current Draw 24 mA (MPI-E) 25 mA (MPI-R) Protection Reverse Polarity and Surge (per IEC 61000-4-5, 4-6, 4-7) Materials of Construction Housing Cast aluminum, epoxy coated... -
Page 9: Mpi-E Model Number Configurator
• MPI-E Model Number Configurator Model Number: MPI - _E_ __5__ _____ - _____ _____ - _____ _____ _____ __B__ - _____ - _____ - _____ I. Stem Finish Material A. Stem Type □ 316L SS □ 0.5 in. diameter, rigid J. -
Page 10: Mpi-E Chemical Model Number Configurator
Model Number: MPI - _E_ __5__ _____ - __G__ __N__ - __P__ __2__ __W__ __E__ - _____ - _____ - _____ I. Stem Finish Material A. Stem Type □ ETFE Fluon Coating □ 0.5 in. diameter, rigid J. Total Stem Length in Inches B. -
Page 11: Mpi-R Model Number Configurator
Model Number: MPI - _R_ __5__ _____ - _____ _____ - _____ _____ _____ __B__ - _____ - _____ - _____ I. Stem Material A. Stem Type □ 316L SS □ 1 in. diameter, rigid J. Total Stem Length in Inches B. -
Page 12: System Wiring Diagrams And Is Use Case Diagrams
Otherwise, wire directly. Otherwise, wire directly. Otherwise, wire directly. USB to computer Equivalent 120 Ω with APG Modbus terminating resistor software internal to RST-6001 MPI sensor MPI sensor MPI sensor Note: An independent +8-24 Vdc... - Page 13 MPI - MDI Use Case Diagram Hazardous Area Zone 1 Modbus Address: Server Controling: Sensor 1 Zone 0 or Zone 1 MPI Sensor Modbus Address: 1 Single MDI controlling a single MPI sensor • MDI is located in Zone 1 area. MPI can be in Zone 0 or Zone 1 without additional barriers. •...
-
Page 14: Chapter 2: Installation And Removal Procedures And Notes
• The float(s) fit through the mounting hole. If the float(s) does/do not fit, it/they must be mounted on the stem from inside the vessel being monitored. • The float(s) is/are oriented properly on the stem (See Figure 2.1). MPI-E floats will be installed by the factory. MPI-R floats are typically installed by customer. -
Page 15: Physical Installation Instructions
• For sensors with float stops, refer to the assembly drawing included with the sensor for float stop installation locations. • For MPI-E Chemical, ensure probe is concentric with fitting so as not to scrape chemical resistant coat- ing off against threads of fitting. -
Page 16: Electrical Installation
• Electrical Installation • Remove the housing cover of your MPI. • Feed system wires into MPI through conduit openings. Fittings must be UL/CSA Listed for CSA installation and IP65 Rated or better. • Connect wires to MPI terminals. Use crimped ferrules on wires, if possible. •... -
Page 17: Chapter 3: Programming
Sensor default transmission settings are 9600 Baud, 8 Bits, 1 Stop Bit, No Parity, and require a minimum delay of 300 ms between transactions. See MPI-E/R Modbus Register Lists on pages 13 and 14. NOTE: For more information about Modbus RTU, please visit www.modbus.org. - Page 18 0, 1, 2, 3, 4 40201 Restore to Factory Defaults *These registers are not used by the MPI-E/R, even though they are labeled in the APG Modbus software. †Setting is factory calibrated. Do not adjust. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
-
Page 19: Mpi-E/R Modbus Sensor Parameters
10 = Horizontal Oval Tank 11 = Strapping Chart See MPI-E/R Modbus Application Type Parameters pages 20-24. 40403 - Volume Units Determines the units of measure for the calculated reading when Application Type is set to 2 - 6 or 9 -11. - Page 20 40405 - Maximum Distance (Factory Calibrated) Sets the distance (beginning from the Zero Reference) to the point where the sensor will stop looking for float signals, usually the bottom of the stem. A float beyond the Maximum Distance value will not be detect- 40406 - Full Distance Sets the positive distance (beginning from the sensor Zero Reference) to the point where the monitored vessel is considered full.
- Page 21 40413 - Filter Window Determines the physical range (0 - 10,364 mm) of qualified received signals, based on the current raw reading. Signals beyond the +/- Filter Window range of the current reading will not qualify unless the average moves. Signals outside the extents of the Filter Window are written to the Out of Range samples buffer (Holding Register 40414).
- Page 22 40420 - Temperature Select Selects the temperature sensor reading to be displayed in Input Register 30302. MPI-E/R sensors can accomodate up to seven digital temperature sensors in the stem. 0 = Average of sensors A - G 1 = Digital Temperature Sensor A...
- Page 23 40446 - Baud Rate Selects the communication speed between the sensor and the Server Device. All devices on the network must use the same Baud Rate. APG Modbus Server and Client devices default to 9600 Baud. 0 = 9600 1 = 19200...
-
Page 24: Mpi-E/R Modbus Application Type Parameters
• MPI-E/R Modbus Application Type Parameters Application 0 - Distance Register Function Value Range 40400 Device Address 1 to 247 40401 Units 1 = Feet, 2 = Inches, 3 = Meters 40402 Application Type 40403 Volume Units 40404 Decimal (Calculated) - Page 25 Application 3 - Volume of Standing Cylindrical Tank ± Conical Bottom Register Function Value Range Diameter 40400 Device Address 1 to 247 40401 Units 40402 Application Type 40403 Volume Units 1 - 7 40404 Decimal (Calculated) 0 - 3 40405 Max Distance (factory set) 40406...
- Page 26 Application 5 - Volume of Horizontal Cylindrical Tank ± Hemispherical Ends Register Function Value Range 40400 Device Address 1 to 247 40401 Units 40402 Application Type 40403 Volume Units 1 - 7 40404 Decimal (Calculated) 0 - 3 40405 Max Distance (factory set) 40406 Full Distance...
- Page 27 Application 7 - Pounds (Linear Scaling) Register Function Value Range 40400 Device Address 1 to 247 40401 Units 1 = Feet, 2 = Inches, 3 = Meters 40402 Application Type 40403 Volume Units 40404 Decimal (Calculated) 0 - 3 40405 Max Distance (factory set) 40406...
- Page 28 Application 10 - Volume of Horizontal Oval Tank Register Function Value Range 40400 Device Address 1 to 247 40401 Units 40402 Application Type 40403 Volume Units 1 - 7 40404 Decimal (Calculated) 0 - 3 40405 Max Distance (factory set) 40406 Full Distance 0 - 32,768 mm...
-
Page 29: Chapter 4: Maintenance
• Repair and Returns The MPI-E Chemical’s chemical resistant coating is a durable thermoplastic. This means that if damage occurs, repair is possible: • Use a heat gun on a low setting to heat the damaged location until coating becomes soft and mallea- ble. -
Page 30: Chapter 5: Hazardous Location Installation And Certification
Chapter 5: Hazardous Location Installation and Certification • Intrinsically Safe Installation Drawing for Hazardous Locations Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com... -
Page 31: Csa Certificate Of Compliance
• CSA Certificate of Compliance Certificate of Compliance Certificate: Master Contract: 70219727 237484 Project: Date Issued: 80042317 2020-11-24 Issued To: Automation Products Group Inc 1025 West 1700 North Logan, Utah, 84321 United States Attention: Alex Fullmer The products listed below are eligible to bear the CSA Mark shown with adjacent indicators 'C' and 'US' for Canada and US or with adjacent indicator 'US' for US only or without either indicator for Canada only. - Page 32 Certificate: 70219727 Master Contract: 237484 Project: 80042317 Date Issued: 2020-11-24 The MPI series utilizes a configurator style model coding system as defined below: Conditions of Certification: 1. Under certain extreme circumstances, the non-metallic parts incorporated in the enclosure of this equipment may generate an ignition-capable level of electrostatic charge.
- Page 33 Certificate: 70219727 Master Contract: 237484 Project: 80042317 Date Issued: 2020-11-24 CLASS - C2258-03 - PROCESS CONTROL EQUIPMENT - Intrinsically Safe and Non - Incendive Systems - For Hazardous Locations CLASS - C2258-83 - PROCESS CONTROL EQUIPMENT-Intrinsically Safe and Non-Incendive - Systems-For Hazardous Locations-Certified to U.S.
- Page 34 Certificate: 70219727 Master Contract: 237484 Project: 80042317 Date Issued: 2020-11-24 Conditions of Certification: 1. Under certain extreme circumstances, the non-metallic parts incorporated in the enclosure of this equipment may generate an ignition-capable level of electrostatic charge. Therefore, the equipment shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces.
-
Page 35: Iecex Certificate Of Conformity
• IECEx Certificate of Conformity IECEx Certificate of Conformity INTERNATIONAL ELECTROTECHNICAL COMMISSION IEC Certification System for Explosive Atmospheres for rules and details of the IECEx Scheme visit www.iecex.com Certificate No.: IECEx SIR 19.0026X Page 1 of 4 Certificate history: Issue 0 (2019-03-22) Current Status: Issue No: 1... - Page 36 IECEx Certificate of Conformity IECEx SIR 19.0026X Certificate No.: Page 2 of 4 Date of issue: 2021-03-11 Issue No: 1 Manufacturer: Automation Products Group 1025 West 1700 North Logan Utah 84321 United States of America Additional manufacturing locations: This certificate is issued as verification that a sample(s), representative of production, was assessed and tested and found to comply with the IEC Standard list below and that the manufacturer's quality system, relating to the Ex products covered by this certificate, was assessed and found to comply with the IECEx Quality system requirements.This certificate is granted subject to the conditions as set out in IECEx Scheme Rules, IECEx 02 and Operational Documents as amended...
- Page 37 IECEx Certificate of Conformity Certificate No.: IECEx SIR 19.0026X Page 3 of 4 Date of issue: 2021-03-11 Issue No: 1 EQUIPMENT: Equipment and systems covered by this Certificate are as follows: The MPI / MPXI Series Magnetostrictive Level sensor is used for level readings of liquid level measurement applications. The device transmits an electrical pulse down a ferromagnetic wire which, when encountering a magnetic field, causes a torsion on the wire, resulting in part of the transmitted pulse being reflected back up the wire.
- Page 38 IECEx Certificate of Conformity Certificate No.: IECEx SIR 19.0026X Page 4 of 4 Date of issue: 2021-03-11 Issue No: 1 DETAILS OF CERTIFICATE CHANGES (for issues 1 and above) This issue, Issue 1, recognises the following changes; refer to the certificate annex to view a comprehensive history: Modifications to model MPI with RS485 communication option;...
- Page 39 Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
- Page 40 Automation Products Group, Inc. Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • sales@apgsensors.com...
