IP65 Digital Pressure Gauge
Series PG2 Installation Guide
Thank You
business and trust. Please take a moment to familiarize yourself with the product and this manual
before installation.
Table of Contents
1.Description
2. How To Read Your Label
3. Warranty
Description
1

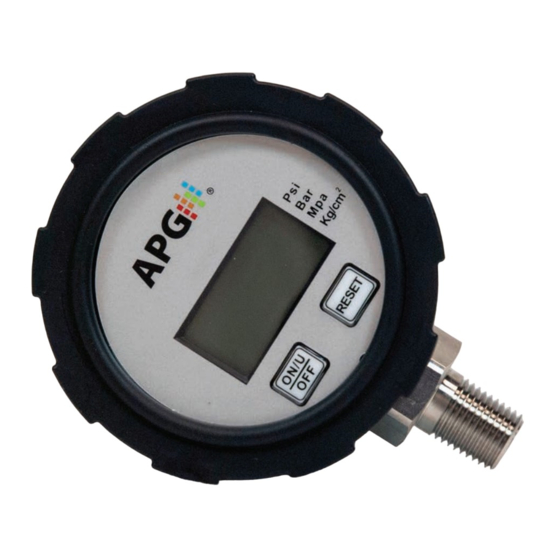

The series PG2 IP65 digital pressure gauge measures gas and liquid pressure with high accuracy
at an affordable price. Its rugged weatherproof design stands up to outdoor and industrial
environments. The 4-digit backlit display with four selectable units makes readings easily visible
to prevent reading errors. The PG2 comes with 304L stainless steel wetted material for a wide
range of compatible liquids and gases.
How To Read Your Label
2
Each label comes with a full model number, a part number, and a serial number. The model
number for the PG2 will look something like this:
The model number correlates with all the configurable options and tells you exactly what
you have. Compare the model number to the options on the datasheet to identify your exact
configuration. You can also call us with the model, part, or the serial number and we can help
you.
Warranty
3
Consult factory for warranty information.
Mounting Instructions
4
Mounting your digital pressure gauge is easy if you follow a few simple steps:
• Never over-tighten the sensor. This can compress the diaphragm, changing how it reacts
to pressure. In all cases, tighten the sensor as little as possible to create an adequate seal.
• Always use thread tape or sealant compound on tapered threads. Wrap thread tape in
the opposite direction of the threads so it does not unravel as you screw the sensor into
place. Unraveling can cause uneven distribution and seal failure.
• Always start screwing in your sensor by hand to avoid cross-threading. Thread failure can
be a problem if you damage threads by over-tightening them or by crossing threads.
1.800.544.2843
Thanks for purchasing a PG2 digital pressure gauge from us! We appreciate your
4. Mounting Instructions
6. Button Functions/
Operations
SAMPLE:
PG2-0200
www.calcert.com
15
10
20
5
25
0
30
APG
R
sales@calcert.com
Advertisement
Table of Contents
Related Manuals for APG PG2 Series
Summary of Contents for APG PG2 Series
- Page 1 IP65 Digital Pressure Gauge Series PG2 Installation Guide Thank You Thanks for purchasing a PG2 digital pressure gauge from us! We appreciate your business and trust. Please take a moment to familiarize yourself with the product and this manual before installation. Table of Contents 1.Description 4.
- Page 2 Dimensions 1.657" ø3.145" [ø79 .87mm] [42.10mm] 3.720" [94.48mm] 7/8" HEX 1/4"-18 NPT FITTING Button Functions / Operations – On/Off/Unit Change – Reset Zero/Backlight On/Off/Unit Change Button: Press to turn on gauge. Press to cycle through units on right side of display. Press and hold for three seconds to turn off gauge.
- Page 3 General Care Your digtal pressure gauge is very low maintenance and will need little care, as long as it was installed correctly. However, in general, you should: • Keep the gauge and the area around it generally clean. • Avoid applications for which the gauge was not designed, such as extreme temperatures, contact with incompatible corrosive chemicals, or other damaging environments.
