Alarm.Com ADC-CSVR2000P Installation Manual

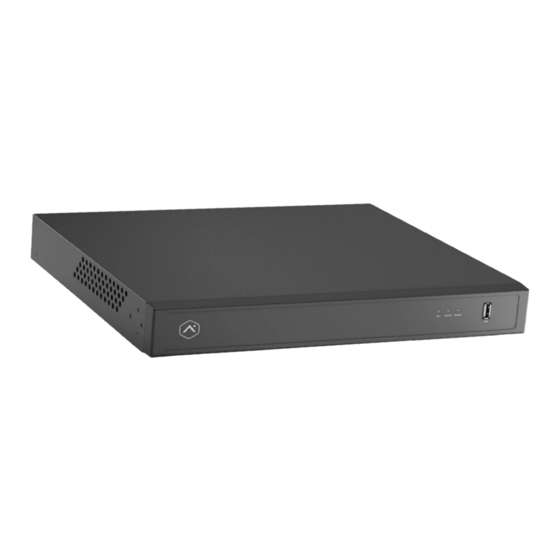

Commercial stream video recorder
Hide thumbs
Also See for ADC-CSVR2000P:
- Installation instructions (5 pages) ,
- Quick start manual (3 pages) ,
- Manual (2 pages)
Related Manuals for Alarm.Com ADC-CSVR2000P
Summary of Contents for Alarm.Com ADC-CSVR2000P
- Page 1 Commercial Stream Video Recorder Installation Guide ADC-CSVR2000P / ADC-CSVR2008P / ADC-CSVR2016P...
-
Page 3: Pre-Installation Checklist
Ethernet connection to broadband internet (Cable, DSL or Fiber Optic) • An Alarm.com customer account with a service package that supports the Pro Series CSVR • Login and password for the Alarm.com account to which you will add the Pro Series CSVR... - Page 4 ❷ ❻ Status LED Power switch Camera RJ45 port ❸ ❼ Power LED HD Out ports RJ45 PoE Ports ❹ ❽ USB port USB ports ❶ ❷ ❸ ❹ front (same on all devices) ❼ ❽ ❾ ❺ back (ADC-CSVR2000P)
- Page 5 ❺ ❻ ❼ ❽ ❾ back (ADC-CSVR2008P) ❺ ❻ ❼ ❽ ❾ back (ADC-CSVR2016P)
- Page 6 Recommended networking diagram for CSVR2000P Router to CSVR Client port CSVR Camera port to dedicated PoE switch PoE switch to Alarm.com PoE cameras...
- Page 7 Recommended networking diagram for CSVR2008P/CSVR2016P Router to CSVR Client port CSVR PoE ports to Alarm.com PoE cameras Alarm.com recommends using our Pro Series PoE Cameras with the Pro Series CSVR.
-
Page 8: Led Guide
LED guide Network LED Status LED Blinking green Solid green Client uplink active Connected to Alarm.com Not illuminated Blinking green Client uplink inactive Local network connection Power LED Solid red No connection Solid green Powered on Not illuminated Booting or powered off... - Page 9 Customer Website a) Using a web browser, enter the following URL: www.alarm.com/addcamera. You will need the customer’s username and password to log in to the Customer Website. b) Select the Pro Series CSVR from the video device list or enter its MAC address to begin adding the device.
-
Page 10: Mounting The Device To A Rack
Mounting the device to a rack The CSVR20xxP can be mounted to a standard server rack using the included rack mount kit. The rack mounts are designed to fit into a 1U (rack unit) area. The kit includes the screws needed to attach the rack mount ears to the device, but does not include the screws needed to mount the device into a rack. - Page 11 ❸ Using server rack screws (not included), attach the brackets to each side of the server rack. ❹ Ensure that there is at least 10 in (25 cm) behind the device for proper airflow.
- Page 12 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Rated: ADC-CSVR2000P - 12Vdc, 5A, 60W ADC-CSVR2008P - 100-240Vac, 60-50Hz, 3.5A, 200W ADC-CSVR2016P - 100-240Vac, 60-50Hz, 6-3A, 280W •...
- Page 13 Notes...
- Page 14 Notes...
- Page 16 8281 Greensboro Drive Suite 100 © 2021 Alarm.com. All rights reserved. Tysons, VA 22102 210702 | Made in Taiwan...
