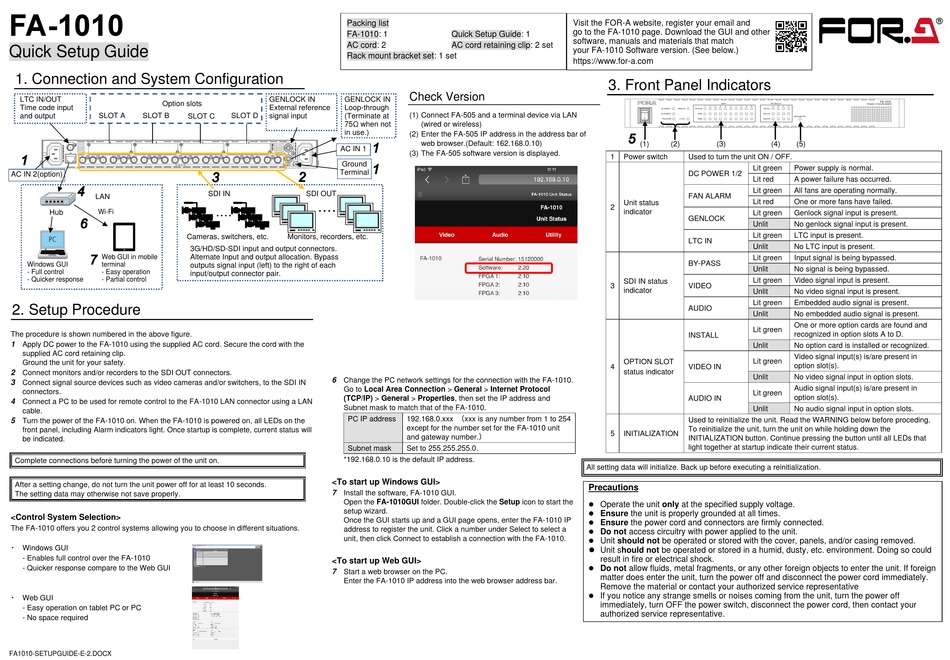

FOR-A FA-1010 Quick Setup Manual page 2

FA-1010
Quick Setup Guide
1. Connection and System Configuration
LTC IN/OUT
Option slots
Time code input
SLOT A SLOT B
and output SLOT C
LTC IN / OUT A B
LAN
IN 1 OUT 1 IN 2 OUT 2 IN 3 OUT 3 IN 4 OUT 4 IN 5 OUT 5 IN 6
3G / HD / SD - SDI
AC IN 2(option)
LAN
Hub Wi-Fi
Cameras, switchers, etc.
Web GUI in mobile
Windows GUI terminal
- Full control - Easy operation
- Quicker response - Partial control
2. Setup Procedure
The procedure is shown numbered in the above figure.
1 Apply DC power to the FA-1010 using the supplied AC cord. Secure the cord with the
supplied AC cord retaining clip.
Ground the unit for your safety.
2 Connect monitors and/or recorders to the SDI OUT connectors.
3 Connect signal source devices such as video cameras and/or switchers, to the SDI IN
connectors.
4 Connect a PC to be used for remote control to the FA-1010 LAN connector using a LAN
cable.
5 Turn the power of the FA-1010 on. When the FA-1010 is powered on, all LEDs on the
front panel, including Alarm indicators light. Once startup is complete, current status will
be indicated.
Complete connections before turning the power of the unit on.
After a setting change, do not turn the unit power off for at least 10 seconds.
The setting data may otherwise not save properly.
<Control System Selection>
The FA-1010 offers you 2 control systems allowing you to choose in different situations.
・
Windows GUI
- Enables full control over the FA-1010
- Quicker response compare to the Web GUI
・
Web GUI
- Easy operation on tablet PC or PC
- No space required
FA1010-SETUPGUIDE-E-2.DOCX
Packing list
FA-1010: 1
AC cord: 2
Rack mount bracket set: 1 set
GENLOCK IN GENLOCK IN
External reference Loop-through
SLOT D
signal input (Terminate at
75Ω when not
in use.)
C D
AC IN 1
OUT 6 IN 7 OU T 7 IN 8 OU T 8 IN 9 OUT 9 IN 10 OUT 10
Ground
GENLO CK IN
Terminal
SDI IN SDI OUT
モニター モニター
・・・・
モニター モニター
Monitors, recorders, etc.
3G/HD/SD-SDI input and output connectors.
Alternate Input and output allocation. Bypass
outputs signal input (left) to the right of each
input/output connector pair.
6 Change the PC network settings for the connection with the FA-1010.
Go to Local Area Connection > General > Internet Protocol
(TCP/IP) > General > Properties, then set the IP address and
Subnet mask to match that of the FA-1010.
PC IP address
Subnet mask
*192.168.0.10 is the default IP address.
<To start up Windows GUI>
7 Install the software, FA-1010 GUI.
Open the FA-1010GUI folder. Double-click the Setup icon to start the
setup wizard.
Once the GUI starts up and a GUI page opens, enter the FA-1010 IP
address to register the unit. Click a number under Select to select a
unit, then click Connect to establish a connection with the FA-1010.
<To start up Web GUI>
7 Start a web browser on the PC.
Enter the FA-1010 IP address into the web browser address bar.
Visit the FOR-A website, register your email and
go to the FA-1010 page. Download the GUI and other
Quick Setup Guide: 1
software, manuals and materials that match
AC cord retaining clip: 2 set
your FA-1010 Software version. (See below.)
https://www.for-a.com
Check Version
(1) Connect FA-505 and a terminal device via LAN
(wired or wireless)
(2) Enter the FA-505 IP address in the address bar of
web browser.(Default: 162.168.0.10)
(3) The FA-505 software version is displayed.
192.168.0.xxx （xxx is any number from 1 to 254
except for the number set for the FA-1010 unit
and gateway number.）
Set to 255.255.255.0.
3. Front Panel Indicators
SDI IN
1 2 3 4 5 6 7 8 9 10
DC POWER 1 GENLOCK BY-PASS INSTALL
DC POWER 2 VIDEO VIDEO IN
FAN ALARM LTC IN AUDIO AUDIO IN
(1) (2) (3)
1 Power switch Used to turn the unit ON / OFF.
Lit green
DC POWER 1/2
Lit red
Lit green
FAN ALARM
Lit red
Unit status
2
indicator
Lit green
GENLOCK
Unlit
Lit green
LTC IN
Unlit
Lit green
BY-PASS
Unlit
Lit green
SDI IN status
3 VIDEO
indicator
Unlit
Lit green
AUDIO
Unlit
Lit green
INSTALL
Unlit
OPTION SLOT Lit green
4 VIDEO IN
status indicator
Unlit
Lit green
AUDIO IN
Unlit
Used to reinitialize the unit. Read the WARNING below before proceding.
To reinitialize the unit, turn the unit on while holding down the
5 INITIALIZATION
INITIALIZATION button. Continue pressing the button until all LEDs that
light together at startup indicate their current status.
All setting data will initialize. Back up before executing a reinitialization.
Precautions
⚫
Operate the unit only at the specified supply voltage.
⚫
Ensure the unit is properly grounded at all times.
⚫
Ensure the power cord and connectors are firmly connected.
⚫
Do not access circuitry with power applied to the unit.
⚫
Unit should not be operated or stored with the cover, panels, and/or casing removed.
⚫ Unit should not be operated or stored in a humid, dusty, etc. environment. Doing so could
result in fire or electrical shock.
⚫
Do not allow fluids, metal fragments, or any other foreign objects to enter the unit. If foreign
matter does enter the unit, turn the power off and disconnect the power cord immediately.
Remove the material or contact your authorized service representative
⚫
If you notice any strange smells or noises coming from the unit, turn the power off
immediately, turn OFF the power switch, disconnect the power cord, then contact your
authorized service representative.
FA- 1010
OPTION SLOT
FRAME SYNCHRONIZER
A B C D
INITIALIZATION
(4) (5)
Power supply is normal.
A power failure has occurred.
All fans are operating normally.
One or more fans have failed.
Genlock signal input is present.
No genlock signal input is present.
LTC input is present.
No LTC input is present.
Input signal is being bypassed.
No signal is being bypassed.
Video signal input is present.
No video signal input is present.
Embedded audio signal is present.
No embedded audio signal is present.
One or more option cards are found and
recognized in option slots A to D.
No option card is installed or recognized.
Video signal input(s) is/are present in
option slot(s).
No video signal input in option slots.
Audio signal input(s) is/are present in
option slot(s).
No audio signal input in option slots.
