Wiring Diagram - F&F MB-LI-4 Hi Manual

Pulse counter, 4-channel, with modbus rtu output
Table of Contents

Advertisement

1. Before installing the module, set the selected Modbus com-
munication parameters and measurement options.
2. Disconnect the power supply in distribution box.
3. Install the module on the rail.
4. Connect the module power supply to terminals 1-3 as indica-
ted.
5. Connect the A-B signal output (RS-485 port) to the Master de-
vice output.
6. Connect the signal wires to the counter inputs according to the
selected trigger option (low or high signal).

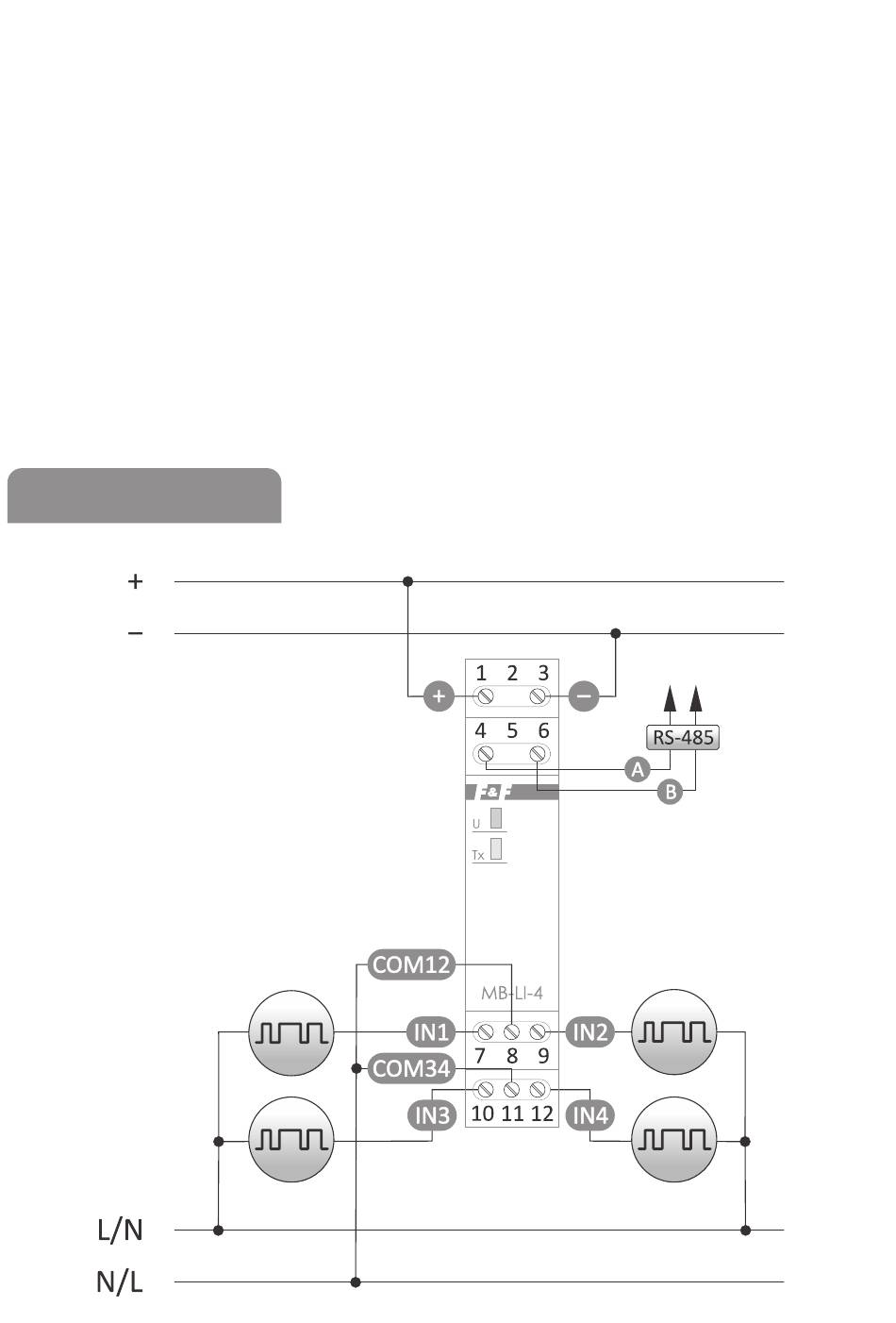

Wiring diagram
