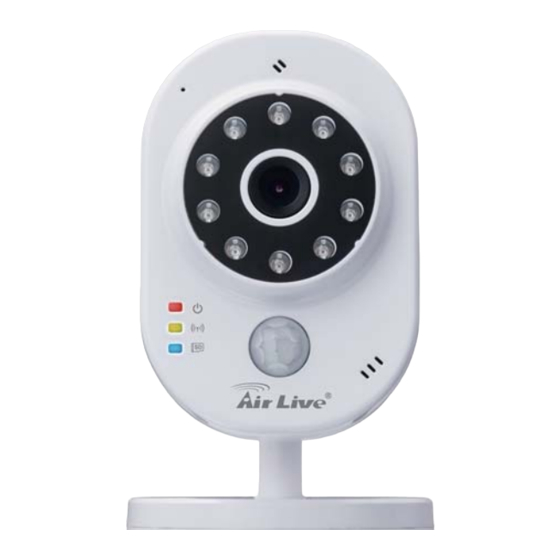

SmartCube 300W
Intelligent 3MP Wireless Cube IPCAM
with Temperature and Humidity Sensor
Quick Installation Guide
Setup using Smartphone and router
without WPS push button.

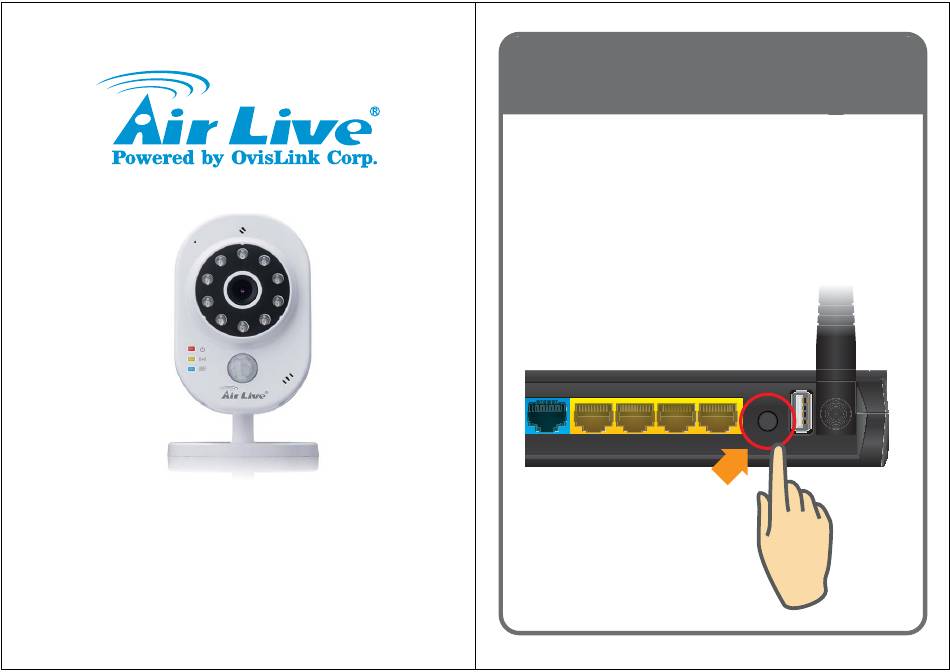

Please check if your wireless router has "WPS
Push Button" shown as an example in the
picture below. If it doesn't, please use this
guide. If it does have the WPS push button,
please download the guide "Setup using
Smartphone and router with WPS push
button"
WAN
LAN4
LAN3
LAN2
WPS Push Button
s "
n th
thi
butto
tt
ing
ush
LAN1
Reset/WPS
USB
Ant.
Advertisement
Table of Contents
Related Manuals for Ovislink Air Live SmartCube 300W
Summary of Contents for Ovislink Air Live SmartCube 300W
- Page 1 Setup using Smartphone and router without WPS push button. Please check if your wireless router has "WPS s " Push Button" shown as an example in the n th picture below. If it doesn't, please use this guide. If it does have the WPS push button, butto please download the guide "Setup using Smartphone and router with WPS push...
- Page 2 QR code here. Please consult with the FAQs <http://www.airlive.com/pro duct/smartcube-300w/faq> before writing to OvisLink Tech Support Team for further assistance SmartCube 300W 5V AC Power Adapter Mounting Accessories For any other question, please read the user (Screws / Plastic Anchors) manual in the CD or mail to tech@airlive.com...
- Page 3 I/O Interface I/O Interface Power Input 802.11n Wi-Fi Ethernet Port Micro SD Slot WPS and Reset Button...
- Page 4 Remove Cover box Remove Cover box Remove Cover box...
- Page 5 Assemble the bracket and the stand Assemble the bracket and the stand Assemble the bracket and the stand...
- Page 6 Assemble the bracket and the stand Assemble the bracket and the stand...
- Page 7 Assemble the bracket and the stand Assemble the bracket and the stand...
- Page 8 Plug the adapter Power on SmartCube 300W Plug the power cable into the camera. When SmartCube 300W is powered on, the green led will be on first. After SmartCube 300W is ready, the red len will be on and the green led will be off.
- Page 9 Mount the camera Adjust the View of the Camera Please use three screws to fix the camera.
-
Page 10: Reset The Camera To Default Settings
Insert a Micro SD Reset the Camera to default settings After inserting a micro SD card, the blue led will This step is not needed during the setup. But if be on. Please use empty microSDHC Class 10 the camera is not responding and you want to 8GB or better. - Page 11 Set up the camera by Ethernet port Download the AirLive APPCAM APP You can configure the camera by connecting Please visit App Store or Google Play to the SmartCube's LAN port to your router's LAN download AirLive APPCAM APP. You can use port by Ethernet cable.
- Page 12 Start the AirLive APPCAM Search and Add the Camera Click the “AirLive APPCAM” icon on your device. Click "Camera" to add SmartCube 300W...
- Page 13 Scan the QR code Key in the password Please scan the camera's UID QR Code to add Key in the password to link the camera. The the camera. You can find the camera's UID QR default password is "airlive". code on the "QR Code card" or in the back of Please select “SmartCube series”...
- Page 14 Change the password Live View Please change the password when logging to the camera at the first time. Please do not forget this password as you will be asked to enter this new password when setting up the camera.
-
Page 15: Setup The Camera
Setup the Camera Mobile Web Wizard Please click on the "Web UI" button to setup the Click the Setup tab to switch the page. camera via Mobile Web Wizard. When prompted for username and password, please enter "admin" as the username and enter your new password as password. - Page 16 Mobile Wizard Wifi Setup Mobile Wizard Wifi Setup In the Setup page, please click on the Please select SSID and key in the password "Wireless" then click on the "Save".
- Page 17 Mobile Wizard Wifi Setup Mobile Wizard Wifi Setup After connecting to the router, The wizard will When user unplugs the Ethernet cable, please show "Connected". replug the power cable at the same time. Wireless connection will be rebuilt in three minutes.
- Page 18 Mobile Web Wizard Setup the Camera Click the buttons to switch the page. For first time configuration, please click on the "Wizard" and follow through and finish the process.
- Page 19 Live View Sensors In the Live View page. you can see Live View You can see the temperature and humidity from this page. values on this page. For more alarm settings, please click "Setup" button.
- Page 20 SmartCube 300W Setup Change the camera password Please select setup page, click "Wizard" button. Please change the default password and click "Next" button.
-
Page 21: Time Adjustment
Time Adjustment E-mail Settings Adjust the time and date of the camera and It requires E-mail information to send the click "Next" button. counting report. - Page 22 Sounds Scenarios Setup You can adjust the sound volume in this page There are three scenarios. 1. Normal Mode 2. Door Cam Mode. 3. Store Entrance Mode. Please select the scenario to fit your environment and click "Next" button.
-
Page 23: Normal Mode
Door Cam Mode Normal Mode You can adjust resolution,frame rate and PIR In door cam mode, SmartCube 300W will detect motion detection in normal mode. people, send the notification to the smartphone and record video to SD card. - Page 24 Store Entrance Mode Face Detection vs. Object Counting You can choose between face detection or Please check the comparison table below object counting to count the number of choose between Face Detection and Object customers. Counting. If you are not sure which one to choose, please select Face Detection.
-
Page 25: Face Detection
Face Detection Face Detection Face detection works by counting faces as You can adjust the settings to fit the people walk by. Please install it on the ceiling environment. facing the front entrance about 4 to 5 meter away from the door. Please make sure the camera can see the faces of people clearly as they walk in. -
Page 26: Object Counting
Object Counting Object Counting Object Counting register a count when people Object Counting require ceiling of higher 3.2 cross from zone 1 to zone 2 or vice versa. It meters for installation. The higher it is, the can have independent count for entry and exit. more accurate counting result is. - Page 27 You can adjust the settings to fit the Declaration of Conformity We, Manufacturer/Importer environment. OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, Taiwan Declare that the product Intelligent 3MP Wireless Cube IPCAM with Temperature and Humidity Sensor...
