2

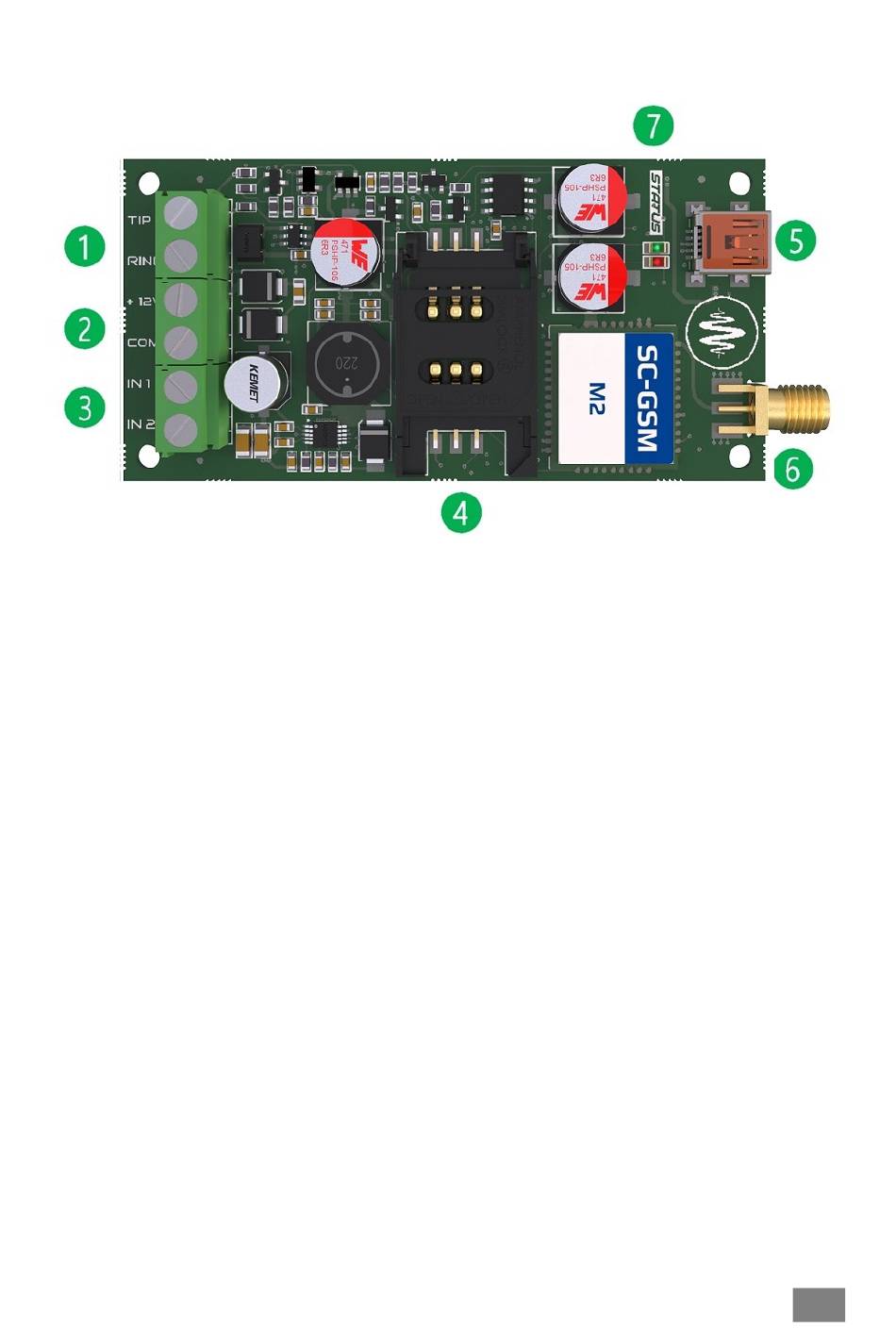

Structure
❶
TIP/RING Communication terminals, generated phone line output
Simulated PSTN line for connection to TIP/RING alarm panel input terminals
❷
Power supply terminals
Power requirements: DC 9-30V / 300mA
❸
Alarm contact inputs
Triggered to negative supply (with dry contact)
❹
SIM card holder
Type: 2FF/mini SIM
❺
USB mini B connector for configuration
❻
GSM antenna connector, SMA type
❼
Status signaling LEDs
SC-GSM M2
manual v2.0
4 EN
