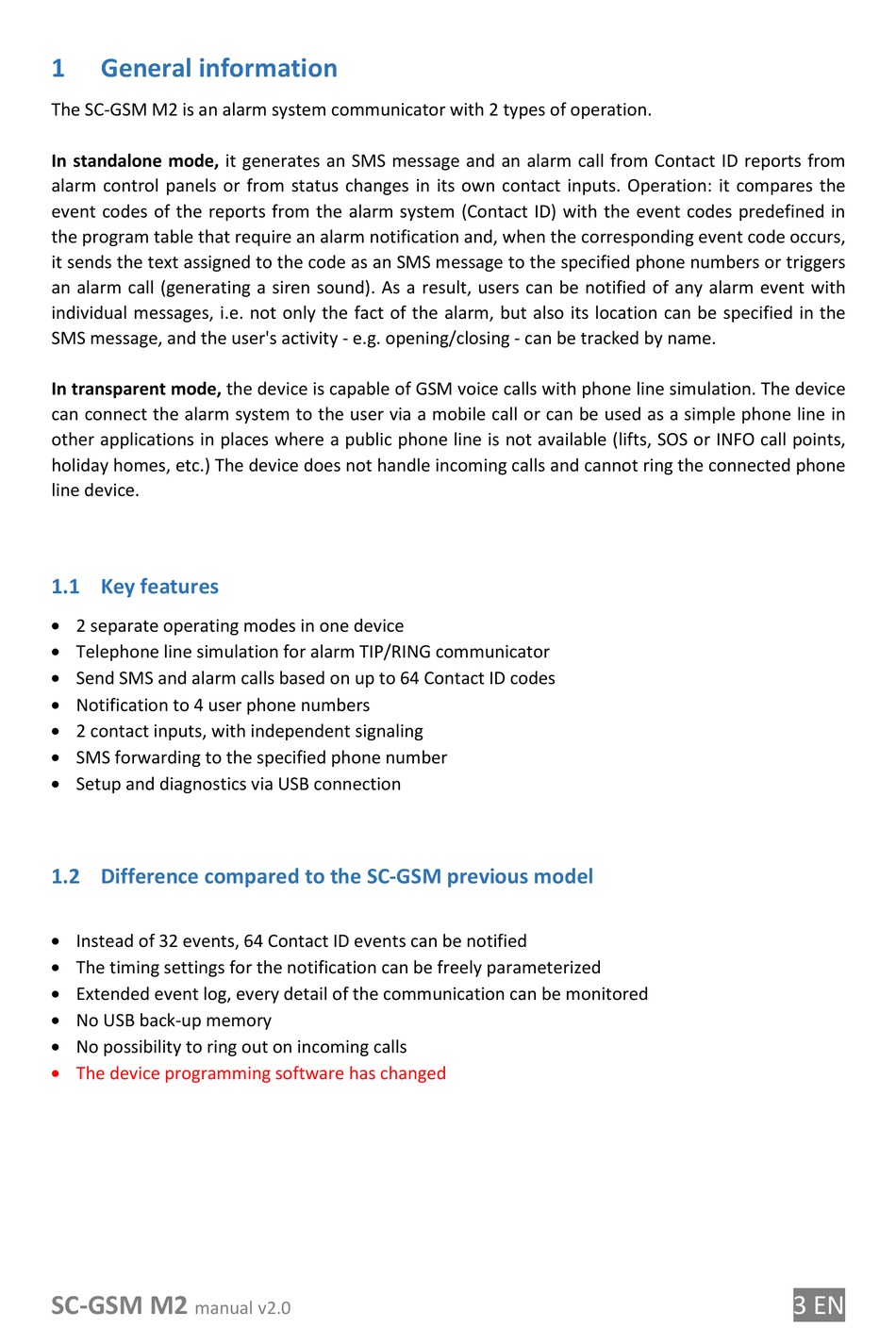

General information

The SC-GSM M2 is an alarm system communicator with 2 types of operation.
In standalone mode, it generates an SMS message and an alarm call from Contact ID reports from
alarm control panels or from status changes in its own contact inputs. Operation: it compares the
event codes of the reports from the alarm system (Contact ID) with the event codes predefined in
the program table that require an alarm notification and, when the corresponding event code occurs,
it sends the text assigned to the code as an SMS message to the specified phone numbers or triggers
an alarm call (generating a siren sound). As a result, users can be notified of any alarm event with
individual messages, i.e. not only the fact of the alarm, but also its location can be specified in the
SMS message, and the user's activity - e.g. opening/closing - can be tracked by name.
In transparent mode, the device is capable of GSM voice calls with phone line simulation. The device
can connect the alarm system to the user via a mobile call or can be used as a simple phone line in
other applications in places where a public phone line is not available (lifts, SOS or INFO call points,
holiday homes, etc.) The device does not handle incoming calls and cannot ring the connected phone
line device.

1.1 Key features

 2 separate operating modes in one device
 Telephone line simulation for alarm TIP/RING communicator
 Send SMS and alarm calls based on up to 64 Contact ID codes
 Notification to 4 user phone numbers
 2 contact inputs, with independent signaling
 SMS forwarding to the specified phone number
 Setup and diagnostics via USB connection

1.2 Difference compared to the SC-GSM previous model

 Instead of 32 events, 64 Contact ID events can be notified
 The timing settings for the notification can be freely parameterized
 Extended event log, every detail of the communication can be monitored
 No USB back-up memory
 No possibility to ring out on incoming calls
 The device programming software has changed
