- Page 1 Filename: EAAM016305EN Rev. 05 Date: 05/11/2014 ID Document: EAAM0163 Product: DST2600...
- Page 2 8.4.2.4 MODE 4 ....................19 CLOCK ........................20 TEST (engine starting test) ................... 20 10.1 Manual command ..................21 10.2 Digital input command .................. 21 10.3 Periodical test ....................21 10.4 Command from serial port ................22 DST2600 User’s Manual...
- Page 3 Manual start ....................25 11.10 Automatic start and stop ................25 CHANGE-OVER LOGIC ..................25 LOAD MANAGEMENT ................... 26 DST2600 Start up ....................27 PARAMETERS PROGRAMMING ................27 15.1 Entering and modifying parameters .............. 27 15.2 Password setting ..................29 ANOMALIES ......................
- Page 4 In spite of every effort made to maintain updated the documentation, some new features or function couldn’t be covered by this document. In any case, check first for an updated version of the document on our website www.sices.eu; if you need technical support, please write to techelp@sices.eu...
- Page 5 Safety ground connection is MANDATORY and required for the proper device functionality. It must be done before any other connection; SICES srl is no in any way liable for damage or person injury due to the lack or the incorrect safety ground connection.
- Page 6 16mm for 40kVA applications DST2600 is equipped with a charge maintainer that has the purpose of supply the internal logic and compensate the self discharge of the main engine battery. It is supplied from phase L1 of the mains line; it is thus required that in three-phases system the neutral line is connected in order to proper supply the battery maintainer.
- Page 7 DST2600 has over-current protection for the battery connection and for the mains and genset connections. They are made by fuses. Before change any fuse, check that no harmful voltages are present: stop the genset by emergency stop, open the mains line and disconnect the genset battery.

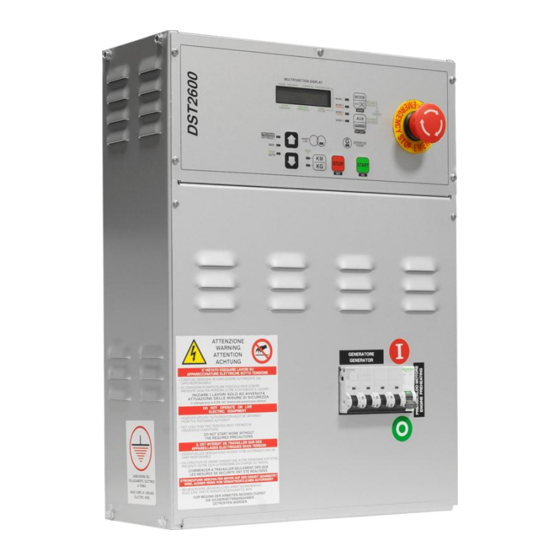

- Page 8 The frontal panel can be different in the graphical aspect with respect to the one shown here; however the functions of the keys, the warning lights and of the display stay unchanged DST2600 User’s Manual...
- Page 9 DST2600 has eleven lights, to signal status, events and for the working and visualization modes. In the “OFF_RESET”, by pressing the “STOP” key, all the lights will be lighted on (“LAMP TEST”) allowing to check their proper working. They’re three yellow lights on the left side of the arrow keys. They signal the working mode of the device (for a complete description of the working modes see par.
- Page 10 (“OFF_RESET”, “MAN”, “AUTO”). Each mode is signalled with the corresponding light. To pass from one mode to another, keep pressed the arrow key for about one second; to pass from “OFF_RESET” to “AUTO” and vice-versa it is necessary to pass from “MAN”. DST2600 User’s Manual...
- Page 11 In this mode is furthermore possible to run a manual “TEST”, besides the automatic periodical running test (see par. 10). Moreover, it is possible to pass to “REMOTE START” mode, by a digital input command or by a serial port command. DST2600 User’s Manual...
- Page 12 The key allows moreover to abort the modification of a parameter when in progress (the parameter will keep its previous value). The key finally allows, if used together with the “START” and “STOP” keys to modify the value of a parameter of 10 units at time (“SHIFT” function). DST2600 User’s Manual...
- Page 13 Keep the key pressed to automatically decrease the value; it will restart from its maximum after the minimum will be reached. Used together with the “AUX/PROGRAM” key (press and keep pressed DST2600 User’s Manual...
- Page 14 When the engine is running (only if started by DST2600), the light is always switched on to improve the readability of the display The display foresees four visualization modes, selected with the “MODE/ACK”...
- Page 15 1/10 of their full scale value (that is 3.3A for 20kVA version and 6.2A for 40kVA version) the power factor is forced to one. In the case of power reverse the indication is preceded by a minus sign and the integer digit is not shown. DST2600 User’s Manual...
- Page 16 Whatever is the visualization mode, when an anomaly occurs the visualization is forced to “MODE1”. In “MODE2”, pressing more time the “AUX/PROGRAM” key, it is possible to visualize four different pages, containing measurements related to generator and to mains - Page 1: DST2600 User’s Manual...
- Page 17 In the first row it is shown the total active energy supplied by the generator (in kWh). In the second row it is shown the counter of the total reactive energy supplied by the generator, in kvarh. Page 4 MAINS R S T 399 398 396 50.0 DST2600 User’s Manual...
- Page 18 (in °C) and the fuel level (as percentage with respect the full tank). These measurements are available only if engine instruments were been properly configured. If one or more measurement is not available because not configured, the indication is substituted with dashes DST2600 User’s Manual...
- Page 19 Page 2 BOARD H.: SN: 000009FBF4F9 On the first row there is shown the total working hour of DST2600 (since it was supplied), on the second row there is an alphanumerical code with 12 characters, unambiguous for each device (serial number)
- Page 20 DST2600 manages an internal clock/calendar. Attention: there isn’t any internal real clock circuit, so if you remove power supply from DST2600, when you power it again the date will be “01/01/2000” and the time will be “00:00:00”. In this case, date and time are marked as “not valid”...
- Page 21 (pressing the “STOP” key will cause the activation of a block). To enable the periodical test it is necessary to set the some parameters. The procedure is changed from revision 00.06 of DST2600. Up to 00.05 version: parameters involved are P.419 and P.420. Parameter P.419 is a time expressed in hours: it is the time interval between one test and the next.
- Page 22 The operator can start a test by sending a SMS containing a specific text (see SICES document EAAS0180xx). In the same way the test can be ended. NOTE: the test can be started in this way only if the parameter P.429 (test length) has a value different from zero:...
- Page 23 / SMS. DST2600 acquires the mains voltage of the plant (single-phase or three-phases), in order to command automatic engine starts and stops (and the loads changeover) in the case of failure upon the mains itself (AMF –...
- Page 24 “REMOTE START”; its activation is signaled by the “MAINS LIVE” light, which flashes also with mains presence. DST2600 is able to start, stop and protect the engine with a series of thresholds upon the acquired measurements (oil pressure, coolant temperature, speed etc.). The engine...
- Page 25 The engine has been started by the board (the fuel solenoid command must be active). No alarms or deactivations are present. In the OFF/RESET mode, loads are always changed-over to mains (and so, selecting this mode will cause an automatic changeover to mains if load was connected to generator). DST2600 User’s Manual...
- Page 26 (histeresys). The output is activated when : “low” load condition is detected if P.481 is set to zero. “high” load condition is detected if P.481 is set to one. DST2600 User’s Manual...
- Page 27 When DST2600 is supplied (from engine battery or mains), is does a sequence of operations: LAMP TEST: the internal horn is enabled for about 0.5 seconds; all the LEDs and the display internal light are switched on for about two seconds. This operation has the purpose to allow to the operator to check for failures on the signal lamps or on the horn that could involve a lack in a failure signalling.
- Page 28 It is also possible to exit from the programming procedure passing in “MAN” mode. To each new access in the programming procedure the display will show the menu or the parameter visualized the previous time. DST2600 User’s Manual...
- Page 29 SICES s.r.l. to be unlocked. For the same reason it is recommended to set immediately a password, to avoid that it could be modified by external personnel or inserted for mistake.
- Page 30 When reporting an anomaly, besides the description, refer its correspondent number. Here a summary of the DST2600 fundamental technical characteristics: Mains Voltages measurements: L1-L2, L2-L3, L3-L1, mean value measurements Maximum phase-to-neutral voltage: <...
- Page 31 Generally the mean absorption with engine stopped is about 110-130mAac @230Vac, independently by the device working mode; with engine running and then with battery charger alternator working the absorption is reduced practically to that of the active contactor (mains or generator). DST2600 User’s Manual...
- Page 32 Overall dimensions: 460X345X140 mm (HxLxP) (P=165mm with emergency pushbutton) DST2600 panel can be hanged up to a wall using the notches on rear side. DST2600 User’s Manual...
- Page 33 This document is owned by SICES s.r.l.. All rights reserved. SICES s.r.l. reserves the right to modify this document without prior notice. SICES has made any effort to ensure that the information herein provide are correct; in any case SICES does not assume any liability for the use these information.
