  • Page 1 External Battery for Dash Cams BAB-95 Quick Start Guide & Warranty www.thinkware.com Ver. 1.0 (2022)
  • Page 3: Warranty

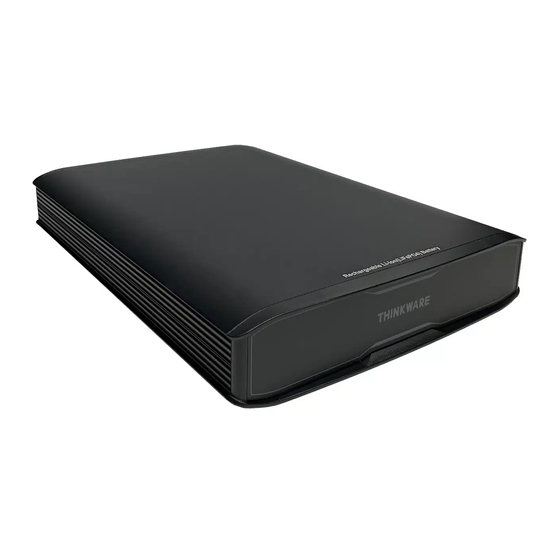

    Quick Start Guide & Warranty This product is an external power supply, which is used to provide extended dash cam recording when the vehicle is parked, without depleting or damaging the vehicle's battery. This manual outlines the basic steps required to install and use the external battery.
  • Page 4 CONTENTS English ..........................Français ........................... 19 Deutsch ........................... 35 日本語....................51 简体中文................... 67...
  • Page 5 Quick Start Guide & Warranty English...
  • Page 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 7: Safety Information

    Safety Information Read and follow the safety information to safely use this product. If the instructions are not followed, the product's performance may degrade, or it may overheat, ignite, or explode and result in injury or property damage. WARNING Periodically inspect the product for proper operation. Incorrect wiring or aged and damaged cables may cause a fire.
  • Page 8: Included Items

    Included items Open the package and ensure that the following items are included. Communication External battery Charging cable Output cables extension cable Fuse holder (3 types) Fuse (3 types) Velcro tape Quick start guide Part names Refer to the following figures for the location of connectors and indicators on the product. Power Output cable switch...
  • Page 9: Product Features

    Operation modes depending on the power switch settings Power switch setting Operation mode HIGH Normal-speed charge ON (6.5 A) HIGH Power OFF HIGH High-speed charge ON (8.5 A) Caution - When setting the power switch Set the power switch to HIGH (high-speed charge) when you use the charging cable for the fuse box. It will take more time to fully charge if the power switch is set to LOW (normal-speed charge).
  • Page 10 Caution - Before installing the external battery • The product warranty does not cover vehicle damage or product malfunctions caused by use of third-party cables, or by inappropriate installation conditions where the vehicle’ s alternator fails to generate sufficient charging voltage or current. •...
  • Page 11 • Ensure that the fuse holder is installed correctly for proper input and output connection. The fuse may blow if input and output connection is incorrect. THINKWARE is not responsible for any problems and/or damages to the vehicle due to an incorrect connection.
  • Page 12 7. Find a bolt fixed on the vehicle’s chassis, and connect the ground (GND) cable to the bolt. Note If the vehicle’ s bolt is coated, remove the coating before connecting the ground (GND) cable. The power may not be supplied correctly due to the coating. Connecting the dash cam 1.
  • Page 13: Wiring Diagram

    Wiring diagram Refer to the following wiring diagrams to correctly connect the product. Suggested way to connect the product Vehicle 20 A Fuse BAB-95 DASH CAM External battery Fuse box ACC IN ACC OUT When connecting the product directly to the vehicle, you should additionally buy a vehicle exclusive fuse that is 20 A - 30 A.
  • Page 14 Using the iVolt app via Bluetooth If you connect the product with your smartphone, you can check the current battery’s status, temperature, and charging status, as well as the number of impact detection (Motion Detection, Impact Detection, and Intelligent Impact Detection) on the iVolt app. To use the iVolt app, open the Play Store (for Android devices) or the App Store (for iOS devices) and download the iVolt app on your smartphone.
  • Page 15 About the Home screen on the iVolt app When you open the iVolt app and the product is successfully connected with your smartphone, you can check the current battery’s status, temperature, and charging status, as well as the number of impact detection (Motion Detection, Impact Detection, and Intelligent Impact Detection) on the Home screen of the iVolt app.
  • Page 16: Product Specifications

    Product specifications Items Specifications y LOW (normal-speed charge mode): 12.0 V - 17 V/6.5 A MAX Input voltage/current y HIGH (high-speed charge mode): 12.0 V - 17 V/13.5 A MAX Output voltage/current 11.0 V – 14.2 V/2 A MAX y LOW (normal-speed charge mode): 14.2 V/4.5 A Max Charging voltage/current y HIGH (high-speed charge mode): 14.2 V/8.5 A Max y LOW (normal-speed charge mode): Approximately 90 minutes...
  • Page 17 3. Products that are operated in combination with ancillary or peripheral equipment not furnished or otherwise certified by THINKWARE for use with the product or any damage to the products or ancillary equipment as a result of such uses.
  • Page 18 The obligations of THINKWARE and the right of the purchaser under this warranty is limited to repair or replacement at the option of THINKWARE authorized dealer. The purchaser must...
  • Page 19 INCIDENTAL, CONSEQUENTIAL, CONTINGENT OR SPECIAL DAMAGES WHATSOEVER, (4) ANY OBLIGATIONS ARISING FROM TORT OR ANY OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THINKWARE MAKES NO OTHER WARRANTIES. In the event of a product defect that requires support during the warranty period,...
