Summary of Contents for Thinkware Q1000

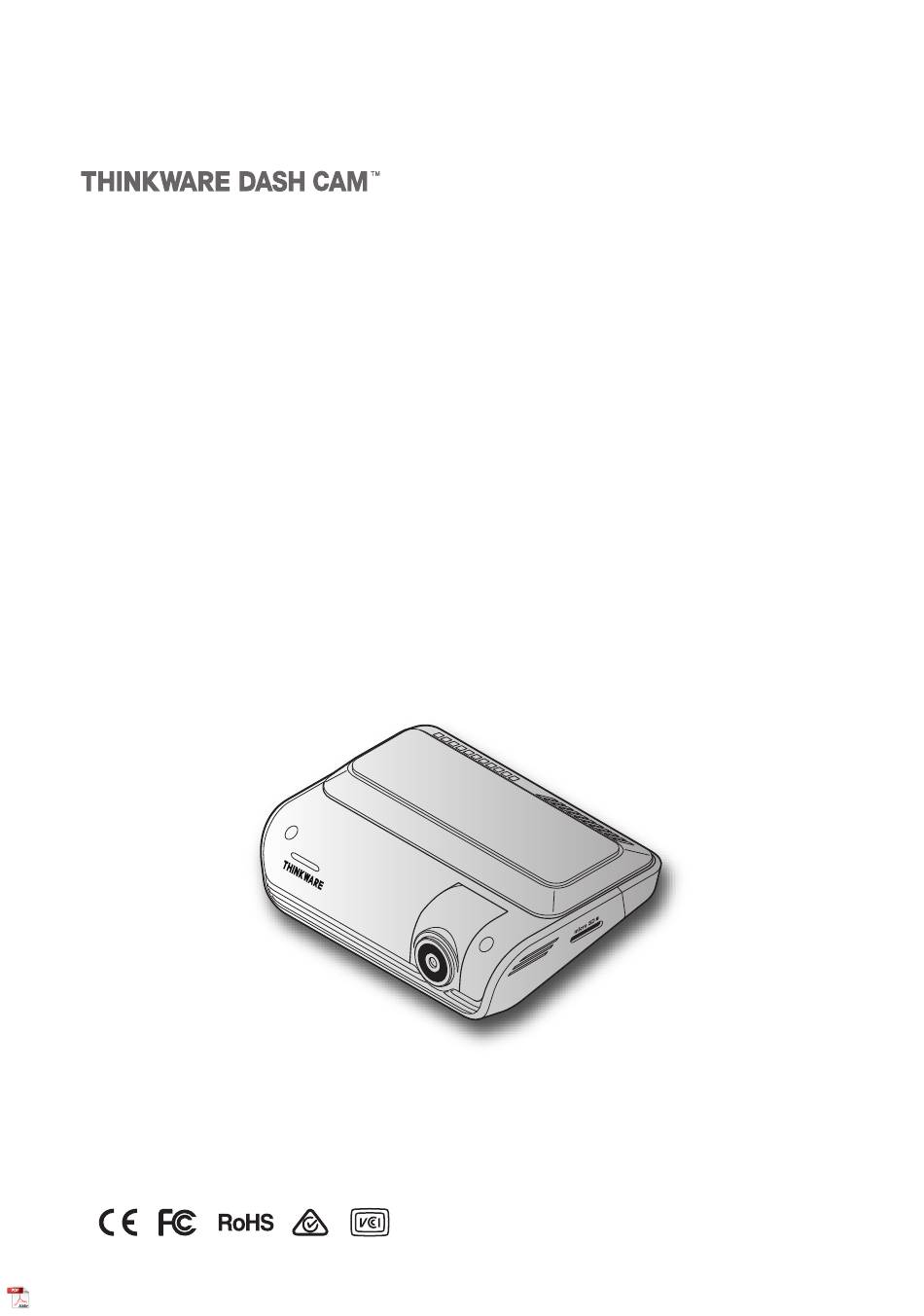

- Page 1 Q1000 User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product.
- Page 2 THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.
- Page 3 FCC CAUTION: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC ID: 2ADTG-Q1000 Information to user : RSS-247 This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to...
- Page 4 Antennas Statement This radio transmitter (identify the device by certification number or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
-
Page 5: Table Of Contents
Contents Safety information 5 5. Using THINKWARE CONNECTED 25 5.1 Connecting the product to THINKWARE CONNECTED 25 1. Product overview 8 1.1 Included items 8 6. Using the PC viewer 26 1.1.1 Standard items 8 1.1.2 Accessories (sold separately) 8 6.1 System requirements 26... -
Page 6: Safety Information
Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"... - Page 7 Doing so may result in electrical fire or electrocution. • Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does not guarantee compatibility and normal operation of third-party accessories.
- Page 8 • THINKWARE is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, THINKWARE does not guarantee the recording of accidents when the device is damaged as a result of the accident.
-
Page 9: Product Overview
1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. 1.1.1 Standard items Front camera (main unit) Mount Shield film Car charger Adhesive cable holder MicroSD memory card with adapter (consumable) Warranty / CS information The standard items may change without prior notice. -
Page 10: Part Names
Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Speaker REC LED Outputs the voice guide and buzzer sounds to indicate Indicates the recording status. the product’s status. GPS LED Indicates the GPS connection status. Manual recording button • Press to start manual recording. -
Page 11: Front Camera (Main Unit) - Rear View
Product overview • To reset the product, press and hold the voice recording ( ) and manual recording (REC) buttons simultaneously until you hear beeps. • Refer to the following table to check the status of the product using the LED indicators. LED STATUS Operation description Front Security LED... -
Page 12: Rear Camera (Optional)
• Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee the compatibility and normal operation of third-party memory cards. -
Page 13: Installing The Product
2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision. - Page 14 Installing the product After determining the installation location, wipe the installation location on the windshield with a dry cloth. Attach the shield film to the installation location. ➋ ➋ ➊ ➊ Remove the protective film from the adhesive mount, and then press the mount to the shield film. ➋...
-
Page 15: Connecting The Power Cable
➋ ➋ • Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and result in electrical fire or electrocution due to the voltage difference. • Do not cut or modify the power cable yourself. Doing so may damage the product or the vehicle. -
Page 16: Installing The Rear Camera (Optional)
Installing the product Connect the product to THINKWARE DASH CAM LINK on your smartphone and adjust the camera angle so that the hood of the vehicle covers 1/4 - 1/8 of the screen while viewing the live view screen, as shown in the image to the left. -
Page 17: Securing The Rear Camera
➊ ➊ and camera lens. ➋ ➋ Attach the product with the THINKWARE logo facing indoors and press the adhesive tape firmly to secure the camera. If the product is fixed in reverse, the rear view will be recorded upside down. -
Page 18: Connecting The Rear Camera Cable
Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera’s connection port. - Page 19 Check the RADAR connector location again before connecting the module. If you connect the THINKWARE Connected Dongle to the DC-IN power connector, the pins inside the port may be damaged. Turn on the ACC or start the engine to check that the product is powered on. After the product is...
-
Page 20: Using Recording Features
Play videos on Window/Mac computers or using the THINKWARE DASH CAM LINK. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost. A file name is composed of the recording start date and time, and the recording option.
