Daktronics Galaxy GS6 Quick Manual

Galaxy GS6 Display Internal Connection
Conversion Quick Guide
Use this procedure to convert the external J-box
and quick-connect plates on
a Galaxy GS6 display to
®
internal locations. Complete
these steps when mounting
GS6 displays flush on a
building or structure or when
two displays are mounted
back-to-back in a closer
configuration than the
standard back-to-back
mounting kit allows.
Required Tools
• Hex Head Wrench
• Channel Lock or /
7
16
socket
• Phillips Head Screw Driver
Moving the Quick
Connect Plates
1. Remove two bottom-left modules to access
the Primary display input quick-connect plate.
2. Remove two bottom-right modules to access
the mirror input/output quick-connect plate.
3. Remove the three screws that hold the quick-
connect plate to display backsheet. Save the
screws for reuse.

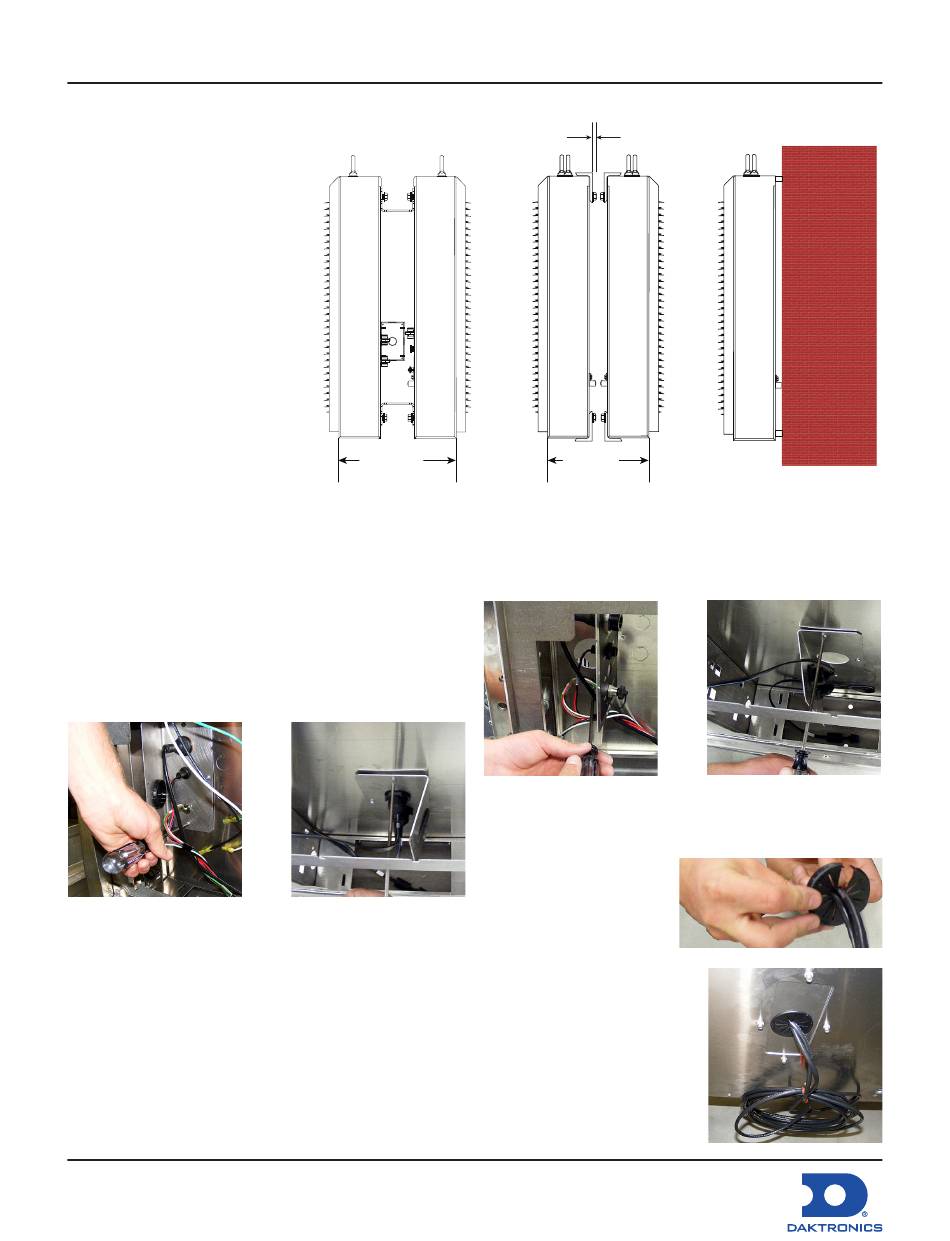

Figure 1: Primary Input
Quick-Connect Plate
4. Remove the black grommet from the quick-
connect plate.
1 May 2017
DD3497847
Rev 02
"
Cabinet
Face-to-Face
Dimension = 14"
Standard Back-To-Back
Configuration
Figure 2: Mirror Input/
Output Quick-Connect
Plate
201 Daktronics Drive Brookings, SD 57006
www.daktronics.com/support
800.325.8766
.438" Required
For Hardware x 2
Cabinet
Face-to-Face
Dimension >= 11"
Converted Back-To-Back
Configuration
5. Rotate the quick-connect plate on the
backsheet so the quick connects are located
inside the cabinet.
Figure 3: Input Quick-
Connect Plate Inside
Cabinet
6. Secure the plate
with the screws
removed in Step 3.
7. Thread the cables
through grommet
and into cabinet.
8. Snap the grommet in
place on outside of
display's backsheet.
Page 1 of 2
Converted Flush Mount
Configuration
Figure 4: Mirror Input/
Output Quick-Connect
Plate Inside Cabinet
