Arthrex Synergy Resection Quick Manual

Product Description
2
1
2
1
2
1
1
6
7
8
Single channel
handpiece activated
3
4
4
3 4
3
2 4
1 2
3
7
4
8
5
Single channel
handpiece not active
Synergy

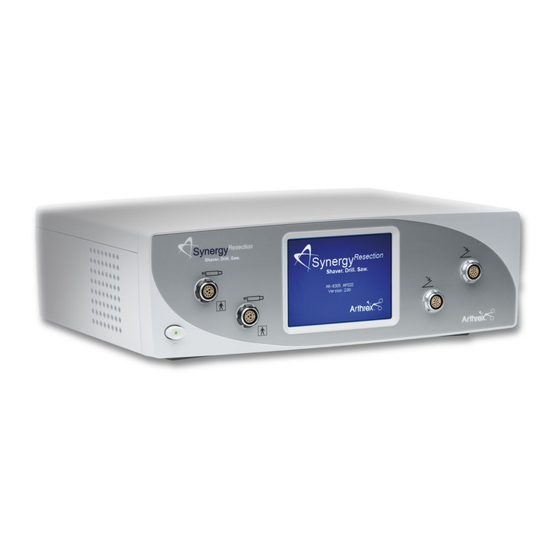

AR-8305 Console – Front View
On / off power switch
1
Handpiece connectors
2
Touch screen display
3
Footswitch connectors
4
AR-8305 Console – Rear View
Main power input plug
1
Equipotential bonding pin
2
Serial ports for Arthrex integration
3
USB port (for Arthrex service purposes)
4
AR-8330F, AR-8332H, AR-8332RH, AR-8330SJ
Shaver Handpiece
Suction connection
1
Suction regulator
2
Cable plug with soaker cap
3
Hand control buttons (AR-8332H, AR-8332RH)
4
Hub bore and locking pin
5
5
AR-8310, AR-8310SP, AR-8315C, AR-8315W Footswitch
Footswitch (SFS = Standard Footswitch, GFS = Gas Pedal)
Definition of Direction
1. Reverse / counterclockwise (REV)
2. Forward / clockwise (FWD)
3. Oscillation (OSC)
Main Screen
Speed setting
1
Speed up button
2
Speed down button
3
Oscillation mode (STD, EFF, AGG)
4
Settings button
5
6 Handpiece activated
Foot control handpiece connected
7
8 Standard footswitch connected
Resection
Quick Guide
