Arthrex Synergy Resection Quick Start Manual

Unpacking
Carefully unpack and inspect all components for shipping damage. Save the packaging for later transport of
the device. The footswitch and accessory handpieces are provided separately. The shaver blades and burrs
are provided separately and are in sterile packaging.
Please fully review the Synergy
shaver and burr DFUs prior to using these devices. The
contraindications for use, warnings, symbol definitions, and the full list of product instructions. These
documents can be found on Arthrex.com.

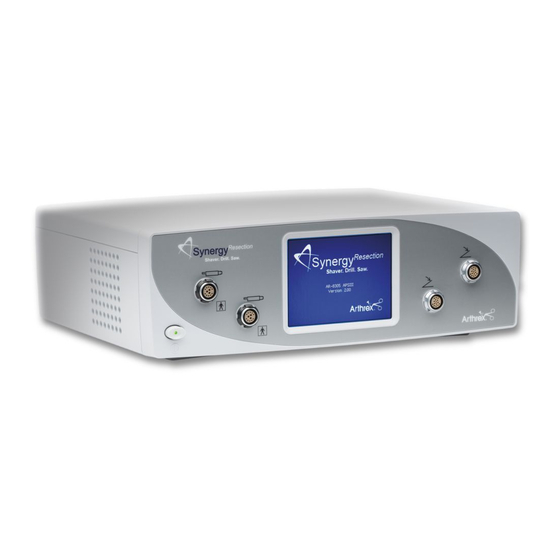

Console and Attachments
Footswitch - Button Activation
TOGGLE
AR-8310
Speed Change
ADAPTEUR POWER SYSTEM II
™
Reverse Forward
Oscillation Pedal
Console Handpiece
Suction
Attachment
Release
Synergy
console user's manual, shaver handpiece, footswitch, and each CoolCut™
Resection
Run/Stop
Control
Lever
Direction
Control
Resection™
user manual and DFUs provide the indications and
Setup
1
Place console on a flat, Connect power cord
dry surface. to console.
4
Power on console. Allow console to fully
initialize.
7
Attach suction tube to Attach footswitch.
handpiece.
Console
Quick Start Guide
2 3
Connect power cord to
outlet.
5 6
Attach handpiece via
connector to console.
8 9
Speed, directional, and
oscillate settings can be
changed using the touch
screen. Other optional
settings are found by
pressing the menu button
in the bottom right corner.
