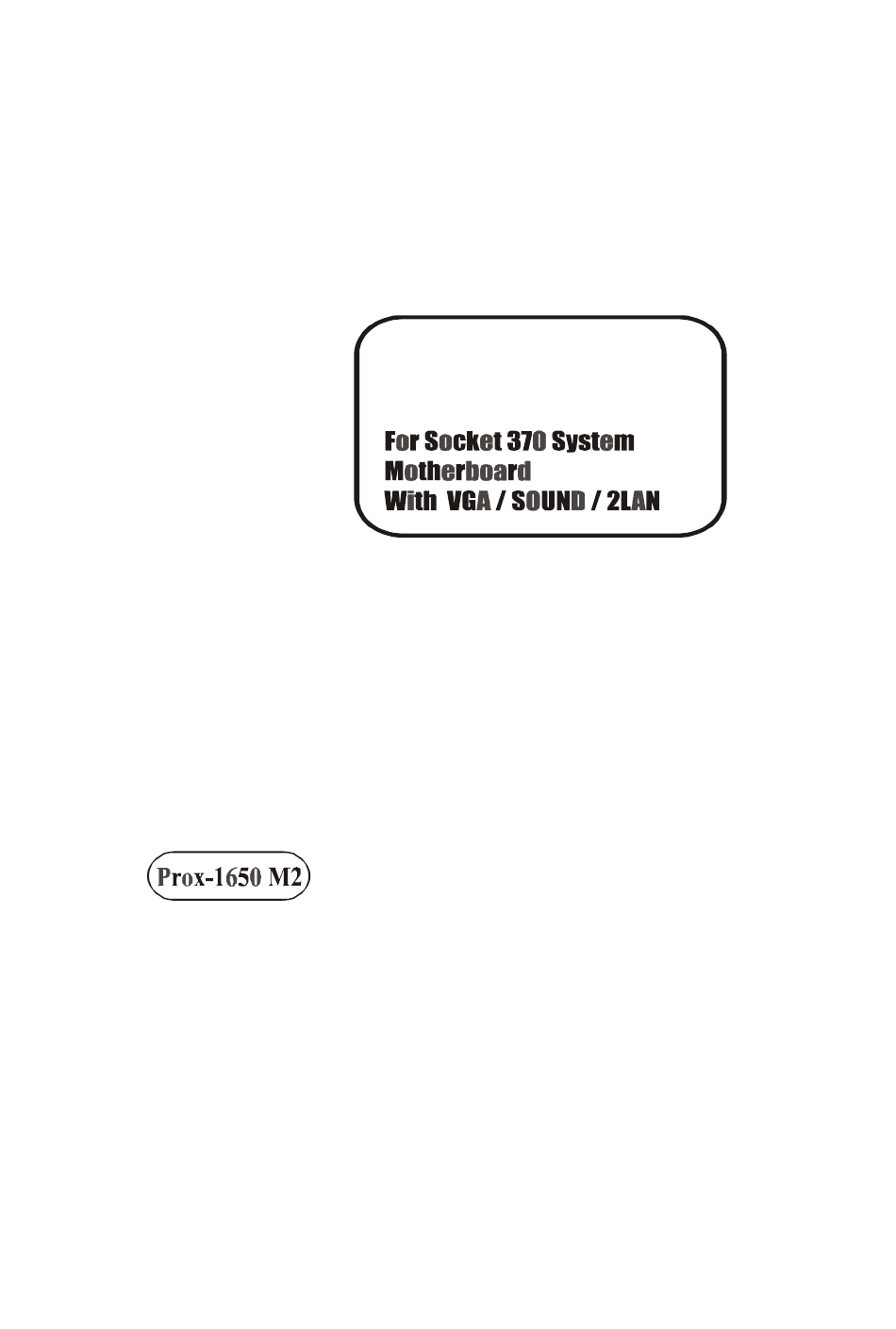

  • Page 1 USER’S MANUAL ProX-1650...
  • Page 2 Copyright Notice ProX-1650 Socket 370 Main Board With VGA / SOUND / Dual LAN OPERATION MANUAL COPYRIGHT NOTICE This operation manual is meant to assist both Embedded Computer manufacturers and end users in installing and setting up the system. The information contained in this document is subject to change without any prior notice.

  • Page 3: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual ............System Specifications ........... Safety Precautions ............CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table ....Component Locations ........... How to Set the Jumpers ..........COM Port Connector ………………………………… RS232/422/485 (COM2) Selection .......
  • Page 4 Contents 2-30 Floppy Disk Drive Connector ........2-27 2-31 Line-Out Connector ....…........2-28 2-32 Line-In Connector …………......... 2-29 2-33 Microphone Connector ..........2-29 2-34 CD Audio-In Connector ……………………………… 2-29 2-35 S-Video Out Connector ………………………………. 2-30 2-36 Composite Video Connector ……………………….. 2-30 2-37 TV-Out Address Setting ………………………………...
  • Page 5 Contents PNP/PCI Configuration …..........5-21 PC Health Status ……........... 5-23 5-10 Frequency / Voltage Control …........5-24 5-11 Load Fail-Safe Defaults ..........5-25 5-12 Load Optimized Defaults …..………………………… 5-25 5-13 Password Setting …………………………………… 5-26 5-14 Save & Exit Setup ............5-27 5-15 Exit Without Saving ............

  • Page 6: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for Prox-1650. It also outlines the System specifications. Section includes: About This Manual System Specifications Safety precautions Experienced users can skip to chapter 2 on page 2-1 for a Quick Start. Page:1-1...

  • Page 7: About This Manual

    Chapter 1 Introduction 1-1. ABOUT THIS MANUAL Thank you for purchasing our Prox-1650 Socket 370 Mainboard enhanced with VGA/Sound/Dual LAN, which is fully PC / AT compatible. The Prox-1650 provides faster processing speed, greater expandability and can handle more tasks than before. This manual is designed to assist you how to install and set up the system.

  • Page 8: System Specifications

    Support S/IO Setup. KEYBOARD CONNECTOR : Mini DIN connector. Supports for AT keyboard. MOUSE CONNECTOR : Mini DIN connector. Supports for PS/2 Mouse. DISK-ON-CHIPS SOCKET : A 32-pin SSD socket. Supports up to 288MB Disk-on-chips. ′ Page: 1-3 Prox-1650 USER S MANUAL...
  • Page 9 1.44M / 2.88M). USB CONNECTOR : Two sets of USB connector. Supports up to four USB ports. LAN ADAPTER : Dual Port, Intel® 82559 & Intel® 82562 Fast Ethernet 10/100 Base-T PCI-BUS. Support wake-on-LAN function. ′ Page: 1-4 Prox-1650 USER S MANUAL...
  • Page 10 2 port, Bi-directional parallel port. GREEN FUNCTION : Software supported by BIOS setup. LED INDICATOR : System power. Hard Disk access. LAN LED indicator. DMA CONTROLLER : 82C37 x 2 DMA CHANNELS : ′ Page: 1-5 Prox-1650 USER S MANUAL...

  • Page 11: Safety Precautions

    3. Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. ′ Page: 1-6 Prox-1650 USER S MANUAL...

  • Page 12: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information describes the jumper & connector settings, and component locations. This section includes: Jumper & Connector Quick Reference Table Component Locations Configuration and Jumper settings Connector‘s Pin Assignments Page 2-1...

  • Page 13: Jumper & Connector Quick Reference Table

    TV-Out Address Setting ….…………………………… TV or DVI Selection …………………………………... JP4 (1,3,5) NTSC or PAL Selection ……………………………….. JP4 (2,4,6) PanelLink (DFP) Connector ……..……………………. External Keyboard Connector …………………………. Clear CMOS Connector ……………………………….. Memory Installation ..........……... DIMM1, DIMM2 Page: 2-2 Prox-1650 USER'S MANUAL...

  • Page 14: Component Locations

    Chapter 2 Hardware Configuration 2-2. COMPONENT LOCATIONS Prox-1650 Connector, Jumper and Component locations Prox-1650 USER'S MANUAL Page: 2-3...

  • Page 15: How To Set The Jumpers

    PIN1 & PIN2 to create one setting and shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagram looks like and what they represent. Page: 2-4 Prox-1650 USER'S MANUAL...
  • Page 16 Chapter 2 Hardware Configuration JUMPER DIAGRAMS JUMPER SETTINGS Prox-1650 USER'S MANUAL Page: 2-5...

  • Page 17: Com Port Connector

    NTXD1 NDTR1 NDSR1 NRTS1 NCTS1 NRI1 COM2 : COM2 Connector The COM2 Connector assignments are as follows : ASSIGNMENT COM2 RS-232 RS-422 RS-485 DCD2 TIN2 ROUT2 RDTR2 TDSR2 RTS- TRTS2 RTS+ RCTS2 CTS+ RIN2 CTS- Page: 2-6 Prox-1650 USER'S MANUAL...
  • Page 18 The COM3 Connector assignments are as follows : ASSIGNMENT NDCDA COM3 NSINA NSOUTA NDTRA NDSRA NRTSA NCTSA NRIAR COM4 : COM4 Connector The COM4 Connector assignments are as follows : ASSIGNMENT NDCDB COM4 NSINB NSOUTB NDTRB NDSRB NRTSB SCTSB NRIBR Prox-1650 USER'S MANUAL Page: 2-7...

  • Page 19: Rs232/422/485 (Com2) Selection

    The jumper settings are as follows : COM 2 Jumper Setting Jumper Function (pin closed) Illustration RS-232 Open RS-422 1-2, 5-6, 7-8, 9-10 11-12,13-14,15-16 17-18, 19-20 RS-485 1-3, 4-6, 7-8, 9-10 11-12,13-14,15-16 17-18, 19-20 *** Manufactory default --- RS-232. Page: 2-8 Prox-1650 USER'S MANUAL...

  • Page 20: Com3 Ri & Voltage Selection

    2-7. COM4 RI & VOLTAGE SELECTION JP9 : COM4 RI & Voltage Selection The selections are as follows: SELECTION JUMPER SETTINGS JUMPER (pins closed) ILLUSTRATION VCC 12V VCC 5V This connector is to set the pin 9 of COM4. Prox-1650 USER'S MANUAL Page: 2-9...

  • Page 21: Solid-State Disk Socket

    Chapter 2 Hardware Configuration 2-8. SOLID-STATE DISK SOCKET SSD : 32-pin Disk-on-chip Socket The pin assignments are as follows: ASSIGNMENT ASSIGNMENT SA12 SA10 SA11 Page: 2-10 Prox-1650 USER'S MANUAL...

  • Page 22: Ssd Memory Mapping Selection

    ROM SSD can be install as one of user’s hard disk drive. The SSD Memory Mapping Selections are as follows: SSD Memory Map Jumper Settings JUMPER (pins closed) ILLUSTRATION CC000h-CDFFFh 11-12 D0000h-D1FFFh 9-10 D4000h-D5FFFh 11-12 D8000h-D9FFFh 9-10 DC000h-DDFFFh 11-12 *** Manufactory default --- CC000h-CDFFFh Prox-1650 USER'S MANUAL Page: 2-11...

  • Page 23: Keyboard Connector

    KB : PC/AT Keyboard Connector The pin assignments are as follows : ASSIGNMENT KB DATA KB CLK 2-11. PS/2 MOUSE CONNECTOR MS : PS/2 Mouse Connector The pin assignments are as follows : ASSIGNMENT MS DATA MS CLK Page: 2-12 Prox-1650 USER'S MANUAL...

  • Page 24: Reset Connector

    The pin assignments are as follows : Reset ASSIGNMENT RST SW 2-13. EXTERNAL SPEAKER CONNECTOR CN13 (2,4,6,8) : External Speaker Connector The pin assignments are as follows : Speaker ASSIGNMENT SPEAKER SIGNAL SPEAKER SIGNAL SPEAKER SIGNAL Prox-1650 USER'S MANUAL Page: 2-13...

  • Page 25: Hard Disk Drive Led Connector

    The pin assignments are as follows : HDD_LED ASSIGNMENT HDD LED SIGNAL HDD LED SIGNAL HDD LED SIGNAL 2-15. POWER LED & KEYLOCK CONNECTOR CN13 (1,3,5,7,9) : Power LED & Keylock Connector The pin assignments are as follows : ASSIGNMENT KLOCK Page: 2-14 Prox-1650 USER'S MANUAL...

  • Page 26: Atx Power Button

    CN13 (18,20) : ATX Power Button The pin assignments are as follows : ATX-BTN ASSIGNMENT PANSWIN 2-17. IRDA CONNECTOR CN13 (11,13,15,17,19) : Infrared Connector The pin assignments are as follows : IRDA ASSIGNMENT IRRX IRTX Prox-1650 USER'S MANUAL Page: 2-15...

  • Page 27: Atx Power Connector

    Chapter 2 Hardware Configuration 2-18. ATX POWER CONNECTOR CN9 : ATX Power Connector The pin assignments are as follows : ASSIGNMENT +3.3V +3.3V +5.0V +5.0V Power Good +5.0V Standby +12.0V +3.3V -12.0V Power On -5.0V +5.0V +5.0V Page: 2-16 Prox-1650 USER'S MANUAL...

  • Page 28: Vga Connector

    Chapter 2 Hardware Configuration 2-19. VGA CONNECTOR VGA : VGA Connector The pin assignments are as follows: ASSIGNMENT GREEN BLUE HSYNC VSYNC Prox-1650 USER'S MANUAL Page: 2-17...

  • Page 29: Printer Connector

    Chapter 2 Hardware Configuration 2-20. PRINTER CONNECTOR PRT1 : Printer Connector The pin assignments are as follows : PRT1 ASSIGNMENT ASSIGNMENT AUTFE ERROR INIT SLCTIN BUSY SLCT Page: 2-18 Prox-1650 USER'S MANUAL...
  • Page 30 Chapter 2 Hardware Configuration PRT2 : Printer Connector The pin assignments are as follows : ASSIGNMENT ASSIGNMENT AUTFE ERROR INIT SLCTIN BUSY SLCT Prox-1650 USER'S MANUAL Page: 2-19...

  • Page 31: Universal Serial Bus Connector

    This connector contains two USB ports. The pin assignments are as follows: ASSIGNMENT USBP0− USBP0+ USBP1− USBP1+ USB2: Universal Serial Bus Connector This connector contains two USB ports. The pin assignments are as follows: ASSIGNMENT USBP2− USBP2+ USBP3− USBP3+ Page: 2-20 Prox-1650 USER'S MANUAL...

  • Page 32: Lan Connector

    The pin assignments are as follows: ASSIGNMENT ISOLATED GND ISOLATED GND ISOLATED GND ISOLATED GND Pull Hi LED – Yellow Pull Hi LED – Green LAN2: LAN2 Connector The pin assignments are as follows: ASSIGNMENT ISOLATED GND ISOLATED GND Prox-1650 USER'S MANUAL Page: 2-21...

  • Page 33: Lan2 Led Indicator

    PULL HI ACTIVE LED PULL HI SPEED LED 2-24. LAN2 ENABLE/DISABLE SELECTION JP2: LAN2 Enable/Disable Selection The selections are as follows: SELECTION JUMPER SETTINGS JUMPER (pins closed) ILLUSTRATION NORMAL DISABLE *** Manufactory default --- NORMAL Page: 2-22 Prox-1650 USER'S MANUAL...

  • Page 34: Wake-On-Modem Connector

    Maskable Interrupt, is used for serious conditions that demand the processor’s immediate attention, it cannot be ignored by the system unless it is shut off specifically. To clear NMI command, user should short the “Clear Watchdog” pin via push button. Prox-1650 USER'S MANUAL Page: 2-23...

  • Page 35: Cpu Fan Connector

    +12V FAN_DETECT 2-28. SYSTEM FAN CONNECTOR CN4 : System Fan connector The pin assignments are as follows: ASSIGNMENT +12V FAN_DETECT CN12 : System Fan connector The pin assignments are as follows: ASSIGNMENT +12V CN12 FAN_DETECT Page: 2-24 Prox-1650 USER'S MANUAL...

  • Page 36: Hard Disk Drive Connector

    Chapter 2 Hardware Configuration 2-29. HARD DISK DRIVE CONNECTOR The Prox-1650 possesses two HDD connectors, IDE1 and IDE2. IDE1: Hard Disk Drive Connector The pin assignments are as follows: ASSIGNMENT ASSIGNMENT IDERST IDEREQ0 IDED7 IDEIOW IDED8 IDED6 IDEIOR IDED9 IDED5...
  • Page 37 ASSIGNMENT IDERST IDEREQ0 IDED7 IDEIOW IDED8 IDED6 IDEIOR IDED9 IDED5 IDE ORDY IDED10 PULL LOW IDED4 IDEACK0 IDED11 IDED3 IRQ14 IDED12 IDED2 IDEA1 IDED13 P66 DETECT IDED1 IDEA0 IDED14 IDEA2 IDED0 IDECS1P IDED15 IDECS3P IDEACTP Page: 2-26 Prox-1650 USER'S MANUAL...
  • Page 38 34-pin flat cable to attach the FDD on the board, the other side is attaches to two FDD. The pin assignments are as follows : ASSIGNMENT ASSIGNMENT DENSEL INDEX MOTEA DRVB DRVA MOTEB STEP WDATA WGATE TK00 WRPRT RDATA SIDE1 DSKCHG Prox-1650 USER'S MANUAL Page: 2-27...
  • Page 39 Line-Out : Line-Out (Speaker) Connector The pin assignments are as follows : ASSIGNMENT LINE-OUT LINE-OUT L LINE-OUT R 2-32. LINE-IN CONNECTOR LINE-IN : Line-In Connector The pin assignments are as follows : ASSIGNMENT LINE-IN LINE-IN L LINE-IN R Page: 2-28 Prox-1650 USER'S MANUAL...
  • Page 40 2-33. MICROPHONE CONNECTOR MIC : Microphone Connector The pin assignments are as follows : ASSIGNMENT MIC-IN 2-34. CD AUDIO-IN CONNECTOR CN1 : CD Audio-in Connector The pin assignments are as follows: ASSIGNMENT CD-IN L CD-IN R Prox-1650 USER'S MANUAL Page: 2-29...
  • Page 41 CN7 : Composite Video (AV) Connector The pin assignments are as follows: ASSIGNMENT CVBS/B/U GROUND 2-37. TV-OUT ADDRESS SETTING JP3 : TV-Out (CH7009) Address Setting The setting is as follows: TV-OUT ADDRESS JUMPER SETTING JUMPER (pin closed) ILLUSTRATION OX76 Page: 2-30 Prox-1650 USER'S MANUAL...
  • Page 42 *** Manufacturing Default is set as TV. 2-39. NTSC OR PAL SELECTION JP4 (2,4,6) : NTSC or PAL Selection The selection are as follows : SELECTION JUMPER SETTING JUMPER ILLUSTRATION NTSC *** Manufacturing Default is set as NTSC. Prox-1650 USER'S MANUAL Page: 2-31...
  • Page 43 Chapter 2 Hardware Configuration 2-40. PANEL LINK (DFP) CONNECTOR CN8 : PanelLink (DFP) Connector The pin assignments are as follows : ASSIGNMENT TX1+ TXC+ TXC- VCC5 TX2+ TX2- TX0+ TX0- 5VHTPLG 5VFTSDA 5VFTSCL Page: 2-32 Prox-1650 USER'S MANUAL...
  • Page 44 Note: To clear CMOS data, user must power-off the computer and set the jumper to “Clear CMOS” as illustrated above. After five to six seconds, set the jumper back to “Normal” and power-on the computer. Prox-1650 USER'S MANUAL Page: 2-33...
  • Page 45 Chapter 2 Hardware Configuration 2-43. MEMORY INSTALLATION The Prox-1650 Embedded Computer support 2 SDRAM banks. DRAM BANK CONFIGURATION DIMM 1 DIMM 2 TOTAL MEMORY 128M 128M 192M 128M 128M 128M 192M 128M 128M 256M 128M 256M 384M 256M 256M 256M...
  • Page 46 CHAPTER SOFTWARE UTILITIES This chapter comprises the detailed information of VGA driver, LAN driver, Sound driver, and flash BIOS update. It also describes on how to install the watchdog timer. Section includes: VGA Driver Utility Flash BIOS Update LAN Driver Utility SOUND Driver Utility Watchdog Timer Configuration Page: 3-1...
  • Page 47 Enclosed with our Prox-1650 package, you will find a CD ROM disk containing all types of drivers we have. As a Prox-1650 user, you will only need the some of files contained in the CD ROM disk, please take note of the...
  • Page 48 3-3-2. To update BIOS : (1) Install “Awdflash.exe” from the CD ROM Disk into your system. (2) Insert the new BIOS file you have obtained from Prox-1650 vendor. (3) Type the pathname to Awdflash.exe and execute the BIOS update with file b50xxxxx.bin...
  • Page 49 After you have completed all the programming, you will see the line: “Reset System or power off to accomplish update process!”. Please turn off or reset the system. Then the Flash BIOS is fully implemented. ′ Page:3-4 Prox-1650 USER S MANUAL...
  • Page 50 Chapter 3 Software Configuration 3-4. LAN DRIVER UTILITY 3-4-1. Introduction The Prox-1650 Mainboard is enhanced with LAN function that can support various network adapters. The content of the LAN driver is found as follows : 1. Windows 9x 2. Windows NT 3.
  • Page 51 5. Insert the LAN Driver disk in Drive A or CDROM drive, and type D:\LAN, and then choose OK button. 6. Follow the remaining instruction, and re-boot your system to complete the installation process. ′ Page:3-6 Prox-1650 USER S MANUAL...
  • Page 52 “D:\Sound\path” refers to the full path to the source files. (3) Click on the OK button or press the ENTER key. (4) Click on the “Next” and OK prompts as they appear. (5) Reboot the system to complete the driver installation. ′ Page:3-7 Prox-1650 USER S MANUAL...
  • Page 53 I/O port 441H, the system will run the command to stop the Watchdog function. In Prox-1650 watchdog function, You must write your program so when it writes I/O port address 443 for enable watchdog and write I/O port address 441 for disable watchdog.
  • Page 54 CHAPTER GREEN PC FUNCTION This chapter gives you the concise information for Green PC Function. Section includes: Power Saving Block Diagram CPU Doze Mode System STANDBY Mode System SUSPEND Mode Page: 4-1...
  • Page 55 4. Fixed disk driver motor will be spin off. 5. Monitor activity according to the setting of Advanced Setup. 6. When system in Suspend mode, only those events set in the Power Management Setup can wake-up system. ′ Page: 4-2 Prox-1650 USER S MANUAL...
  • Page 56 CHAPTER AWARD BIOS SETUP This chapter shows how to set up the Award BIOS. Section includes: Introduction Entering Setup The Standard CMOS Features The Advanced BIOS Features The Advanced Chipset Features Integrated Peripherals Power Management Setup PNP/PCI Configuration PC Health Status Frequency/Voltage Control Load Fail-Safe Defaults Password Setting...
  • Page 57 5-1. INTRODUCTION This chapter will show you the function of the BIOS in managing the features of your system. The Prox-1650 Socket 370 Mainboard is equipped with the BIOS for system chipset from Award Software Inc. This page briefly explains the function of the BIOS in managing the special features of your system.
  • Page 58 You may use the cursor the up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. ′ Page: 5-3 Prox-1650 USER S MANUAL...
  • Page 59 < Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for PM numbers, add 12 to the hour. For example: 4: 30 P.M. You should enter the time as 16:30:00. ′ Page: 5-4 Prox-1650 USER S MANUAL...
  • Page 60 Head – Set the number of read/write heads. c. Precomp - ***Warning! Setting a value of 65535 means no HDD. d. Landing Zone e. Sector – Set the number of sector per track ′ Page: 5-5 Prox-1650 USER S MANUAL...
  • Page 61 BASE MEMORY: Displays the amount of conventional memory detected during boot up. EXTENDED MEMORY: Displays the amount of extended memory detected during boot up. TOTAL MEMORY: Displays the total memory available in the system. ′ Page: 5-6 Prox-1650 USER S MANUAL...
  • Page 62 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 65535 1023 65535 1024 65535 1023 1024 65535 1023 65535 65535 65335 AUTO Award Hard Disk Type Table ′ Page: 5-7 Prox-1650 USER S MANUAL...
  • Page 63 Advanced BIOS Features Setup Screen The “ADVANCED BIOS FEATURES SETUP” allow you to configure your system for basic operation. The user can select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security. ′ Page: 5-8 Prox-1650 USER S MANUAL...
  • Page 64 BOOT UP FLOPPY SEEK: You may enable / disable this item to define whether the system will look for a floppy disk drive to boot at power-on, or proceed directly to the hard disk drive. ′ Page: 5-9 Prox-1650 USER S MANUAL...
  • Page 65 Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely. ′ Page: 5-10 Prox-1650 USER S MANUAL...
  • Page 66 [By CAS# LT] RAS# Timing [Fast] RAS# Precharge Timing [Fast] I/O Channel Check NMI [Disabled] ↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults Advanced Chipset Features Setup ′ Page: 5-11 Prox-1650 USER S MANUAL...
  • Page 67 You may reserve this area of system memory for ISA adapter ROM. When this area is reserved, it cannot be cached. The user information of peripherals that need to use this area of system memory usually discusses their memory requirements. ′ Page: 5-12 Prox-1650 USER S MANUAL...
  • Page 68 IO CHANNEL CHECK NMI: This field enable or disable IO channel check NMI. Before selecting this function, the user should check first that NMI function is enabled as described in chapter 2 (Reset/NMI/Clear Watchdog Selection) ′ Page: 5-13 Prox-1650 USER S MANUAL...
  • Page 69 F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults INTEGRATED PERIPHERALS By moving the cursor to the desired selection and pressing <F1> key, the all options for the desired selection will be displayed for choice. ′ Page: 5-14 Prox-1650 USER S MANUAL...
  • Page 70 Select enabled if the system contains a Universal Serial Bus (USB) controller and you have a USB Mouse. INIT DISPLAY FIRST: This item allows you to decide to active whether PCI Slot or on-chip VGA first. ′ Page: 5-15 Prox-1650 USER S MANUAL...
  • Page 71 This field determine access onboard parallel port controller with which I/O address. PARALLEL PORT MODE: Select an operating mode for the onboard parallel port. The available choices are SPP, EPP, ECP, or ECP+EPA modes. ′ Page: 5-16 Prox-1650 USER S MANUAL...
  • Page 72 Select a logical COM port name and matching address for the third and forth serial ports. Select an address and corresponding interrupt for third and forth serial port. PARALLEL PORT 2 USE IRQ: This item sets the IRQ address of the second parallel port. ′ Page: 5-17 Prox-1650 USER S MANUAL...
  • Page 73 ACPI FUNCTION: Users are allowed to enable or disable the Advanced Configuration and Power Management (ACPI). ′ Page: 5-18 Prox-1650 USER S MANUAL...
  • Page 74 CPU will be shut off. HDD POWER DOWN: When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. ′ Page: 5-19 Prox-1650 USER S MANUAL...
  • Page 75 Enabled, even when the system is in a power down mode. Primary IDE 0 Primary IDE 1 Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D]# ′ Page: 5-20 Prox-1650 USER S MANUAL...

  • Page 76: Pnp/Pci Configuration

    This section covers technical items, which is strongly recommended for experienced users only. PNP OS INSTALLED: This item allows you to determine install PnP OS or not. ′ Page: 5-21 Prox-1650 USER S MANUAL...
  • Page 77 Legacy ISA for devices compliant with the original PC AT bus specifi- cation, PCI/ISA PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture. PCI/VGA PALETTE SNOOP: Leave this field at disabled. ′ Page: 5-22 Prox-1650 USER S MANUAL...

  • Page 78: Pc Health Status

    F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults PC Health Status Setup Screen SHUTDOWN TEMPERATURE: User is allowed to set the temperature on which the system automatically shutdown when reaches or exceeds the temperature set. ′ Page: 5-23 Prox-1650 USER S MANUAL...

  • Page 79: Frequency/Voltage Control

    This setup menu allows you to specify your settings for frequency/voltage control. AUTO DETECT DIMM/PCI CLK: This item allows you to enable or disable auto detect DIMM/PCI Clock. SPREAD SPECTRUM: This item allows you to enable or disable the spread spectrum modulate. ′ Page: 5-24 Prox-1650 USER S MANUAL...

  • Page 80: Load Fail-Safe Defaults

    When you press <Enter> on this category, you get a confirmation dialog box with a message similar to the following: Load Optimized Defaults ( Y/N ) ? N Pressing "Y" loads the default values that are factory setting for optimal performance system operations. ′ Page: 5-25 Prox-1650 USER S MANUAL...

  • Page 81: Password Setting

    PASSWORD DISABLED!!! Press any key to continue... Press the < Enter > key again and the password will be disabled. Once the password is disabled, you can enter Setup freely. ′ Page: 5-26 Prox-1650 USER S MANUAL...

  • Page 82: Save & Exit Setup

    You may always call up the setup program at any time to adjust any of the individual items by pressing the <Del> key during boot up. ′ Page: 5-27 Prox-1650 USER S MANUAL...

  • Page 83: Exit Without Saving

    Quit Without Saving (Y/N)? N ▶PnP/PCI Configura etup ▶PC Health Status Saving ↑↓→← Esc : Quit F9 : Menu in BIOS : Select Item F10 : Save & Exit Setup Abandon all Datas ′ Page: 5-28 Prox-1650 USER S MANUAL...
  • Page 84 Chapter 5 Award BIOS Setup ′ Page: 5-29 Prox-1650 USER S MANUAL...

  • Page 85: Appendix A Expansion Bus

    APPENDIX EXPANSION This appendix indicates the pin assignments. Section includes: ISA BUS Pin Assignment PCI BUS Pin Assignment Page: A-1...
  • Page 86 SD12 -DRQ3 SA15 SD13 -DACK1 SA14 -MASTER SD14 -DRQ1 SA13 SD15 -REFRESH SA12 BCLK SA11 IRQ7 SA10 IRQ6 SA09 IRQ5 SA08 IRQ4 SA07 IRQ3 SA06 -DACK2 SA05 SA04 BALE SA03 SA02 SA01 SA00 ′ Page: A-2 Prox-1650 USER S MANUAL...

  • Page 87: Pci Bus Pin Assignment

    AD30 AD08 C/BE0# AD29 +3.3V AD07 +3.3V AD28 +3.3V AD06 AD27 AD26 AD05 AD04 AD25 AD03 +3.3V AD24 AD02 C/BE3# GNT2# AD01 AD00 AD23 +3.3V +5V(I/O) +5V(I/O) AD22 ACK64# REQ64# AD21 AD20 AD19 ′ Page: A-3 Prox-1650 USER S MANUAL...
  • Page 88 Appendix A EXPANSION BUS ′ Page: A-4 Prox-1650 USER S MANUAL...
  • Page 89 APPENDIX TECHNICAL SUMMARY This section introduce you the maps concisely. Sections include: Block Diagram Interrupt Map RTC (Standard) RAM Bank Timer & DMA Channels Map I / O & Memory Map Page: B-1...

  • Page 90: Appendix B Technical Summary Block Diagram

    Appendix B Technical Summary BLOCK DIAGRAM Prox-1650 USER ′ S MANUAL Page: B-2...

  • Page 91: Interrupt Map

    Cascade for IRQ 8-15 Serial port 2 Serial port 1 Parallel Port 2 Floppy Disk adapter Parallel port 1 RTC clock Available Serial port 3 Serial port 4 Available Math coprocessor Hard Disk adapter Available Prox-1650 USER ′ S MANUAL Page: B-3...

  • Page 92: Rtc (Standard) Ram Bank

    Second alarm Minutes Minutes alarm Hours Hours alarm Day of week Day of month Month Year Status register A Status register B Status register C Status register D 0Eh-7Fh 114 Bytes of User RAM Prox-1650 USER ′ S MANUAL Page: B-4...

  • Page 93: Timer & Dma Channels Map

    Timer Channel Map : Timer Channel Assignment System timer interrupt DRAM Refresh request Speaker tone generator DMA Channel Map : DMA Channel Assignment Available Available Floppy Disk adapter Available Cascade Available Available Available Prox-1650 USER ′ S MANUAL Page: B-5...

  • Page 94: I/O & Memory Map

    RTC Controller NMI & RTC controller RTC RTC Controller RTC Controller RTC Controller NMI & RTC controller RTC RTC Controller RTC Controller RTC Controller NMI & RTC controller RTC RTC Controller RTC Controller Prox-1650 USER ′ S MANUAL Page: B-6...
  • Page 95 2. Only if IDE Standard I/O space is enabled for Secondary Drive. Otherwise, the target is PCI. 3. If POS_DEC_EN bit is enabled, reads from F0h will not be decoded by the ICH2. If POS_DEC_EN is not enabled, reads from F0h will forward to LPC. Prox-1650 USER ′ S MANUAL Page: B-7...
  • Page 96 Bit 0 in FWH Decode Enable 2 FF00 0000h-FF0F FFFFh Register is set Anywhere in 4GB range D110 LAN Controller Enable via BAR in Device 29:Function 0 (D110 LAN Controller) All Other None Prox-1650 USER ′ S MANUAL Page: B-8...

  • Page 97: Appendix C Trouble Shooting

    APPENDIX TROUBLE SHOOTING This section outlines the error messages that may occur when you operate the system. It also gives you the suggestions on solving the problems. Section includes: Trouble Shooting for Error Messages Trouble Shooting for POST Code Page: C-1...

  • Page 98: Trouble Shooting For Error Messages

    Then reboot the system. DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP : Type of diskette drive installed in the system is different from the CMOS definition. Run Setup to reconfigure the drive type correctly. ′ Page: C-2 Prox-1650 USER S MANUAL...
  • Page 99 Cannot initialize controller. Make sure the cord is correctly and firmly installed in the bus. Be sure the correct hard drive is selected in Setup. Also check to see if any jumper needs to be set correctly on the hard drive. ′ Page: C-3 Prox-1650 USER S MANUAL...
  • Page 100 Memory has been added or removed since the last boot. In EISA mode use Configuration Utility to reconfigure the memory configuration. In ISA mode enter Setup and enter the new memory size in the memory fields. ′ Page: C-4 Prox-1650 USER S MANUAL...
  • Page 101 The board installed is not responding to the ID request, or no board ID has been found in the indicated slot. Note: When this error appears, the system will boot in ISA mode, which allows you to run the EISA Configuration Utility. ′ Page: C-5 Prox-1650 USER S MANUAL...
  • Page 102 Unable to recalibrate fixed disk. Hard Disk(S) Fail (08) : Sector Verify failed. Keyboard is locked out – Unlock the key : BIOS detect the keyboard is locked. P17 of keyboard controller is pulled low. ′ Page: C-6 Prox-1650 USER S MANUAL...
  • Page 103 BIOS ROM checksum error – System halted : The checksum of ROM address F0000H-FFFFFH is bad. Memory test fail : BIOS reports the memory test fail if the onboard memory is tested error. ′ Page: C-7 Prox-1650 USER S MANUAL...

  • Page 104: Trouble Shooting For Post Codes

    Reserved. Initial Superio_Early_Init switch. 03h : 04h : Reserved. 05h : 1. Blank out screen 2. Clear CMOS error flag 06h : Reserved 07h : 1. Clear 8042 interface 2. Initialize 8042 self-test ′ Page: C-8 Prox-1650 USER S MANUAL...
  • Page 105 Also set real-time clock power status, and then check for override. Reserved 13h : 14h : Program chipset default values into chipset. Chipset default values are MODBINable by OEM customers. Reserved 15h : 16h : Initial Early_Init_Onboard_Generator switch. ′ Page: C-9 Prox-1650 USER S MANUAL...
  • Page 106 PCI & DIMM slots. 5. Early PCI initialization: -Enumerate PCI bus number -Assign memory & I/O resource -Search for a valid VGA device & VGA BIOS, and put it into C000:0. ′ Page: C-10 Prox-1650 USER S MANUAL...
  • Page 107 2Dh : 2. Put information on screen display, including Award title, CPU type, CPU speed … Reserved 2Eh : 2Fh : Reserved Reserved Reserved Reserved Reset keyboard except Winbond 977 series Super I/O chips. ′ Page: C-11 Prox-1650 USER S MANUAL...
  • Page 108 Reserved 3Eh : Test 8259 interrupt mask bits for channel 1. Reserved 3Fh : Test 8259 interrupt mask bits for channel 2. Reserved Reserved Test 8259 functionality. Reserved Reserved Reserved Initialize EISA slot ′ Page: C-12 Prox-1650 USER S MANUAL...
  • Page 109 53h : 54h : Reserved 55h : Display number of processors (multi-processor platform) Reserved 56h : 57h : 1. Display PnP logo 2. Early ISA PnP initialization -Assign CSN to every PnP device. ′ Page: C-13 Prox-1650 USER S MANUAL...
  • Page 110 Reserved 64h : Reserved Initialize PS/2 Mouse 65h : 66h : Reserved 67h : Prepare memory size information for function call: INT 15h ax=E820h 68h : Reserved 69h : Turn on L2 cache. ′ Page: C-14 Prox-1650 USER S MANUAL...
  • Page 111 Detect & install all IDE devices: HDD, LS120, ZIP, CDROM….. 76h : Reserved Detect serial ports and parallel ports 77h : 78h : Reserved 79h : Reserved Detect and install co-processor 7Ah : ′ Page: C-15 Prox-1650 USER S MANUAL...
  • Page 112 4. Setup ACPI table at top of memory. 5. Invoke ISA adapter ROMs. 6. Assign IRQs to PCI devices. 7. Initialize APM. 8. Clear noise of IRQs. Reserved 86h : 87h : Reserved ′ Page: C-16 Prox-1650 USER S MANUAL...
  • Page 113 96h : 2. Build and update ESCD. 3. Set CMOS century to 20h or 19h. 4. Load CMOS time into DOS timer tick. 5. Build MSIRQ routing table. FFh : Boot attempt (INT 19h) ′ Page: C-17 Prox-1650 USER S MANUAL...
  • Page 114 Appendix C Trouble Shooting PRINTED IN TAIWAN ′ Page: C-18 Prox-1650 USER S MANUAL...
