Marvel 80RD-BB-O Datasheet

www.dexpress.com
This Data Sheet Includes Information On
Marvel
• Product Model Number (s):
Refrigerators:
80RD-BB-O and 80RD-WW-O
• Dimensions (Actual Size)
Overall depth NOT including custom panel:
Depth NOT including drawer front:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Drawer projection at full extension:
Recommended opening width:
Recommended minimum opening depth:
Recommended opening height:
• Additional Information
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Shipping weight: 195 pounds.
• U.L. Listed.
• MUST be anchored to prevent tipping forward with
drawers extended.
• Requires two (2) custom overlay panels, see page 2.
• 80RD-BB-O : Black cabinet, black drawer front.
• 80RD-WW-O : White cabinet, white drawer front.
Accessories:
• Gastronorm Storage System 42245442 Fits top
drawer.
• Gastronorm Storage System 42245443 Fits bottom
drawer.
• Drawer divider for top drawer: 42245446
• Drawer divider for bottom drawer: 42245447
See page 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
•
•
23 3/8"
22"
35"
34 1/4"
34"
Width: 29 7/8"
3"
26"
30"
24"
34 1/2"
•
318
Fax on Demand (925) 284-3558
(not to scale)
35" max
34" min

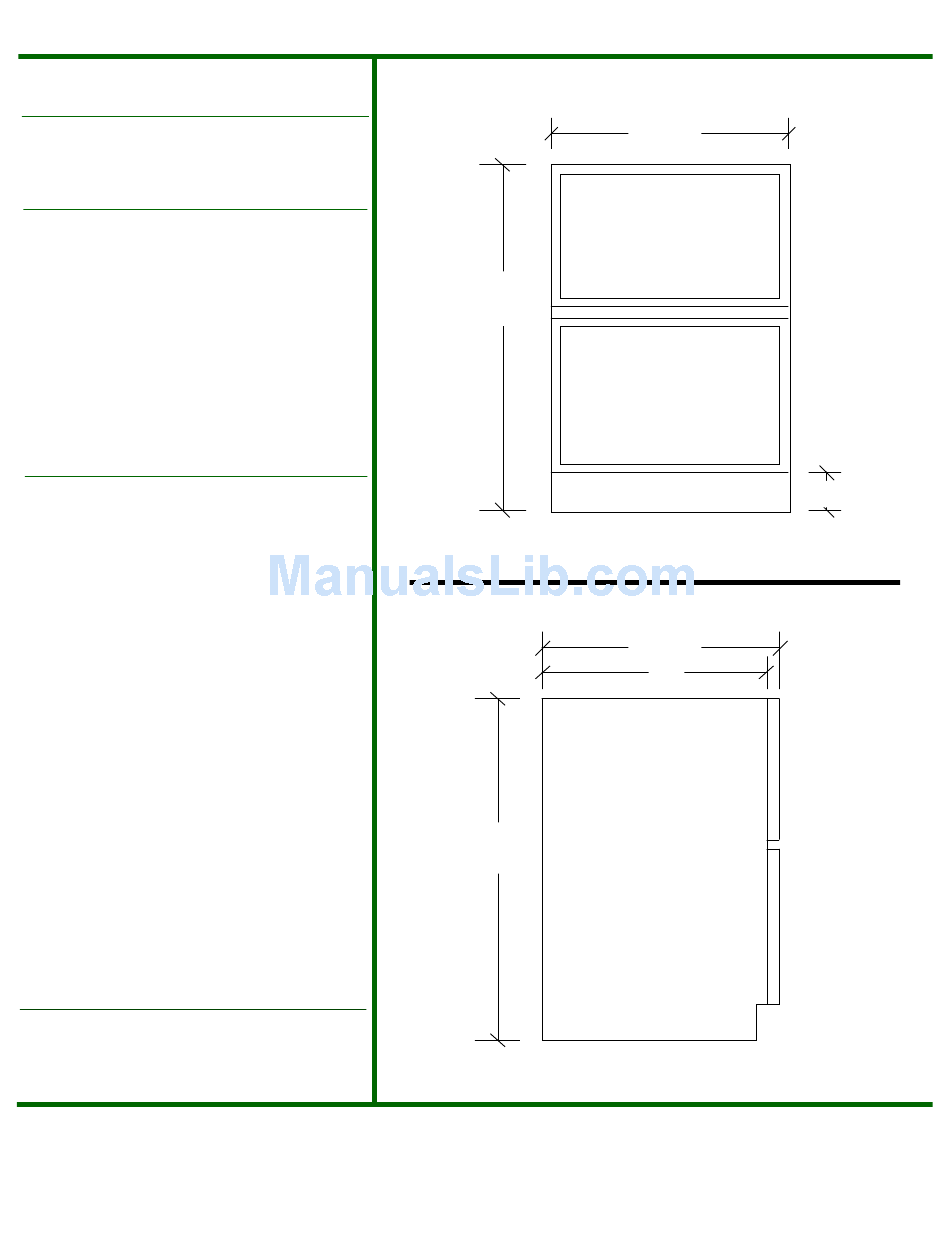

Side View

35" max
(not to scale)
34" min
• Call Dimension Express if you have any questions at (800) 940-2059 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of each quarter at 12:01am •
29 7/8"
Front View
23 3/8"
22"
BN • A318B149 • • 070612 • 151532 • 76401
3"
