Summary of Contents for Aseko PP60 pH

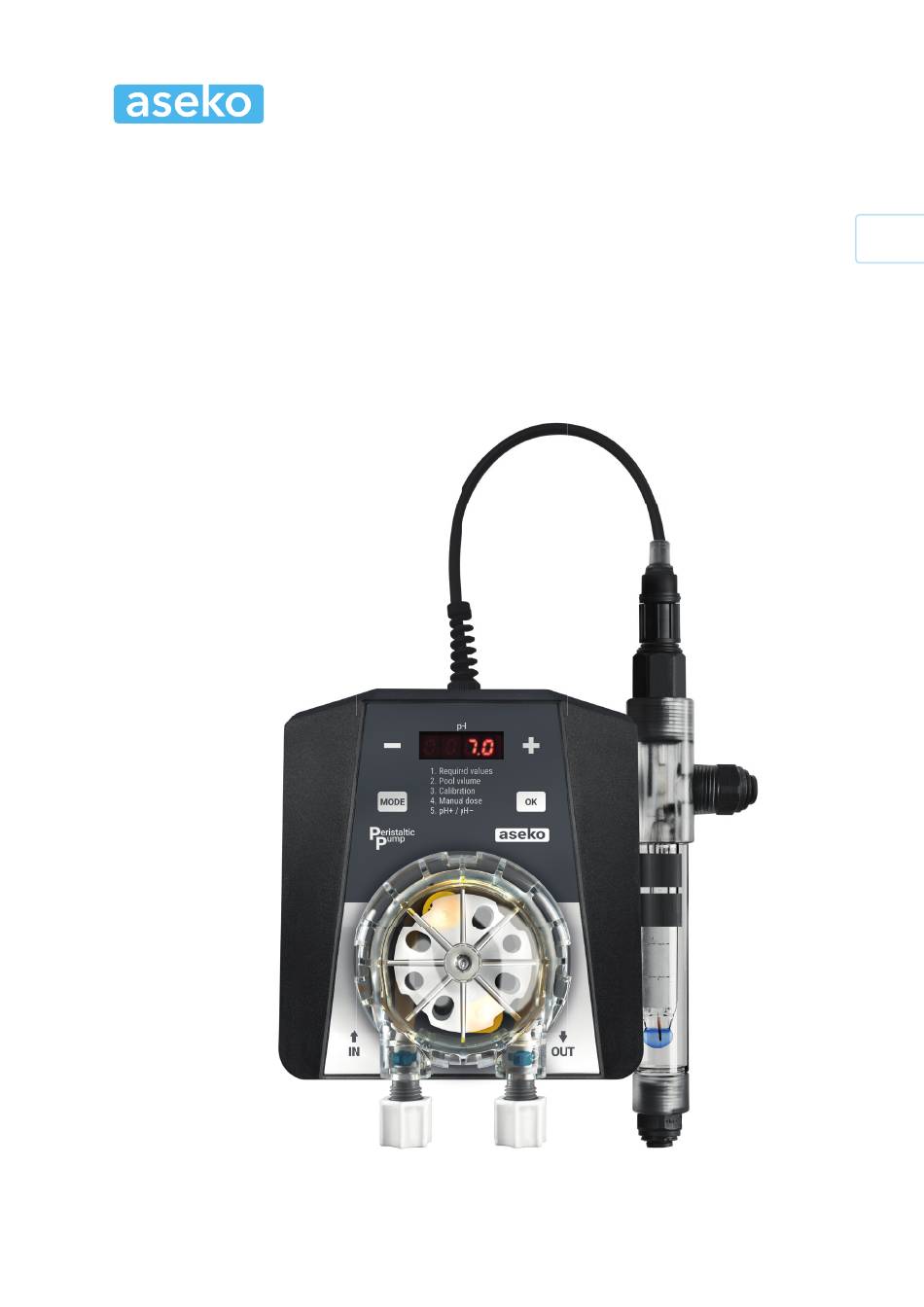

- Page 1 USER’S MANUAL PP60 pH PERISTLATIC PUMP FOR pH REGULATION www.asekopool.com...
-
Page 2: General Safety Information
Access to the system must be prevented for insu ciently qualifi ed persons, e.g. via access codes and passwords. Potential overdosing of chemical agents Despite PP60 pH® comprehensive safety functions, it is possible that a probe failure and other errors could lead to an overdosing of chemical agents. Potential consequence: Injury, heavy material damage. •... - Page 3 Handling chemicals for pool water treatment The chemicals used with the PP60 pH must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents.
- Page 4 What’s in the box PP60 pH #13260 Peristaltic pump Peristaltic pump pH probe Long Life pH probe Long Life #12117 #12012 pH probe Long Life Injecrion valve Suction tube weight #12023 #12012 #12005 Probe wrench Measuring Water Valve 2 pcs Dowels and screws PE Tube 1/4”...
- Page 5 Accessories pH - Bu er 7,00 Fotometr Vlepovací zátka se závitem 1/4” # 13076 #12065 #12134 Original aseko chemicals pH MINUS 20l pH MINUS 5l #12130 #12131 pH PLUS 20l pH PLUS 5l #12120 #12136...
-
Page 6: Technical Information
The PP60 pH is composed of a control unit, a measuring probe, and a dosing pump with a maximum pump power of 60 ml / min. -
Page 7: Probe Installation
Connect the connector and lock it by tightening a connector ring. After probes have been inserted, slightly tightened and connectors have been connected, PP60 pH is ready for connection to the water system of your pool. WARNING: Only hand tighten the probes or use the attached plastic wrench socket for probes. - Page 8 2. to non-pressure (overfl ow tank) 3. upstream of fi lter pump After the water inlet has been connected and opened, your PP60 pH is ready to measure and adjust the pH and Cl value in your pool so as to achieve the required values.
- Page 9 POOL WATER INLET Max pressure 1 Bar THE WATER OUTLET CAN BE Sampling point REALISED: for callibration Coagulation mixer 1. downstream of fi ltration 2. to non-pressure (overfl ow tank) FROM POOL Besgo TO POOL Heating...
- Page 10 Pool Chemicals Connection At this step is necessary to connect the injecting valves of individual chemicals to the dosing pumps and dosed agents. Place the injecting valve in the T-joint, blinded with the DN50 G1/4” threaded plug #12134. Cut the PE tube at 90 ° angle to ensure proper fi tting. •...
- Page 11 Max 8 m Max 8 m Sampling point Coagulation mixer for callibration FROM POOL Besgo TO POOL Heating...
-
Page 12: Initial Start
Initial start Power connection PP60 pH is switched on by connecting to the power supply. PP60 pH power supply must be connected together with the power supply of the circula- tion pump. Switching o the circulation pump must switch o the PP60 pH, otherwise inaccurate measurement and incorrect dosing would occur. -
Page 13: Error Messages
Error messages Agent Run Out • Check liquid levels on a regular basis, refi ll in time. Dosing Pump does not Dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required. - Page 14 • Insert the lubricated hose into the cassette. • Place the cover cassette back on PP60 pH and turn it clockwise to lock it. • Use new nuts, which are part of the replacement hose set, for connection of the PE tube.
- Page 16 USER’S MANUAL PP60 pH www.asekopool.com...
