- Page 1 Automa'c Pool Water Care system ASIN Aqua PROFI User’s Manual...
- Page 2 General safety informa9on This user manual has basic informa'on that should be observed during assembly, start-up, opera'on, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Addi'onally, all further safety informa'on in this document absolutely must be observed.
- Page 3 Gaseous chlorine produced from dosing in standing water if dosing outputs are not locked via the filter pump If the flow switch is stuck or experiences another error, there is a risk of dosing into standing water. Poisonous chlorine gas can be yielded when sodium hypochlorite and pH minus come together. Poten'al consequence: Death or the gravest degree of injury, heavy material damage.
- Page 4 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protec've safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
-
Page 5: Main Functions

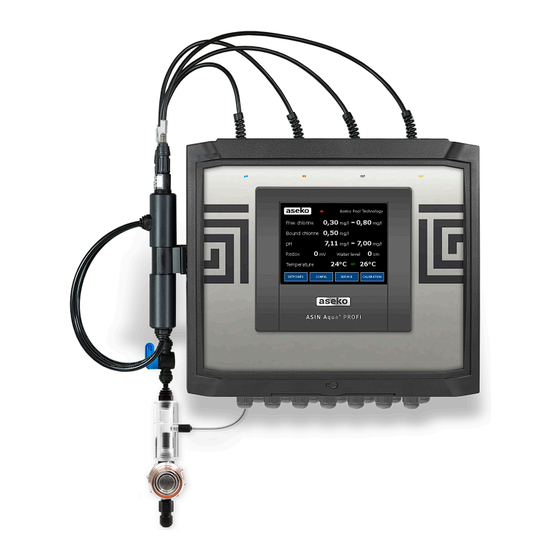

ASIN Aqua PROFI is our top-of-the-line device for professional use which automa'cally measures and controls your pool. ASIN Aqua PROFI Measure and control pH, free and total chlorine, REDOX poten'al, temperature, water level. ASIN Aqua PROFI is a compact device consis'ng of the control unit, measuring probes and terminal box for connec'on of all externals. - Page 6 Controlled values free chlorine, pH, temperature, level Output Display, RS485 Memory capacity 4000 records What do you receive in your box: ASIN Aqua PROFI 1 pc Water flow control 1 pc Free chlorine probe 1 pc pH probe 1 pc...
- Page 7 (fig. 1) • If you want to control filtra'on pump by ASIN Aqua PROFI make the electric connec'on by the diagram fig. 2, 3 and 4. Otherwise connect the power supply. •...
-
Page 8: First Start
filtra'on plant. When you switch on the ASIN Aqua PROFI with the main switch on the front side. You will see main screen. Measured values are displayed together with some other parameters. The mark “house” in the upper row indicates the flow to the probes. - Page 9 SETTPOINTS Here enter 0 at Chlorine and 7.0 at pH, select the required Temperature and non-stop opera'on of the filtra'on plant (e.g. Time 1 from 00:00 to 24:00). In the second window Level 0 the buffer tank is empty, filling pump shuts down.
- Page 10 Send data every - you can set period in which the data are transferred. Wait 9me - is the 'me between doses in which ASIN Aqua PROFI does not regulate. The recommended 'me is 4 – 6 minutes. Into pH and Cl concentra9on insert the concentra'ons featured on the labels of chemicals.
- Page 11 Menu SERVICE is used to check the system. By pressing par'cular items you can ac'vate the relays. ASIN Aqua PROFI error messaging The agent has run out. • Check the chlorine and pH agents regularly so that they ...
- Page 12 Opera9on For best possible results with ASIN Aqua PROFI it is necessary to let it operate at least 8 hours a day. The opera'on with frequent interrup'ons disables the exact measuring of the chlorine content. In the automa'c mode the pool system is controlled according to your SETTPOINTS. In this mode during the dosing of chemical agents the filtra'on plant must be in opera'on.
-
Page 13: Spare Part List
Maintaining ASIN Aqua PROFI The ASIN Aqua requires regular visual inspec'on and maintenance to ensure op'mal performance. The table below gives a list of areas to be regularly checked and recommenda'ons for replacement 'me. Dosing valves of the chlorine disinfec9on: Check your valves regularly for blockages, damaged rubber seals and the build up of limescale. - Page 14 Item Maintenance Procedure Recommenda'on Change your injec'on valves every pH and Check your valves regularly for blockages, Chlorine damaged rubber seals and the build up 2 years for private pool use or every 1 year for Dosing Valves of limescale.
- Page 15 Fig. 1. Connec'on Membrane pumps Water intake to the probes Automatic pool water filling Water output Level meter Alternatively: • Peristaltic pumps pH liquid injection Thermometer • Vacuum chlorine dosing system • Electrolysis Disinfection injection External display Flocculant injection...
- Page 16 Fig. 2. The terminal box Open relais (max. 12 A) Outputs 12V Inputs Outputs 12 V Open relais (max. 12 A) B Ext.display RS485 pH- pump pH- pump A Ext.display RS485 Disinfec'on pump Disinfec'on pump Pulse flowmeter, unoccupied Flocculant pump 20 Flocculant pump pH+ pump pH+ pump...
- Page 17 Fig. 3. Wiring of the 12 Vdc dosing pumps...
- Page 18 Fig. 4. Wiring of the 230 Vdc dosing pumps...
