Summary of Contents for Aseko ASIN Aqua NET REDOX
- Page 1 Aseko Pool Technology ASIN Aqua ® asekopool.com...
- Page 2 ASIN Aqua ASIN Aqua NET...
- Page 3 USER’S MANUAL ASIN Aqua NET REDOX # 12035 ASIN Aqua NET CLF # 12036 ASIN Aqua NET DOSE # 12034 ASIN Aqua NET...
-
Page 4: What You Receive In Your Box
What you receive in your box ASIN Aqua PE Tube 1/4” Tube Weight 2 pc Water Valve 2 pc Injection Valve 2 pc Screws and dowels Sharp knife Flowmeter pH probe pH probe Filter CLF chlorine free probe CLF chlorine free probe CLF chlorine free probe or or or Redox probe... -
Page 5: Table Of Contents
........ -
Page 6: General Safety Information
General safety information This user manual has basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. - Page 7 The chemicals used with the ASIN Aqua must be handled in a safe manner • Check for an updated version of the user manual or additional to prevent damage or personal harm. Aseko recommends you always documentation available for the relevant functions. use personal protective safety equipment when handling the pH and •...
-
Page 8: About Asin Aqua
About ASIN Aqua ASEKO’s ASIN Aqua gives you pool clean and sparkling water with the minimum Power supply 230 V / 50 Hz amount of chemicals. By directly measuring and controlling the free Power consumption 14 VA chlorine content or redox potential of your pool water with advanced CLF... -
Page 9: Understanding Asin Aqua

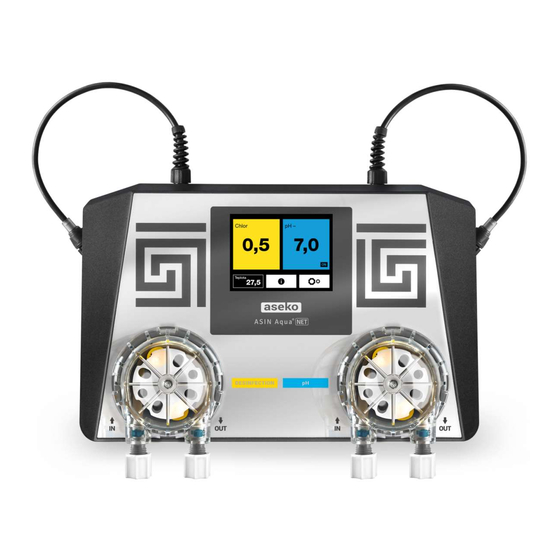

Understanding ASIN Aqua Touchscreen display Cable for Redox Cable for pH probe or CLF probe Redox / CLF probe pH probe housing housing Peristaltic pump Peristaltic pump Peristaltic pump Peristaltic pump for pH agent for pH agent for desinfection agent for desinfection agent Tube tting Tube tting... -
Page 10: Installing Asin Aqua
WA R N I N G : Installing ASIN Aqua Ensure pool water is chemically clean and free from Install your ASIN Aqua in an environment free from dust and high humidity. Mount dirt before installing your ASIN Aqua. your ASIN Aqua on the wall with at least 30 cm of free space around all sides. - Page 11 For example to Buffer connected before tank, skimmer or waste. filtration pump. Ø 6,2 mm Ø 1 mm For best results, we recommend use of original ASEKO or similarly based water treatment agents. Current protector 30 mA WARNING: Use of hydrochloric acid based agents is strictly prohibited!
-
Page 12: Step 1
Step 1 Instaling the Probes CLF probe The CLF or Redox probe housing is on the left. The pH probe housing is on the right. These probes are used for the analysis of the content of the water in your pool. The probes allow for the accurate detection of acidity levels and the potential voltage within your pool water. -
Page 13: Step 2
Thread = G 1/4". For the water connection to your ASIN Aqua, Aseko provides water valve with a unique Speed t connector. To connect, push the clear plastic tube into the Speed t connector. To remove the tube from the connector, push the collet in, and pull on the tube. -
Page 14: Step 3
Step 3 Connecting the disinfection agent and pH agent Dosage Tubes Connect the pH injection valve to the pool water pipe UPSTREAM from the chlorine injection valve. This reduces limescale build up. Cut your clear plastic tube at 90 degree angle to ensure proper tting. Use a sharp knife or razor to cut the tubes cleanly. -
Page 15: Step 4
Language setting Step 4 Connecting the Power Supply In ASIN Aqua you can choose from di erent languages: Czech First start: English Connect ASIN Aqua to power supply 230 V / 50Hz protected by RCD. German ASIN Aqua have no ON/OFF switch after connection to power supply is automatically on. -
Page 16: Testing Asin Aqua Installation
Testing ASIN Aqua Installation WA R N I N G : Any blocks, bubbles, or leaks in the clear plastic Select START in the yellow box tube prevent ASIN Aqua from operating. The clear plastic tubing on the left of the screen. allows you to see liquid ow to and from your ASIN Aqua. -
Page 17: Manual Dosing
Set the parameters of your swimming pool Select START in the blue box on the right of the screen. This starts the pH Every swimming pool is unique. Temperature, size, location and water pump on the right of your ASIN Aqua. hardness in uence how ASIN Aqua controls your pool water and ne- While the pump is running check all tunes it. -
Page 18: Ph Settings
From the home screen select SETTINGS then PARAMETERS. If you do not allow the probes to stabilize in water before calibrating and using your system, ASEKO cannot ensure the accuracy of ASIN Aqua. Re-check pH calibration Select the blue pH button on the right. - Page 19 From the start screen of your ASIN Aqua select SETTINGS and then CALIBRATION. Select the blue pH button on the right of the screen. Compare the reading given on your ASIN Aqua with the reading If the manually test value is If the di erence between manually test taken manually.
-
Page 20: Choose The Function Of Your Asin Aqua
Choose the function 1) If You have free chlorine probe of Your ASIN Aqua Your Asin Aqua is already installed, connected to pool water and to chemical agents. Set up the chlorine level to 0,0 mg/l Free chlorine probe CLF Set up the pH value to 7,0 ... - Page 21 Select the yellow chlorine box on the left of the screen. If the probe is The first CLF calibration broken or have any other malfunction the following noti cation is given. Using the Aseko test Use aseko tester Displayed value...
-
Page 22: Redox Probe Rx
2) If You have redox probe Fine tune Use aseko tester Displayed value Manuallly check Your Asin Aqua is already installed, connected the chlorine level in to pool water and to chemical agents. the pool water. Set up the sanitation level on 650 mV ... -
Page 23: Per Hour Or Per Day
3) If you use time dosing Fine tune Use aseko tester Displayed value without probe Manually check the chlorine or active oxygen Your Asin Aqua is already installed, connected to pool water level in the pool water. and to chemical agents. -
Page 24: Safety Functions
Security features pH value change too fast This can be done by water lling directly ASIN Aqua is equipped with safety functions that protect into the skimmer. In this case, ASIN Aqua the swimming pool against overdosing. stop the pH agent dosage for 2 hours ASIN Aqua uses the following security features: and when the pH has become stable, ASIN Aqua starts again of regulation. -
Page 25: Asin Aqua Net
IT specialist for help. Data are sent in the intervals of 10 seconds to the address pool.aseko.com, PORT 47524, the route must not be blocked by the fi rewall. Powerline LAN Powerline LAN přes zásuvku 230V... -
Page 26: Pool Live
Pool Live The app Pool Live shows data from the pool in real time on Pool LIVE the screen of your iOS or Android device. Allows set noti ca tions when set parameters are exceeded. Shows actual parameters and also history. App is available for iOS and Android Enter serial number of the You can set the noti cation when... -
Page 27: Pool.aseko.com
Web application for detail monitoring of water quality by using well arranged graphs. Shows all measured data and actions up to 30 days back. All operations are monitored in real-time. Overview of all devices. Overview of all devices. Login / registration screen. -
Page 28: External Touch Display
External touch display Thermometer connection Showing measured values of your pool water, humidity and temperature of the Install temp. holder to the pipe pool room where the display is installed and you can also change setup value of pH system then insert the thermometer. -
Page 29: Maintaining Asin Aqua
Maintaining ASIN Aqua Pump Tube replacement It is recommended to change the tube once a year in order to prevent The ASIN Aqua requires regular visual inspection and maintenance the possible failure. The tube change is made in the following way: to ensure optimal performance. - Page 30 Item Maintenance Procedure Recommendation Item Maintenance Procedure Recommendation Check your valves regularly for blockages, damaged rubber seals Remove your CLF probe from and the build up of limescale. your ASIN Aqua and clean Check for damage to the o any dust and debris. clear plastic tubes.
-
Page 31: Asin Aqua Error Messaging
ASIN Aqua error messaging After 30/60 After 15/30 doses of chlorine doses of pH agent without agent without probe response probe response displays this displays this error message. error message. The agent has run out. Water does not flow to the probes. Check the chlorine and pH agents regularly so that they Check the clear plastic tubes connection to your ... - Page 32 Aseko Pool Technology ASIN Aqua ® asekopool.com...
