MITRE SAW STAND
Introduction
To get the most out of your new mitre saw
stand, please read this instruction manual
before use. Please also save the instructions
in case you need to refer to them at a later
date.

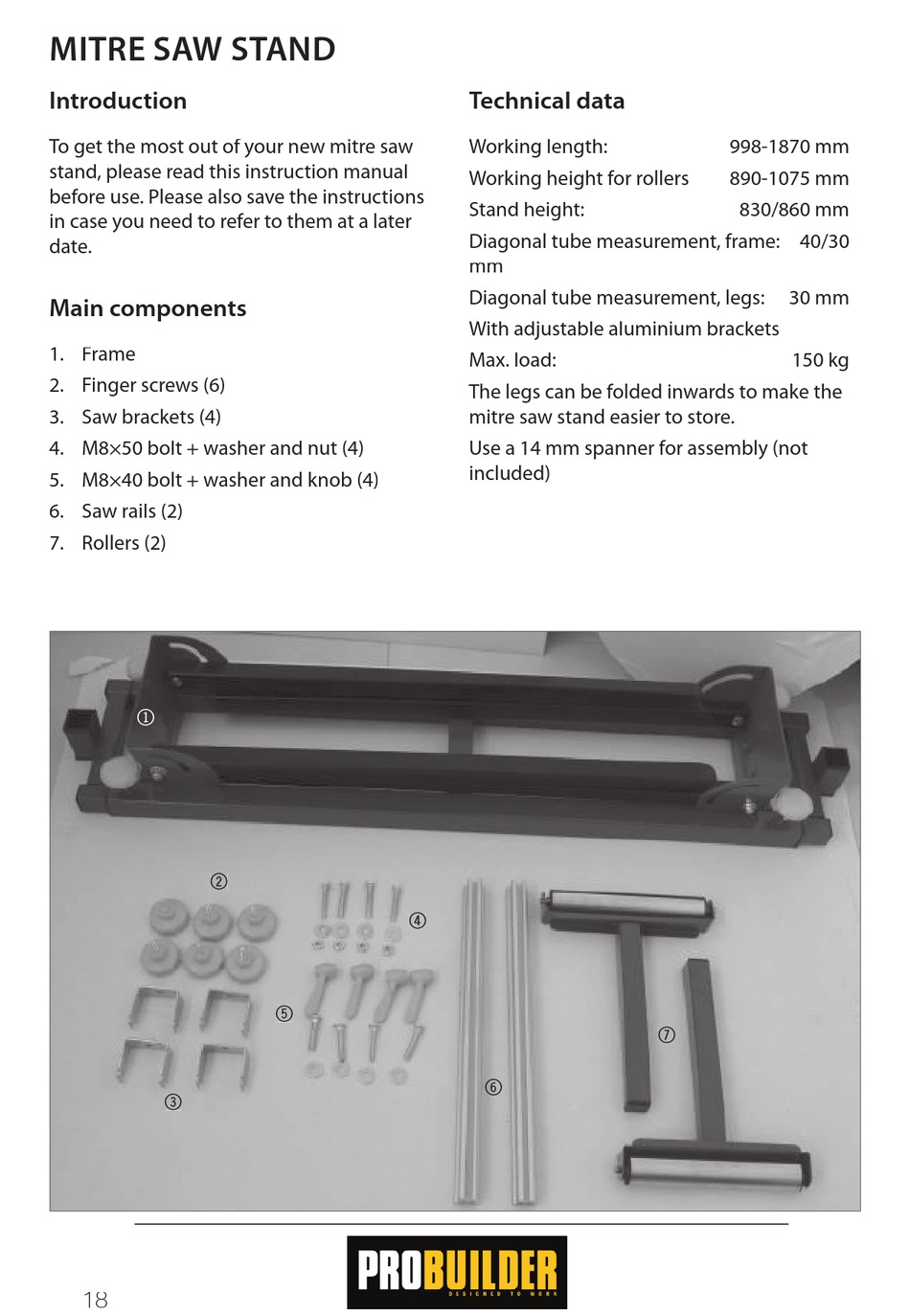

Main components

1. Frame
2. Finger screws (6)
3. Saw brackets (4)
4. M8×50 bolt + washer and nut (4)
5. M8×40 bolt + washer and knob (4)
6. Saw rails (2)
7. Rollers (2)
1
2
3
18
4
5

Technical data

Working length:
Working height for rollers
Stand height:
Diagonal tube measurement, frame: 40/30
mm
Diagonal tube measurement, legs:
With adjustable aluminium brackets
Max. load:
The legs can be folded inwards to make the
mitre saw stand easier to store.
Use a 14 mm spanner for assembly (not
included)
6
998-1870 mm
890-1075 mm
830/860 mm
30 mm
150 kg
7
