1. Introduction

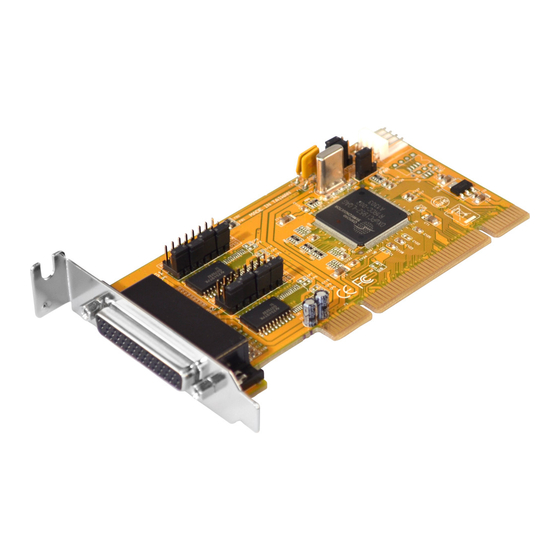

Congratulations on purchasing this high performance PCI multi serial
card. The card is high speed PCI bus based and plug-and-play
compliant. Its serial ports are fully 16C950 UART compatible with most
of the RS232C devices available in the market.
Features:
Full PCI 32-bit 133Mbytes/sec Transfer Speed
Fully Compliant with PCI Specifications, Revision 3.0
16C950 UARTs, Fully Compatible with 16C550, Baud Rate up to
115.2Kbps
Supports 2S RS232 with a DB44 Octopus Cable over one single PCI
slot.
Supports Win98/Me, NT, Windows 2000, XP, Vista, Win 7 and Linux
2. Board Layout
Normal Bracket
Low Profile
Bracket
To S1,S2
Octopus
Cable

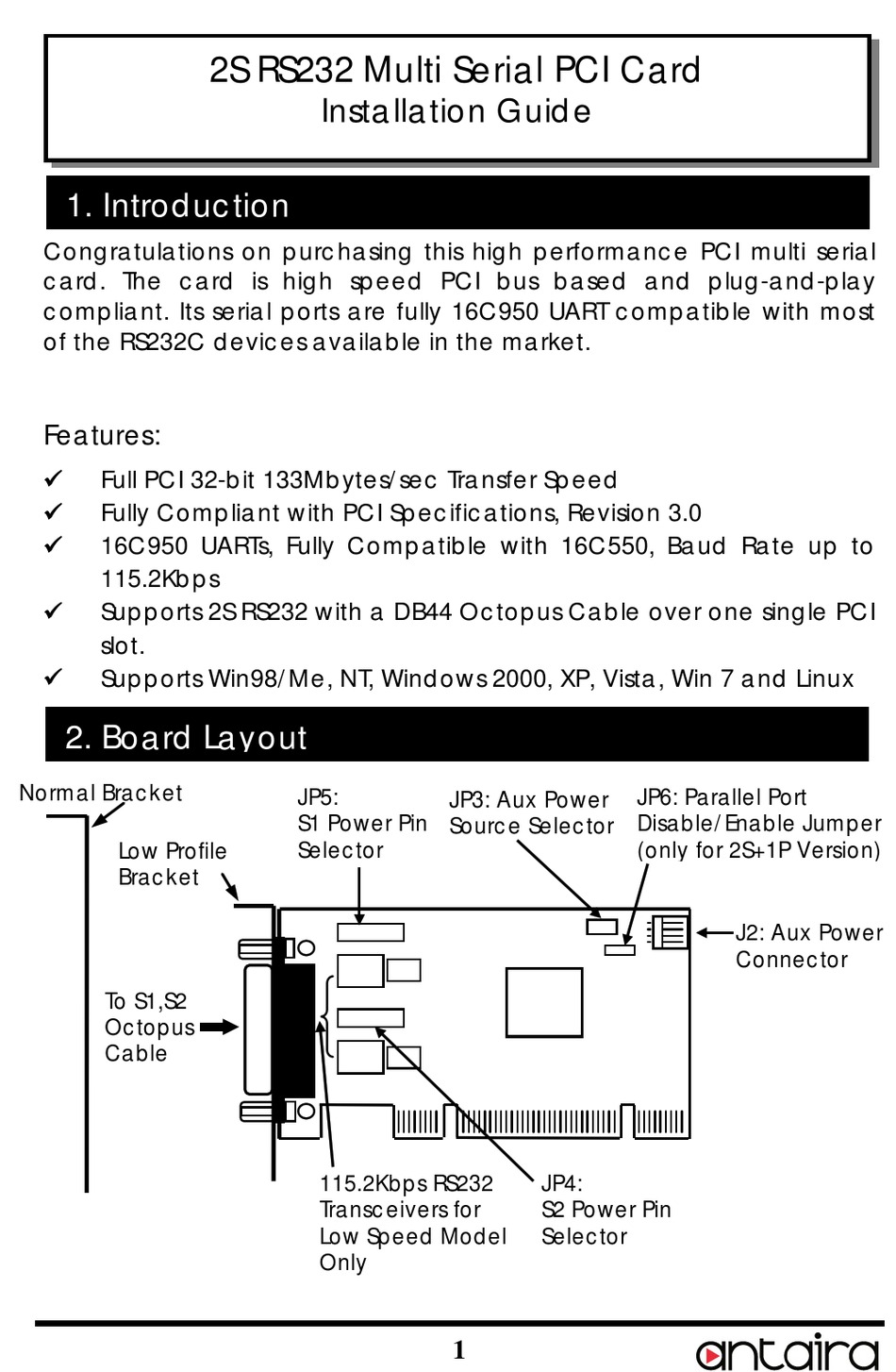

2S RS232 Multi Serial PCI Card
Installation Guide
JP5:
S1 Power Pin
Selector
115.2Kbps RS232
Transceivers for
Low Speed Model
Only
JP3: Aux Power
Source Selector
JP4:
S2 Power Pin
Selector
1
JP6: Parallel Port
Disable/Enable Jumper
(only for 2S+1P Version)
J2: Aux Power
Connector
Advertisement
Table of Contents
Related Manuals for ANTAIRA SC-102AL-1
Summary of Contents for ANTAIRA SC-102AL-1
- Page 1 2S RS232 Multi Serial PCI Card Installation Guide 1. Introduction Congratulations on purchasing this high performance PCI multi serial card. The card is high speed PCI bus based and plug-and-play compliant. Its serial ports are fully 16C950 UART compatible with most of the RS232C devices available in the market.
- Page 2 PCI Multi Serial I/O Card 3. Jumper Settings Aux power connector, it can be connected to standard power supply to provide +5V or +12V power to both DB9 connectors. JP3: Power Source Selector for DB9 connectors, it is used to ...
- Page 3 PCI Multi Serial I/O Card Default: All jumpers are at “DIS” positions, no power supplied to DB9 connector PIN1 PIN4 PIN8 PIN9 +12V Example: If you want to supply +12V over pin 9 of the external DB9 connectors. Here is the jumper position for you. Pin 9 has +12V power PIN1 PIN4...
- Page 4 PCI Multi Serial I/O Card 5. Software Installation Note: PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it will cause problems because the INF files will be conflict in this case. Instead, please browse to the correct location (folder) manually to make sure the correct drivers are chosen and installed correctly.
- Page 5 PCI Multi Serial I/O Card Click〝 Next 〞to continue, and click〝 Finish 〞to complete the installation. To check the Installation, right click on〝My Computer〞and choose 〝Manage〞 . Choose 〝 Device Manager 〞 and double click 〝 Ports 〞.
