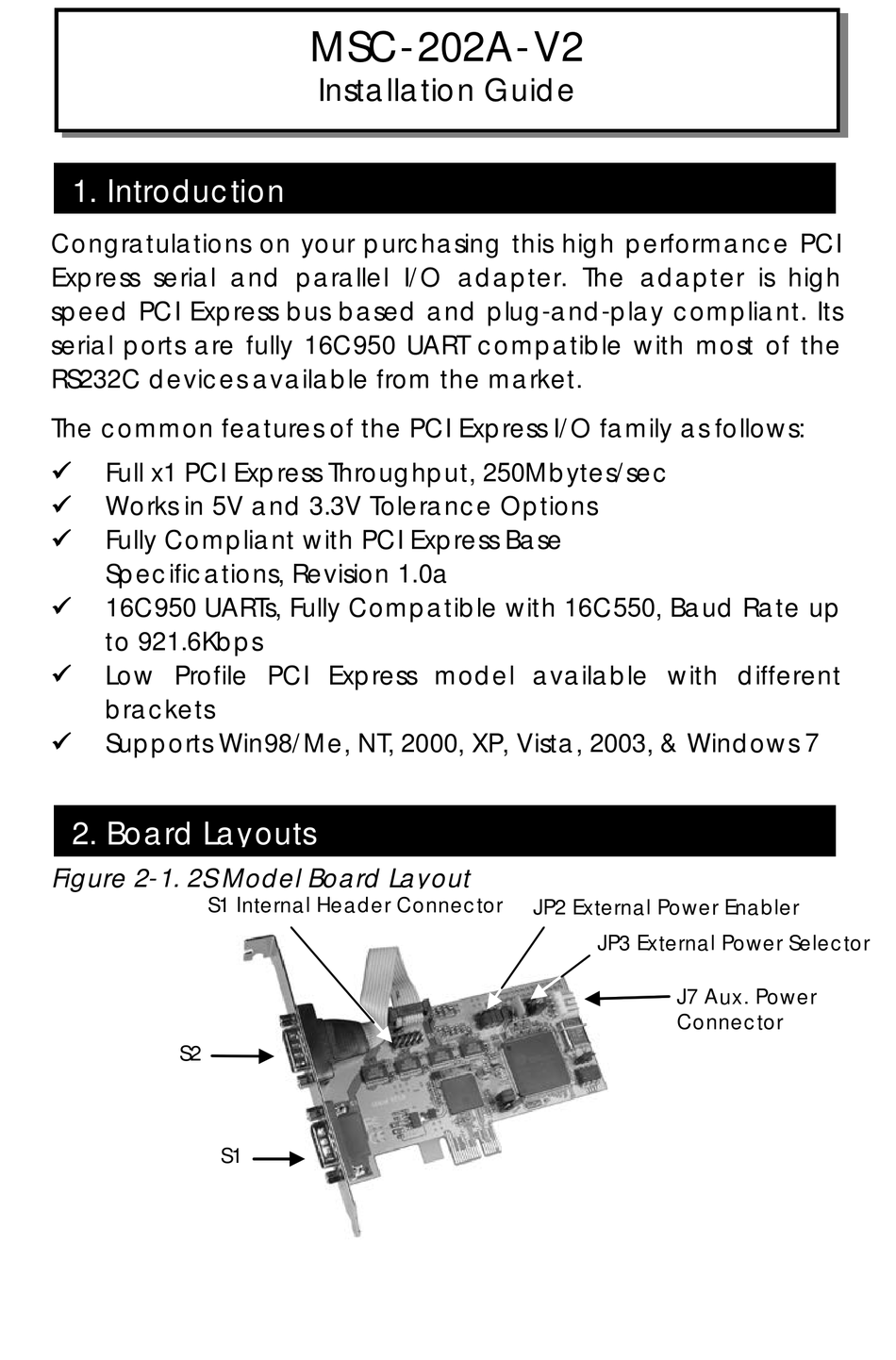

1. Introduction
Congratulations on your purchasing this high performance PCI
Express serial and parallel I/O adapter. The adapter is high
speed PCI Express bus based and plug-and-play compliant. Its
serial ports are fully 16C950 UART compatible with most of the
RS232C devices available from the market.
The common features of the PCI Express I/O family as follows:
Full x1 PCI Express Throughput, 250Mbytes/sec
Works in 5V and 3.3V Tolerance Options
Fully Compliant with PCI Express Base
Specifications, Revision 1.0a
16C950 UARTs, Fully Compatible with 16C550, Baud Rate up
to 921.6Kbps
Low Profile PCI Express model available with different
brackets
Supports Win98/Me, NT, 2000, XP, Vista, 2003, & Windows 7
2. Board Layouts

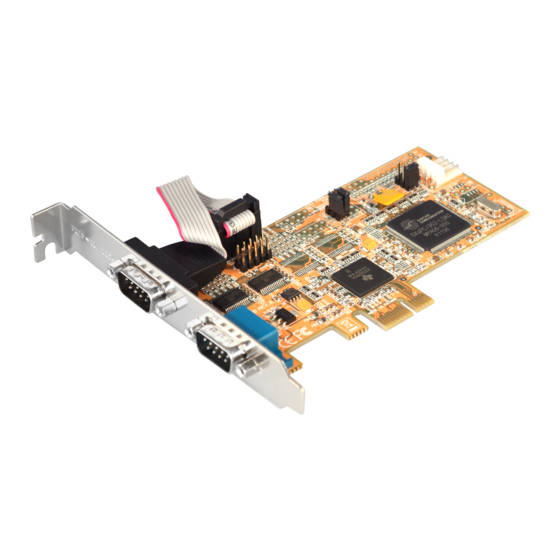

Figure 2-1. 2S Model Board Layout
S1 Internal Header Connector
S2
MSC-202A-V2
Installation Guide
S1
JP2 External Power Enabler
JP3 External Power Selector
J7 Aux. Power
Connector
Advertisement
Table of Contents
Related Manuals for ANTAIRA MSC-202A-V2
Summary of Contents for ANTAIRA MSC-202A-V2
-
Page 1: Installation Guide
MSC-202A-V2 Installation Guide 1. Introduction Congratulations on your purchasing this high performance PCI Express serial and parallel I/O adapter. The adapter is high speed PCI Express bus based and plug-and-play compliant. Its serial ports are fully 16C950 UART compatible with most of the RS232C devices available from the market. - Page 2 PCI Express Multi Serial I/O Adapter 3. Jumper Settings JP2- External Power Enabler: There are 4 jumpers that control the pin-9 signal of the 4 serial ports connectors (S1~S4) respectively. If the jumper(s) is at the “DIS” position (factory default), the pin-9 was connected with the RI signal as standard RS232 definition.
- Page 3 PCI Express Multi Serial I/O Adapter 5. Software Installation Note: PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it will cause problems because the INF files will be conflict in this case. Instead, please browse to the correct location (folder) manually to make sure the correct drivers are chosen and installed correctly.
- Page 4 PCI Express Multi Serial I/O Adapter Click〝 Next 〞to continue, and click〝 Finish 〞to complete the installation. To check the Installation, right click on 〝 My Computer 〞 and choose 〝 Manage 〞 . Choose 〝 Device Manager 〞 and double click 〝...
