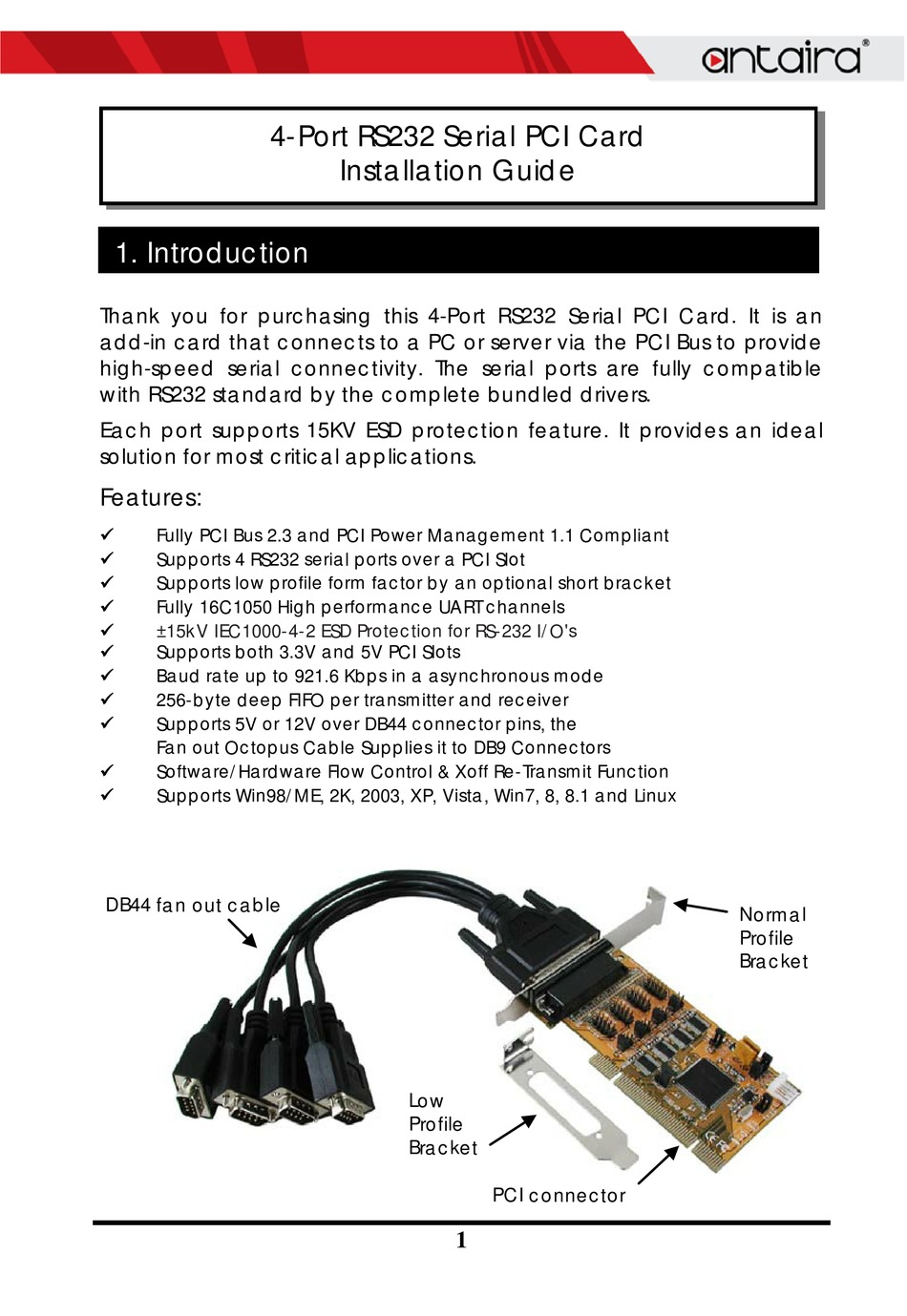

4-Port RS232 Serial PCI Card
1. Introduction
Thank you for purchasing this 4-Port RS232 Serial PCI Card. It is an
add-in card that connects to a PC or server via the PCI Bus to provide
high-speed serial connectivity. The serial ports are fully compatible
with RS232 standard by the complete bundled drivers.
Each port supports 15KV ESD protection feature. It provides an ideal
solution for most critical applications.
Features:
Fully PCI Bus 2.3 and PCI Power Management 1.1 Compliant
Supports 4 RS232 serial ports over a PCI Slot
Supports low profile form factor by an optional short bracket
Fully 16C1050 High performance UART channels
±15kV IEC1000-4-2 ESD Protection for RS-232 I/O's
Supports both 3.3V and 5V PCI Slots
Baud rate up to 921.6 Kbps in a asynchronous mode
256-byte deep FIFO per transmitter and receiver
Supports 5V or 12V over DB44 connector pins, the
Fan out Octopus Cable Supplies it to DB9 Connectors
Software/Hardware Flow Control & Xoff Re-Transmit Function
Supports Win98/ME, 2K, 2003, XP, Vista, Win7, 8, 8.1 and Linux
DB44 fan out cable
Installation Guide
Low
Profile
Bracket
PCI connector
1
Normal
Profile
Bracket
Advertisement
Table of Contents
Related Manuals for ANTAIRA RS232
Summary of Contents for ANTAIRA RS232
-
Page 1: Installation Guide
Installation Guide 1. Introduction Thank you for purchasing this 4-Port RS232 Serial PCI Card. It is an add-in card that connects to a PC or server via the PCI Bus to provide high-speed serial connectivity. The serial ports are fully compatible with RS232 standard by the complete bundled drivers. - Page 2 4-Port RS232 Serial PCI Card 2. Connector Layout J2: Aux. Power S1_PWR~S4_PWR: Pin 9 Connector Power Selector for JP2: Aux Power S1~S4 Source Selector JP3: PME Enable/Disable JP1: UART J3, J5, J4, J6: JP4: Factory use Power Internal Connectors only, should be...
- Page 3 4-Port RS232 Serial PCI Card DB9 male connector has an option to supply DC power to its Pin-9. Pin number 9 of the DB9 connector was defined for RS232 RI (Ring Indicator) signal. Since some applications do NOT use this signal, in this case, Pin-9 can be used to deliver DC power for the serial devices.
- Page 4 JP1 – UART Power: This jumper is used to select the power for the RS232 transceivers. The default setting is “+3.3V”. Due to some old RS232 devices need higher swing voltage level, in this case, please move the jumper to “+5V” instead.
- Page 5 4-Port RS232 Serial PCI Card 4. Software Installation Note: PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it will cause problems because the INF files will be conflict in this case. Instead, please browse to the correct location (folder) manually to make sure the correct drivers are chosen and installed correctly.
- Page 6 4-Port RS232 Serial PCI Card 5. Connector Pin Assignments The pin assignment of the 4 DB9 male connectors on the fan out cable as follows: DB9(Male) to DB9(Male) Wiring: DB9(PCI Card) DB9(Serial Device) 1 DCD 1 DCD 2 RXD 2 RXD...
- Page 7 4-Port RS232 Serial PCI Card 6. Specifications Type Specifications Connectors DB44 Female Cable DB44M-to-DB9MX4 Octopus type Bus Interface 32-bit PCI Number of Ports RS-232 Signals TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND Baud Rate 110 bps to 921.6Kbps Data Bits...
