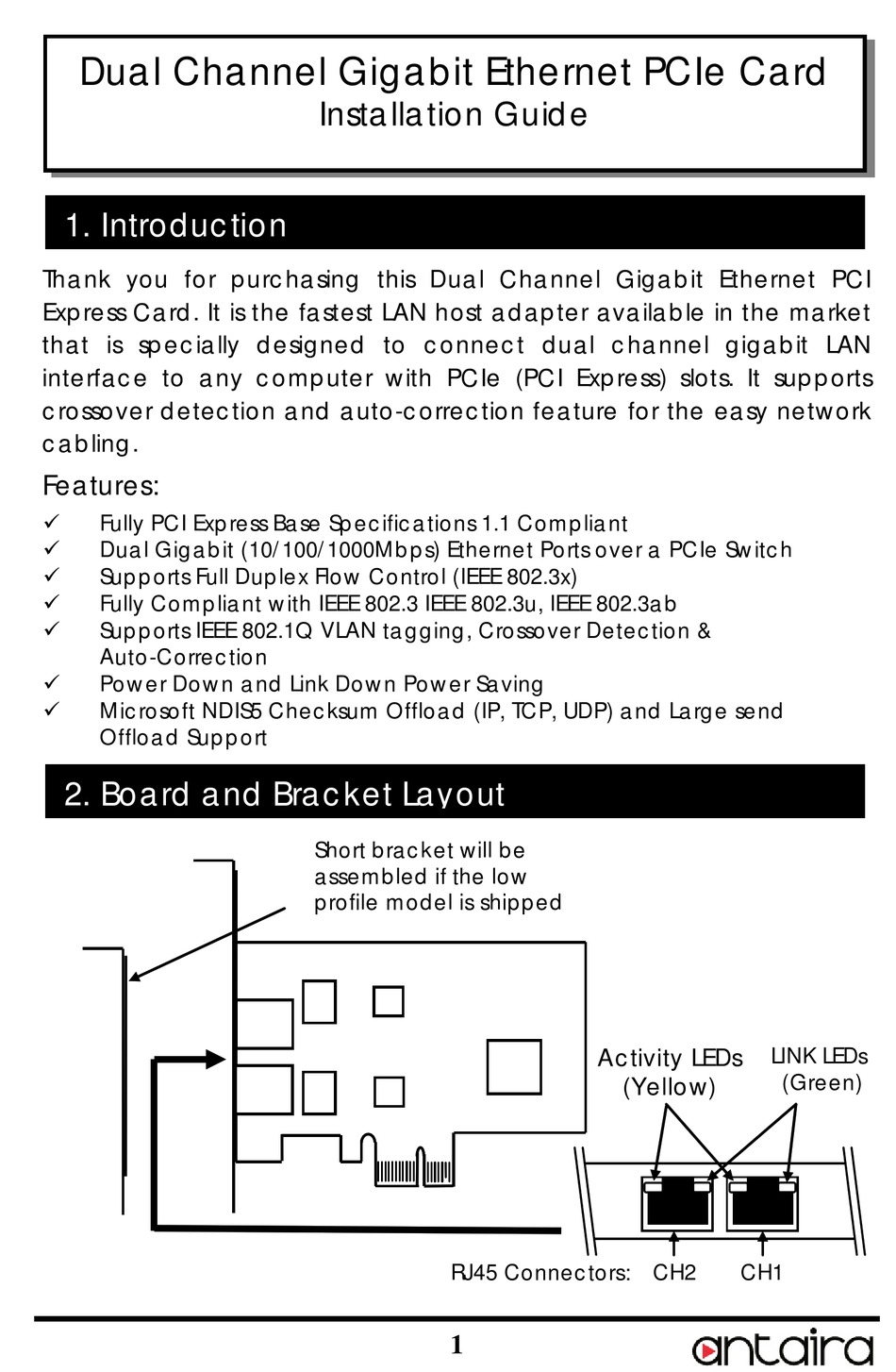

Dual Channel Gigabit Ethernet PCIe Card
1. Introduction
Thank you for purchasing this Dual Channel Gigabit Ethernet PCI
Express Card. It is the fastest LAN host adapter available in the market
that is specially designed to connect dual channel gigabit LAN
interface to any computer with PCIe (PCI Express) slots. It supports
crossover detection and auto-correction feature for the easy network
cabling.
Features:
Fully PCI Express Base Specifications 1.1 Compliant
Dual Gigabit (10/100/1000Mbps) Ethernet Ports over a PCIe Switch
Supports Full Duplex Flow Control (IEEE 802.3x)
Fully Compliant with IEEE 802.3 IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1Q VLAN tagging, Crossover Detection &
Auto-Correction
Power Down and Link Down Power Saving
Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send
Offload Support
2. Board and Bracket Layout
Installation Guide
Short bracket will be
assembled if the low
profile model is shipped
RJ45 Connectors: CH2
1
Activity LEDs
(Yellow)
CH1
LINK LEDs
(Green)
Advertisement
Table of Contents
Related Manuals for ANTAIRA Dual Channel Gigabit Ethernet PCIe Card
Summary of Contents for ANTAIRA Dual Channel Gigabit Ethernet PCIe Card
-
Page 1: Installation Guide
Dual Channel Gigabit Ethernet PCIe Card Installation Guide 1. Introduction Thank you for purchasing this Dual Channel Gigabit Ethernet PCI Express Card. It is the fastest LAN host adapter available in the market that is specially designed to connect dual channel gigabit LAN interface to any computer with PCIe (PCI Express) slots. - Page 2 Dual Channel Gigabit Ethernet PCIe Card 3. Installing the Gigabit Ethernet PCIe Card Due to the hot-plug feature of the PCI Express, the installation of the PCIe Dual Channel Gigabit Ethernet card is quite straightforward. Turn the system power OFF before installation! Use static electricity discharge precautions.
- Page 3 Dual Channel Gigabit Ethernet PCIe Card 4. Windows Vista Installation The Gigabit Ethernet drivers are shipped in the following folder of the driver CD. Setup.exe Please installer program LAN\Realtek\RTL8111B_8111C\Vista_Vista64 folder to install the Vista drivers automatically. Or please browse to this location when Windows ask you to specify the driver location.
- Page 4 Dual Channel Gigabit Ethernet PCIe Card 5. Windows 98SE, ME, 2000, XP and XP-64 Installation The Windows 98SE, ME, 2000, XP and XP-64bit drivers are in the following folder of the driver CD. Please run (double click) the setup program Setup.exe in the LAN\Realtek\RTL8111B_8111C\98SE_ME_2K_XP_XP64 folder to install the drivers automatically.
