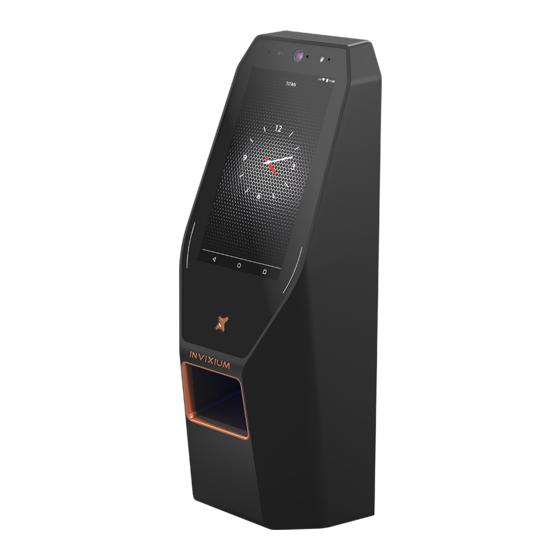

Invixium TITAN Quick Start Manual

TITAN
Invixium Customer Portal
Stay up to date with:
▪ Latest Updates
▪ Best Practices
▪ Datasheets
▪ Installation Guides
▪ Feature Description Documents
▪ Videos
▪ FAQs
▪ Tutorials
▪ And more...
Visit https://www.invixium.com/support/

In the Box

Metal Mounting
Plate

Getting Started

1 Remove the Mounting Plate, Wired Back Cover and
screws from the IXM INSTALL KIT.
2 Install the Mounting Plate at the desired location.
Invixium recommends 115 cms from the floor to the
bottom of the device.
3 Make the necessary connections to the Wired Back
Cover (refer to Get Wired
4 Unscrew and remove the Temporary Back Cover from
the IXM device and connect the Wired Back Cover
using the same screws.
5 Hang your IXM device on the Mounting Plate and
secure it on the bottom with the screw provided.

Get Wired Glossary

ACP Access Control Panel
COM Common
DAC Door Access Control
DSP Door Strike Power
EGND

Earth Ground

ETH Ethernet
GND Ground
NC Normally Closed
NO Normally Open
RLY Relay
RX Receiver
Get Wired Top Connector
Wire Color Wire
Green/Red
Orange/White
Green/Red
Purple/White
Green/Yellow
Black/Red
Blue/Red
Blue
Green/Red
Blue/Black
White/Red
Green/White
Grey
White/Black
Grey/Red
Get Wired Bottom Connector
Wire Color Wire
Purple
Orange/Yellow
Green/Red
Yellow/Green
Green/Red
Green/Orange
Brown
Black/Orange
Yellow
Yellow/Cyan
Black/Yellow
Cyan/Brown
White/Purple
Brown/Yellow
Purple/Yellow
Earth Ground
For protection against Electrostatic Discharge, Invixium recommends the use of
a ground connection between each IXM device to a high quality Earth Ground
available at the install site.
Connect to Earth Ground in the following way:
1 Connect the green and yellow earthing wire from the wired back cover
(top connector PIN 5) to the building earthing.
2 Connect the open end of earth ground wire provided in the Install Kit
Box to the building earthing as well.
3 Screw the lug end of the earth ground wire to the metal mounting plate.
Ensure all Earth Ground connections are made to each device prior to turning
on the power.

HDMI Output

TITAN's wired back cover is equipped with an HDMI Out Port that can be used for real time Video Surveillance for
standalone installations. When the HDMI out is connected to a monitor via an HDMI cable (sold separately), the
monitor screen will show the user the TITAN Field of View when in surveillance mode.
For security purposes, the HDMI cable can be connected to a monitor behind the door i.e. on the inside, to see
what is happening on the outside.
HDMI Out

Power, Ethernet and Wi-Fi

Ensure that a regulated, filtered and dedicated power source
provides a minimum of 3A @ 12 VDC per device, when using
an external power supply.
on all TITAN models.
When using PoE+, an IEEE 802.3at compliant Active Midspan
Injector is required (sold separately). Refer to table for Invixium
recommended PoE Injector specs. Full PoE deployments should
include a centralized PoE PSE.
For Ethernet communication, a specific range of allowable IP
addresses can be set for improved security.
For Wi-Fi communication on the TITAN, standard 802.11ac
protocol is supported. DHCP is enabled as a factory default.
WEP, WPA and WPA2 encryption options are available.
INVIXIUM recommends the use of battery back up or a UPS with built-in surge protection.
WARNING: Product Warranty is void if improper power (under or over) is supplied to the device.

RS-485 Configuration

For RS-485 networks, ensure that
devices. At a baud rate of 9600 bps, make certain that the maximum cable length is not longer than 1200 m
(4000 ft).
R = 120 ohms for Standard RS-485 Cabling
R = 100 ohms for CAT5/6 Cabling

Serial Communication and USB

For Serial Communication, IXM devices are also equipped with RS-232 and USB capabilities. Refer to
Wired Bottom Connector
The USB port can be used to connect a Flash Drive via Micro USB OTG cable and perform functions like
upgrading firmware, downloading transaction logs and configuration files.
The USB port can also be used to connect to a PC running IXM WEB via Micro USB cable.
Micro USB Cable
IXM INSTALL KIT
Dolphin Crimps
(qty 12)
Wired Back
Cover
Pages).
SGND Signal Ground
SPI Specific Purpose Input
SPO Specific Purpose Output
T Termination
TX Transmitter
USB Universal Serial Bus
VBUS USB Supply
VIN- Power Ground
VIN+ Power (12VDC)
WDATA Wiegand Data
WGND Wiegand Ground
Label
Pin(s)
RESERVED
RS232_RX
RESERVED
RS232_TX
EGND
SGND
RS485_T
RS485_D+
RESERVED
RS485_D-
RLY_NC
WDATA_IN0
RLY_COM
WDATA_IN1
RLY_NO
Label
Pin(s)
DAC_SUPPLY
SPO1
RESERVED
SPO2
RESERVED
SPO3
ACP_LED1
SPO_GND
ACP_LED2
SPI1
ACP_LED_GND
SPI2
DAC_IN1
SPI3
DAC_IN2
TITAN
HDMI Cable
(sold separately)
PoE+ connectivity is also available
IXM devices are wired in a daisy chain configuration, up to a maximum of 31
page for RS-232 connections.
Micro USB OTG Cable
(sold separately)
Metal Mounting
Plate Screw
(qty 2)
Micro USB Extension Cable
Hex Key
Wire Color
1 Green
2
Red
3 White
4
Black
5 Black/Green
6
Green/Red
7 Green/Red
8
RJ 45
9 Receptacle
10
11
12
13
14
15
Wire Color
1 1
Black/Cyan
Blue/White
2
3 3 Orange
4 Black/White
5 5
Green/Red
6
Green/Red
7 7 Green/Red
Red/White
8
Red/Grey
9 9
White/Black
10
11
White/Grey
12
Green/Black
13 Green/Grey
14 Black/Red
Black/Red
15
HDMI
connection
Monitor
INVIXIUM recommended PoE+ Injector Specs
Input Voltage
Input Current
Output Voltage
Output Current
Power
RS-485 to USB
Converter
INGUIDE
Quick Start Guide
Wall Mounting Screws
(qty 6)
Earth Ground Wire
Snubber Diode
Top Connector
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
Bottom Connector
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
Label
Wire
WDATA_OUT0
V_INPUT+
WDATA_OUT1
V_INPUT-
WGND
RESERVED
RESERVED
TCP/IP
Label
Wire
SPI_GND
DAC_IN3
DAC_OUT
DAC_IN_GND
RESERVED
RESERVED
RESERVED
USB0_VBUS
USB1_VBUS
USB0_D-
USB1_D-
USB0_D+
USB1_D+
USB0_GND
USB1_GND
Earthing Wire from
Wired Cover (PIN 5)
Monitor
100-240 VAC, 50-60 Hz
0.75 A
40-56 VDC
0.625 A
30 Watts
IXM WEB
Server
Top Connecter RS-485
SGND
RS-485+
RS-485-
Bottom USB Port
Pin(s)
16
17
18
19
20
21
22
23-30
Pin(s)
16 1
17
18 3
19
20 5
21
22 7
23
24 9
25
26
27
28
29
30
Earth Ground
Wire Lug
Building Earthing
(6)
(8)
(10)
Get
