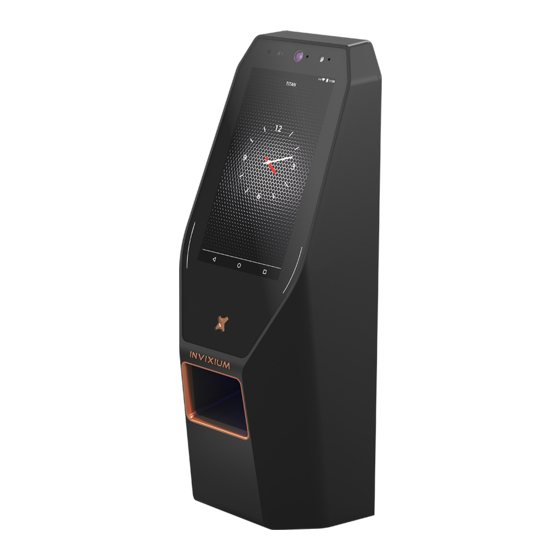

Invixium TITAN Quick Start Manual
  1. Manuals
  2. Brands
  3. Invixium Manuals
  4. Touch terminals
  5. TITAN
  6. Quick start manual

Invixium TITAN Quick Start Manual

Enhancement kit
Hide thumbs Also See for TITAN:

Advertisement

Table of Contents

INGUIDE
Quick Start Guide
TITAN Enhancement Kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Invixium TITAN

Summary of Contents for Invixium TITAN

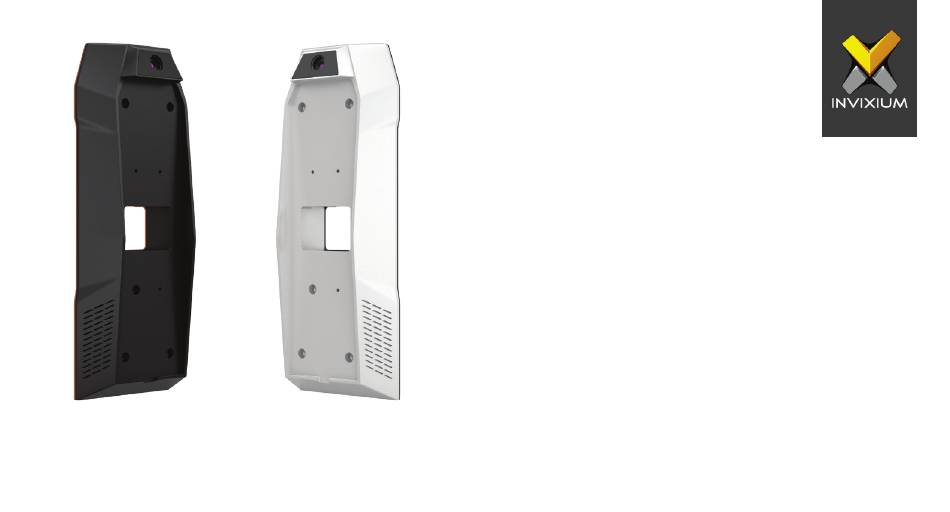

  • Page 1 INGUIDE Quick Start Guide TITAN Enhancement Kit...
  • Page 2 Invixium Customer Portal Stay up to date with: ▪ Latest Updates ▪ Best Practices ▪ Datasheets ▪ Installation Guides ▪ Feature Description Documents ▪ Videos ▪ FAQs ▪ Tutorials ▪ And more... Visit https://www.invixium.com/support/...
  • Page 3 In the Box Dry Wall Anchors 4 PIN Female Terminal Plug Wall Mounting Screws (Qty 5) (Qty 1) (Qty 5) Pan Head Machine Screws Enhancement Kit AWG 24 Crimp (Qty 3) (Qty 1) (Qty 4)

  • Page 4: Getting Started

    For existing installations first power off the device, disconnect the wiring connections, remove the device and the mounting plate from the wall. Metal Plate Mark the mounting holes using the TITAN mounting plate. Drill the holes Mounting Holes and install the dry wall anchors.
  • Page 5 Getting Started Connect the USB wires on the TITAN back cover to the 4 PIN Female Terminal Plug provided with the E-kit. (Refer Get Wired Pages). Reconnect all wiring connections that were removed in step 1 and connect the female terminal plug to the male terminal of the E-kit.
  • Page 6 Get Wired The Enhancement Kit works in conjunction with the TITAN and thus needs to be connected to a TITAN device for power and processing. Label Wire Color Wire Pin(s) A 4 PIN female terminal plug is provided with every...

  • Page 7: Wiring Connections

    Wiring Connections USB0 Wires The USB Wires are located on the Bottom Connector of the TITAN Wired Back Cover. Use either Wires from PIN 23, 25, 27 and 29 (USB0 wires) or from PIN 24, 26, 28 and 30 (USB 1 wires) to connect to the 4 PIN female TITAN Back Cover terminal plug.

  • Page 8: Software Installation

    When installation is complete, click Exit. The IXM WEB icon will now be on your desktop. Use the IXM WEB icon to run IXM WEB in your default web browser. Contact support@invixium.com in case of any issues.

  • Page 9: Best Practices

    Best Practices For best performance, the TITAN and enhancement kit need to be installed at the recommended height and location. The ideal location when using the E-kit with the TITAN is where the ambient temperature is between 20 and 27 degrees Celsius (68 and 80 degrees Fahrenheit).
  • Page 10 This is a Quick Start Guide. For a detailed guide please refer the Invixium Installation Guide. For technical or customer support issues, please contact your Local Authorized Reseller first. Visit the Customer Portal for more Invixium resources at www.invixium.com/support Enjoy the Experience. Some features may vary based on device models.
