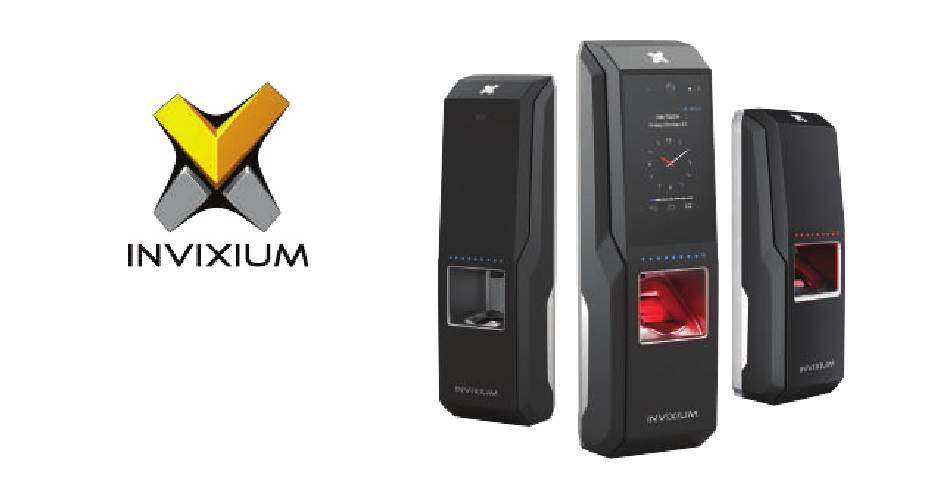

- Page 1 INGUIDE Quick Start Guide...
- Page 2 In the Box IXM INSTALL KIT Wall Mounting Screws (qty 4) Snubber Diode Wired Back Cover Dolphin Crimps (qty 12) Metal Mounting Plate Screw (qty 1) Micro USB Extension Cable (4 ft/1.2m) USB Cover Screw Gangue Box (qty 1) Mounting Screws Ferrite Core Hex Key (qty 2)
-
Page 3: Getting Started
Remove the Mounting Plate, Wired Back Cover and Screws from the IXM INSTALL KIT. Install the Mounting Plate at the desired location (INVIXIUM recommends 135-140 cm from the floor to the top of the device). Make the necessary connections to the Wired... - Page 4 Get Wired Glossary Top Connector 7 9 11 13 15 17 19 Access Control Panel Relay Receiver Common SGND Signal Ground Door Access Control Door Strike Power Specific Purpose Input EGND Earth Ground Specific Purpose Output 8 10 12 14 16 18 20 Bottom Connector Ground Transmitter...
- Page 5 Get Wired Top Connector Label Wire Color Wire Pin(s) Wire Color Wire Label Pin(s) RLY_NC White/Red Orange/Yellow SPO_1 RLY_COM Grey Yellow/Green SPO_2 RLY_NO Grey/Red Green/Orange SPO_3 ACP_LED1 SPO_GND Brown Black/Orange ACP_LED2 Yellow Yellow/Cyan SPI_1 ACP_LED_GND Black/Yellow Cyan/Brown SPI_2 DAC_IN1 White/Purple Brown/Yellow SPI_3 DAC_IN2...
- Page 6 Get Wired Bottom Connector Wire Pin(s) Wire Pin(s) Wire Color Label Wire Color Label RS232_RX VIN+ Orange/White VIN- RS232_TX Black Purple/White EGND SGND Green/Yellow Black/Red TCP/IP 9,11,13, RS485+ (B) RJ45 Blue Receptacle 15,17,19 Blue/Black RS485- (A) Green/White WDATA_IN0 White/Black WDATA_IN1 Green WDATA_OUT0 White...
-
Page 7: Earth Ground
Earth Ground For protection against Electrostatic Discharge, Invixium recommends the use of a ground connection between each IXM device to a high quality Earth Ground available at the install site. Connect to Earth Ground in one of two ways: EGND wire (Green/Yellow) from the Wired Back Plate Loose Earth Ground wire direct to the mounting plate using one of the wall mounting screws (as shown). - Page 8 PoE+ connectivity is available on all SENSE 2 and TOUCH 2 models. INVIXIUM recommends the use of battery back up or a UPS with built-in surge protection. WARNING: Product Warranty is void if improper power (under or over) is supplied to the device.
-
Page 9: Ethernet And Wi-Fi
IXM WEB ENTERPRISE Ethernet and Wi-Fi Router connected For Ethernet communication, a specific range to LAN/WAN of allowable IP addresses can be set for improved security. For Wi-Fi communication on the TOUCH (select models), 802.11 b/g/n protocols are supported. DHCP is enabled as a factory default. - Page 10 RS-485 Configuration For RS-485 networks, ensure that devices are wired in a daisy chain configuration, up to a maximum of 31 devices. At a baud rate of 9600 bps, make certain that the maximum cable length is not longer than 1200 m (4000 ft). IXM WEB ENTERPRISE RS-485 to USB...
- Page 11 Serial Communication and USB For Serial Communication, IXM devices are equipped with RS-232 and USB capabilities. Refer to Get Wired Bottom Connector page for RS-232 connections. The USB port can be used to connect a Flash Drive via Micro USB OTG cable and perform functions like upgrading firmware, downloading transaction logs and configuration files.
- Page 12 Wiegand 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 Standard 26-Bit Wiegand Format IXM devices have the option to use the Facility Code (8 Bits) ID (16 Bits)
- Page 13 ACP Connections TOUCH 2 ACP_LED1 ACP_LED2 ACP_LED_GND WDATA_OUT0 Top Connector LED WDATA_OUT1 ACP_LED1 ACP_LED2 WGND ACP_LED_GND (11) Bottom Connector Wiegand WDATA_OUT0 (16) ACP_LED signals can be used if available on the Access Control Panel. IXM devices support up WDATA_OUT1 (18) to 2 wires + GND for LED status.
- Page 14 DAC Connections (Electric Door Strike) MYCRO RLY_NO Electric Snubber Diode RLY_COM Door Strike Door Strike Power Supply DAC_IN1 Door DAC_OUT Contact Top Connector DAC_OUT RLY_COM Request DAC_IN2 RLY_NO to exit DAC_IN1 (13) DAC_IN2 (15) Max Relay rating = 1A @ 24VDC DAC_OUT (18) NOTE: A separate power supply is required for the door strike...
- Page 15 DAC Connections (Magnetic Lock) MYCRO RLY_NC Magnetic Snubber Diode RLY_COM Door Lock Door Strike Power Supply DAC_IN1 Door DAC_OUT Contact DAC_OUT Top Connector Request RLY_NC DAC_IN2 to exit RLY_COM DAC_IN1 (13) Max Relay rating = 1A @ 24VDC DAC_IN2 (15) DAC_OUT (18) NOTE: A separate power supply is required for the door strike...
- Page 16 DAC Connections (Device Powers Door Strike) TOUCH 2 RLY_NO Electric Snubber Diode RLY_COM Door Strike Note: For a magnetic lock, please DAC_GND use RLY_NC wire as shown on the previous page. DAC_DSP DAC_IN1 Door Contact DAC_OUT DAC Connections RLY_COM DAC_OUT RLY_NO Request DAC_IN2...
- Page 17 Enrollment Best Practices Incorrect Correct Pressure Too Low Too High Good Position Rotation Condition Preferred Fingers Good...
- Page 18 INGUIDE This is a Quick Start Guide. For a detailed guide please refer the Invixium Installation Guide. Visit the Customer Portal for more Invixium resources at www.support.invixium.com. Contact Invixium Support at support@invixium.com. For technical or customer support issues, please contact your Local Authorized Reseller first.
