Features
•
cULus Listed for areas of coverage up to 256 square feet
•
Fast response 212°F (100°C) fusible link operating element
Product Description

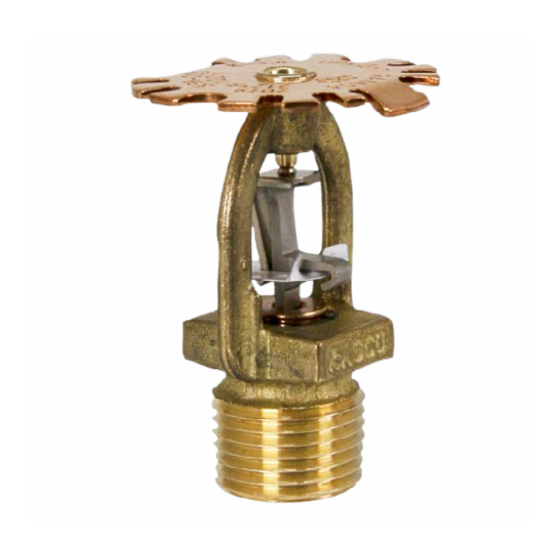

The Reliable Model KFR-CCS Combustible Concealed
Space Sprinkler is an upright, special sprinkler designed to
provide protection of specific light hazard combustible and
noncombustible concealed spaces requiring sprinkler protection.
The Model KFR-CCS Sprinkler utilizes a fast response solder-
link fusible element that has demonstrated response times in
laboratory tests which are five to ten times faster than standard
response sprinklers. This feature enables the sprinkler to apply
water to a fire much faster than standard response sprinklers of
the same temperature rating.
Application
The Model KFR-CCS sprinkler is specifically listed for the
protection of horizontal combustible concealed spaces up to 36"
deep as described in NFPA 13 and as detailed in this bulletin.
In addition, the Model KFR-CCS sprinkler is specifically listed for
the protection of horizontal combustible concealed spaces with
wood truss and bar joist construction up to and including 60"
(900 mm) deep.
Installation
Model KFR-CCS Sprinklers are to be installed in the upright
position with their frames arms parallel to the pipe. When
installing the Model KFR-CCS sprinkler use only the Reliable
Model W2 installation wrench. Usage of any other type of
installation wrench may damage the sprinkler and will void
the manufacturer's warranty. Damaged sprinklers must be
immediately replaced. A leak tight ½" NPT (R1/2) sprinkler joint
can be obtained with an installation torque of approximately 8 -18
ft-lbs (10.8 – 24.4 N.m) after application of an appropriate thread
sealant. Do not tighten sprinklers over these recommended limits.
Doing so may cause leakage and/or premature operation.

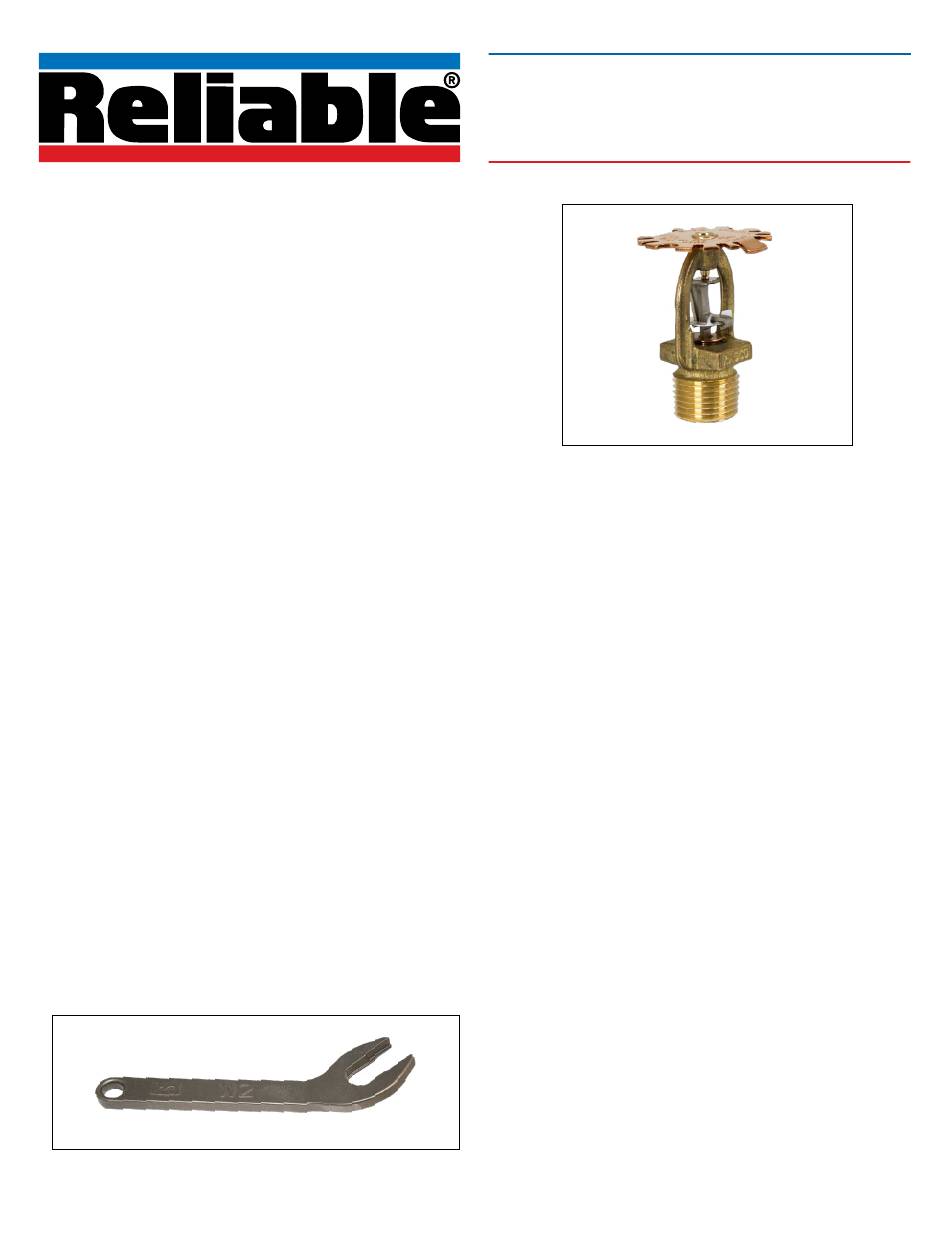

Model W2 Wrench
Combustible Concealed Space Sprinkler
Maintenance
Reliable Model KFR-CCS series sprinklers should be inspected
and the sprinkler system maintained in accordance with NFPA
25, as well as the requirements of any Authorities Having
Jurisdiction. Prior to installation, sprinklers should remain in the
original cartons and packaging until used. This will minimize the
potential for damage to sprinklers that could cause improper
operation or non-operation.
Do not clean sprinklers with soap and water, ammonia liquid or
any other cleaning fluids. Remove dust by gentle vacuuming
without touching the sprinkler.
Replace any sprinkler which has been painted (other than factory
applied). A stock of spare sprinklers should be maintained to
allow quick replacement of damaged or operated sprinklers.
Failure to properly maintain sprinklers may result in inadvertent
operation or non-operation during a fire event.
Guarantee
For Reliable Automatic Sprinkler Co., Inc. guarantee, terms, and
conditions, visit www.reliablesprinkler.com.
Ordering Information
Specify: Model KFR-CCS Sprinkler
W2 Wrench
www.reliablesprinkler.com
Bulletin 044 December 2022
Model KFR-CCS
K-factor 5.6 (80); SIN RA4454
cULus Listed
Advertisement
Related Manuals for Reliable KFR-CCS
Summary of Contents for Reliable KFR-CCS
- Page 1 In addition, the Model KFR-CCS sprinkler is specifically listed for the protection of horizontal combustible concealed spaces with Do not clean sprinklers with soap and water, ammonia liquid or wood truss and bar joist construction up to and including 60”...
- Page 2 4-1/2 in. (114 mm) lateral distance from the edge of the member to the centerline of the sprinkler (required by the specific application listing) is maintained. Where the Model KFR-CCS sprinkler is spaced over 225 ft (20.9 m ), apply the obstruction rules found in NFPA 13 for extended coverage sprinklers, except as noted in #2 above.
- Page 3 A minimum lateral distance of 18 in. (460 mm) must be maintained between the CPVC pipe and heat pumps, fan motors, and heat lamps. CPVC piping can be used to supply the Model KFR-CCS Sprinklers as well as sprinklers installed below the ceiling. Draft Curtain Requirements Where provided or required, draft curtains shall be at least 1/3 the depth of the concealed space or 8 in.
- Page 4 Unobstructed Wood Truss or Bar Joist, CPVC Pipe Figure 2 Draft Curtains: Optional 4-1/2 in. (114 mm) MINIMUM FROM TOP CHORD DEPTH 4 in. CENTERLINE OF SPRINKLER TO (100 mm) OR LESS FACE OF TOP CHORD OF WOOD UPPER TRUSS OR BAR JOIST DECK 6 in.
- Page 5 Unobstructed Wood Truss or Bar Joist, Steel Pipe Figure 3 Draft Curtains: Optional 4-1/2 in. (114 mm) MINIMUM FROM TOP CHORD DEPTH 4 in. CENTERLINE OF SPRINKLER TO (100 mm) OR LESS FACE OF TOP CHORD OF WOOD UPPER TRUSS OR BAR JOIST DECK LOCATION OF STEEL PIPE IN CONCEALED SPACE IS...
- Page 6 Obstructed Wood Truss or Bar Joist, Steel Pipe Figure 4 Draft Curtain and Blocking: Required at 1000 Ft (93 m 4-1/2 in. (114 mm) MINIMUM FROM FULL DEPTH BLOCKING OF SAME MATERIAL AS JOIST CENTERLINE OF SPRINKLER TO (OR OTHER NONCOMBUSTIBLE MATERIAL). FACE OF WOOD TRUSS OR UPPER MAXIMUM 32 ft (9.75 m) BETWEEN ROWS OF BLOCKING.
- Page 7 Solid Wood or Composite Wood Joist Filled with Non-Combustible Insulation, CPVC Pipe Figure 5 Draft Curtains: Required at 1000 Ft (93 m NONCOMBUSTIBLE INSULATION, SECURED ABOVE SPRINKLERS WITH WIRE NETTING OR EQUIVALENT UPPER DECK MAXIMUM SEE NOTE 2 6 in. [150 mm] SEE NOTE 1 NOTE 3 OBSTRUCTION...
- Page 8 Solid Wood Joist (Non-Filled), Steel Pipe Figure 6 Draft Curtain and Blocking: Required at 1000 Ft (93 m FULL DEPTH BLOCKING OF SAME MATERIAL AS JOIST 12 in. (300 mm) (OR NONCOMBUSTIBLE MATERIAL). MAXIMUM 32 ft (9.75 m) MAX JOIST BETWEEN ROWS OF BLOCKING.
- Page 9 Solid Wood or Composite Wood Joist (Filled), Steel Pipe Figure 7 Draft Curtain and Blocking: Not Required NONCOMBUSTIBLE INSULATION, SECURED ABOVE UPPER SPRINKLERS WITH WIRE NETTING OR EQUIVALENT DECK SEE NOTE 2 LOCATION OF STEEL PIPE IN CONCEALED SPACE IS NOT SEE NOTE 1 RESTRICTED AND 1A...
