Makita HR3851 Parts Breakdown
Makita hr3851 rotary hammer: specifications
Hide thumbs
Also See for HR3851:
- Instruction manual (21 pages) ,
- Instruction manual (29 pages) ,
- Instruction manual (16 pages)
Related Manuals for Makita HR3851
Summary of Contents for Makita HR3851

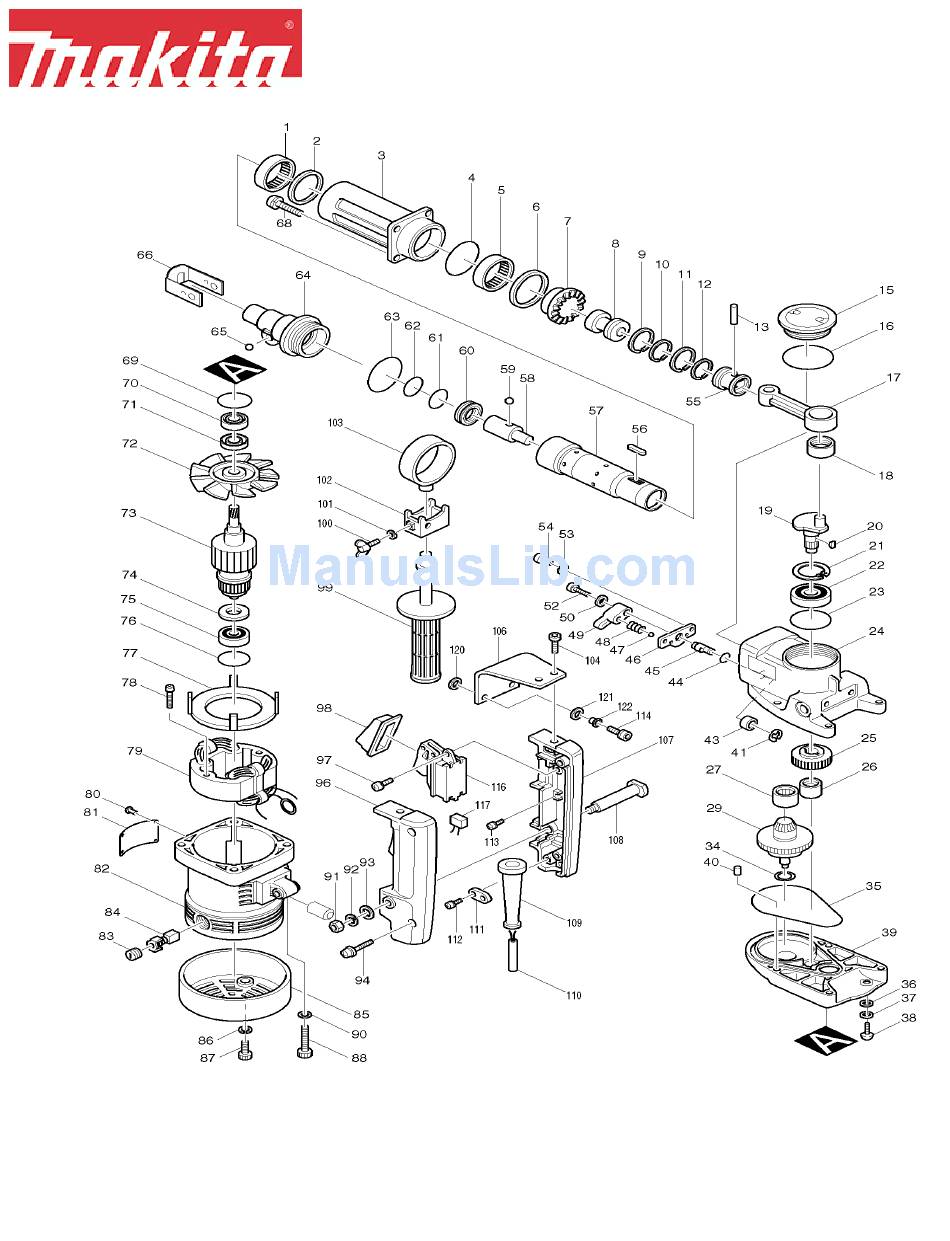

- Page 1 Parts Breakdown HR3851 Page 1 of 4 2/8/2008...
- Page 2 BARREL, HR3851 4 213655-4 O RING 56, HR3851 5 212551-3 N.BEARING 4516,HR3851 6 253832-6 F. WASHER 45, HR3851 7 221347-1 SPIRAL B. GEAR 36, HR3851 8 321369-2 STRIKER, HR3851 8 321369-2 STRIKER, HR3851 9 412038-7 PISTON RING 34, HR3851 10 412041-8...
- Page 3 RUBBER RING, HR3851 121 262052-1 RUBBER RING 9, HR3851 122 257636-8 SLEEVE 6, HR3851 123 819063-3 MAKITA LABEL, 6992DWDE 400 182741-1 STEEL TOOL CASE, HR3851, T1 400 150589-9 PLASTIC TOOL CASE,HR3851,HR5000 401 321248-4 DEPTH GAUGE, HR3851 Page 3 of 4 HR3851 2/8/2008...
- Page 4 Parts Breakdown 403 783202-090A 900 231375-8 COMP. SPRING 15, HR3851 901 265321-9 HEX BOLT M8X12, HM0810B-T2 904 421596-2 CAP, HM0810B 905 810148-8 905 810162-4 CAUTION LABEL, HR3851 Page 4 of 4 HR3851 2/8/2008...
