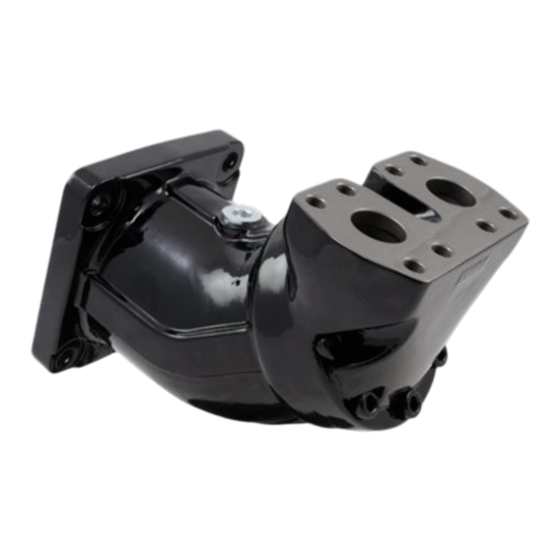

- Page 1 MSG30-5520-M1/UK Service/ Spare Parts Manual Visit our homepage for additional support Series F12-152, parker.com/pmde -162, -182 Effective: February, 2022 Supersedes: May 01, 2021...
-
Page 2: Table Of Contents
1 kg 2.2046 lb 0.22481 lbf 1 bar 14.504 psi 0.21997 UK gallon 0.26417 US gallon 1 cm 0.061024 in3 3.2808 feet 1 mm 0.03937 in 9/5 °C + 32 = °F Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... -
Page 3: General Information
1. End cap 2. Valve plate 3. Cylinder barrel 4. Piston with piston ring 5. Syncronisation Timing gear 6. Tapered roller bearing 7. Bearing housing 8. Shaft seal 9. Output/input shaft Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... -
Page 4: Specifications
NOTE: The temperature should be me- For further information we refer to: asured at the utilized drain port. Catalogue MSG30-8249/UK Continuous operation may require case flushing in order to meet the viscosity and temperature limitations. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... -
Page 5: Disassembling
2. Fasten screw and washer to secure that the cylinder barrel (item 411) stays in correct position. There is a thread in the barrel sup- port, item 430 (see page 18). Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... - Page 6 (item 231) and the O-ring (item 225). mandrel 4. Use a mandrel and tap the shaft seal (item 233) out with a hammer. Make sure the O-ring (item 225) is removed (see picture 3 above). Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 7 6. Remove screw and washer. Disassemble the cylinder barrel (item 410), pistons (item 440) and barrel support (item 430). See page 18 for item 440 and 430. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 8 7. Disassemble the retaining ring (item 478) and the spacer washer (item 476). press tool 8. Place the bearing package on a tube and disassemble the bearings by pressing on the shaft end. tube Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
-
Page 9: Assembling
11. Place the spacer ring (item 464) and the tappered roller bearing (item 470) on the shaft. Press down the tappered roller bearing with a sleeve until correct preload is achieved. The rolling torque should be 11±1Nm Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... - Page 10 430), pistons (item 440) and cylinder barrel (item 410). Make sure the timing is correct (see picture 13). Fasten screw and washer to secure that the cylinder barrel stays in correct position. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 11 15. Carefully place the bearing hou- sing (item 210) on the bearing package. Note! This operation goes much smoother if the bearing housing is heated up to approxmetly 60°C. bearing package Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 12 17. Assemble the shaft seal (item 233) and O-ring (item 225). Note! Apply a thin layer of grease on the inner and outher diameter of the shaft seal before assembly. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 13 Add the flange plate to the fixture with bolts, washers and nuts. Turn the bolts alternately until the bearing housing (item 210) stops against the retaining ring (item 237), see picture 17. washer Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 14 20. Make sure the timing is correct. If the timing is wrong, release the screw slightly and set the timing to correct position again. screw washer 21. Remove screw and washer. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 15 Assemble the end cap with O-ring on the motor. Fit the bolts (item 491) and torque them to 180 ± 10 Nm. 23. Once again, make sure the timing is correct. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 16 24. Assemble hexagon plug (item 250) according to customers specification. Use a plier and turn the shaft at least one revolution and make sure it turns without problems. Also make sure that there is back-lash. Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
-
Page 17: Test Procedure
Normal (gpm, US) (l/min) (gpm, US) (l/min) (gpm, US) (l/min) (gpm, US) (l/min) F12-152 0.99 F12-152 0.99 F12-162 0.43 1.08 F12-162 0.43 1.08 F12-182 0.47 1.19 F12-182 0.47 1.19 Parker Hannifin Pump & Motor Division Europe Parker Hannifin Trollhättan, Sweden Pump and Motor Division Trollhättan, Sweden... -
Page 18: Splitview
MSG30-5520-M1/UK Service/Spare Parts Manual Splitview F12-152, -162, -182 Series F12 Service Manual MSG30-5520-M1/UK Series F12 Splitview F12-152, -162, -182 Splitview F12-152, -162, -182 Parker Hannifin Parker Hannifin Pump and Motor Division Pump & Motor Division Europe Trollhättan, Sweden Trollhättan, Sweden... -
Page 19: Parts Specification
Hex Socket Plug Assy Shaft Cylinder Barrel Assy Barrel Support Piston Assy Ring Gear Tap Roller Bearing Spacer Ring Tap Roller Bearing Spacer Washer Retaining Ring SGA70 Hex S Screw M14*40 Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... -
Page 20: Spare Parts
F12-182 Motor type S 3724010 Other kit on request Item 110 Type F 1 1/2” Vertical 3784018 Type D 1 1/4” Horizontal 3783958 Type K 1 1/4” Rear 3720302 Type M 1/1/4” Side 3720303 Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden... -
Page 21: Tools
Series F12 MSG30-5520-M1/UK Series F12 Tools Tools M6 x 80 Part No: 3720774 M16 x 35 M16 x 65 5/8-18 UNF 2" 5/8-11 UNC 2" Valid for shaft Valid for shaft Valid for shaft Valid for shaft Type G Type H Type T Type S Type K Type Z Type F Type N Type M Type P Type D Parker Hannifin Parker Hannifin Pump and Motor Division Trollhättan, Sweden Pump & Motor Division Europe Trollhättan, Sweden... - Page 22 MSG30-5520-M1/UK Service/Spare Parts Manual Notes Series F12 Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 23 MSG30-5520-M1/UK Service/Spare Parts Manual Notes Series F12 Parker Hannifin Pump & Motor Division Europe Trollhättan, Sweden...
- Page 24 The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalogue and in any other materials provided from Parker or its subsidiaries or authorized distributors.
