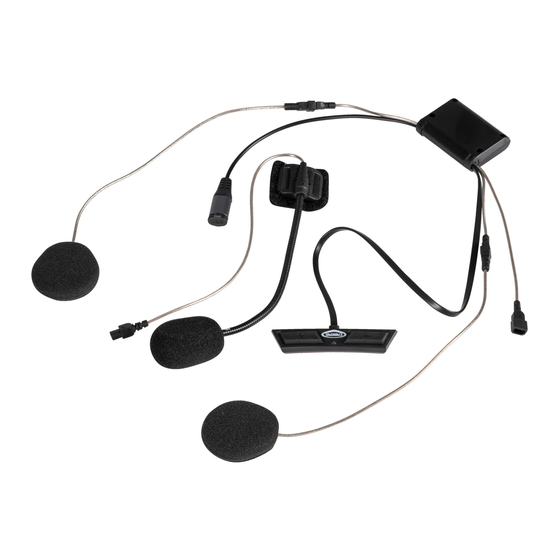

Caberg PRO SPEAK EVO Assembly
Hide thumbs
Also See for PRO SPEAK EVO:
- Instructions manual (49 pages) ,
- Assembly (3 pages) ,
- Assembly (3 pages)
Advertisement
Quick Links
ASSEMBL Y

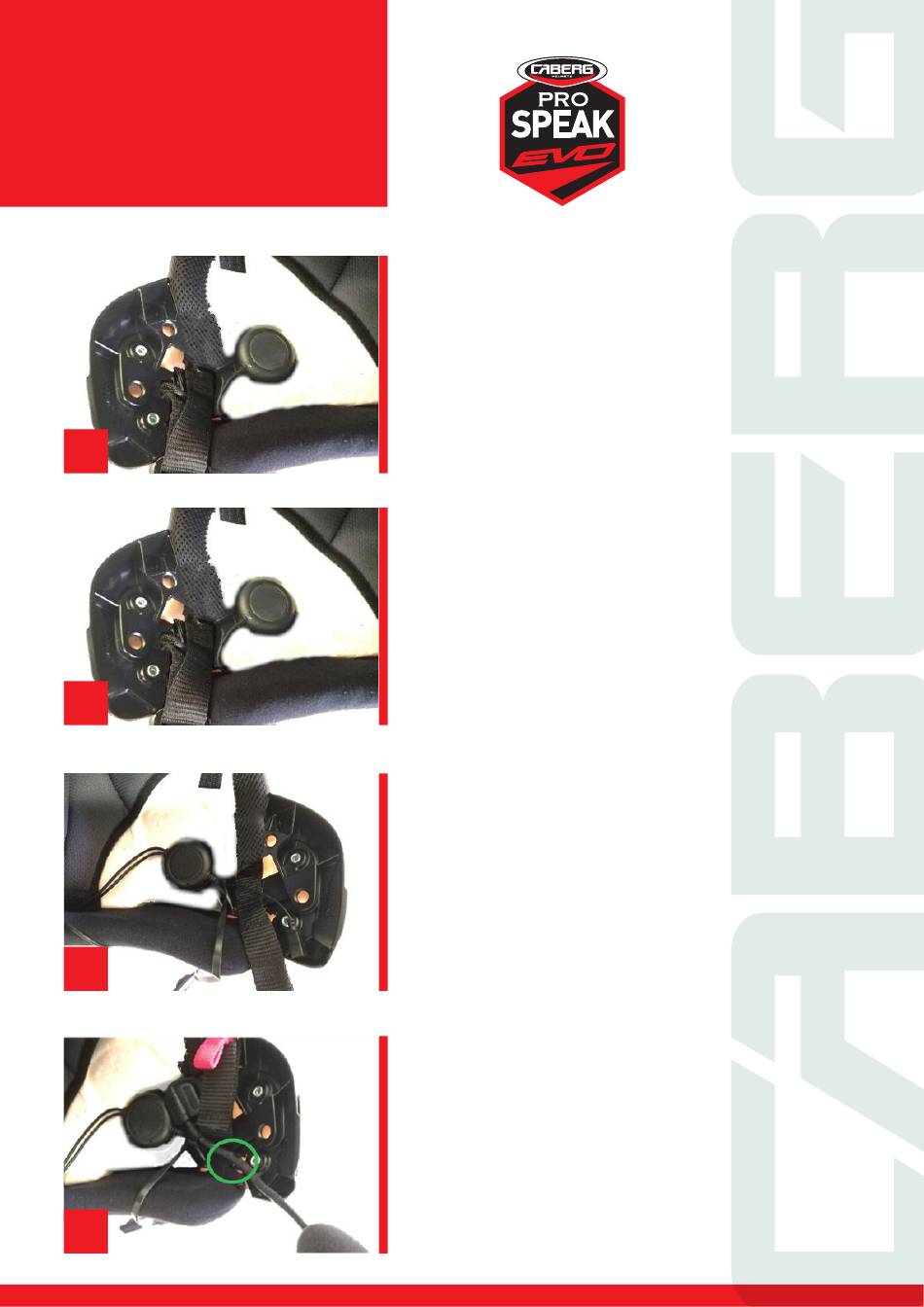

1.
2.
3.
4.
Remove the cheekpads as indicated in the
communicator's instruction manual.
Place the right speaker (R) in its seat
after applying the adhesive round shaped
Velcro included in the package.
Repeat the operations performed for the
right (R) speaker for positioning the left
(L).
Position the microphone by passing the
boom under the chinstrap that will be
housed in its seat.
Advertisement
Related Manuals for Caberg PRO SPEAK EVO
Summary of Contents for Caberg PRO SPEAK EVO
- Page 1 ASSEMBL Y Remove the cheekpads as indicated in the communicator’s instruction manual. Place the right speaker (R) in its seat after applying the adhesive round shaped Velcro included in the package. Repeat the operations performed for the right (R) speaker for positioning the left (L).
- Page 2 ASSEMBL Y Adjust the microphone’s position by deforming its boom. WARNING check that the triangle on the microphone is facing th mouth. Remove the inner liner. Place the cables in the gap between the inner and outer shell. Place the BT controller in the designated slot on the back of the inner shell.
- Page 3 ASSEMBL Y Pass the flat cable of the remote control between the neckroll’s pp plate and the shell. The remote control must remain accessible outside the helmet. Fit the keypad on the left side (helmet on), approximately 15 mm from the lower edge of the shell using the provided adhesive.
