Eaton IZM32 Instruction Manual page 35

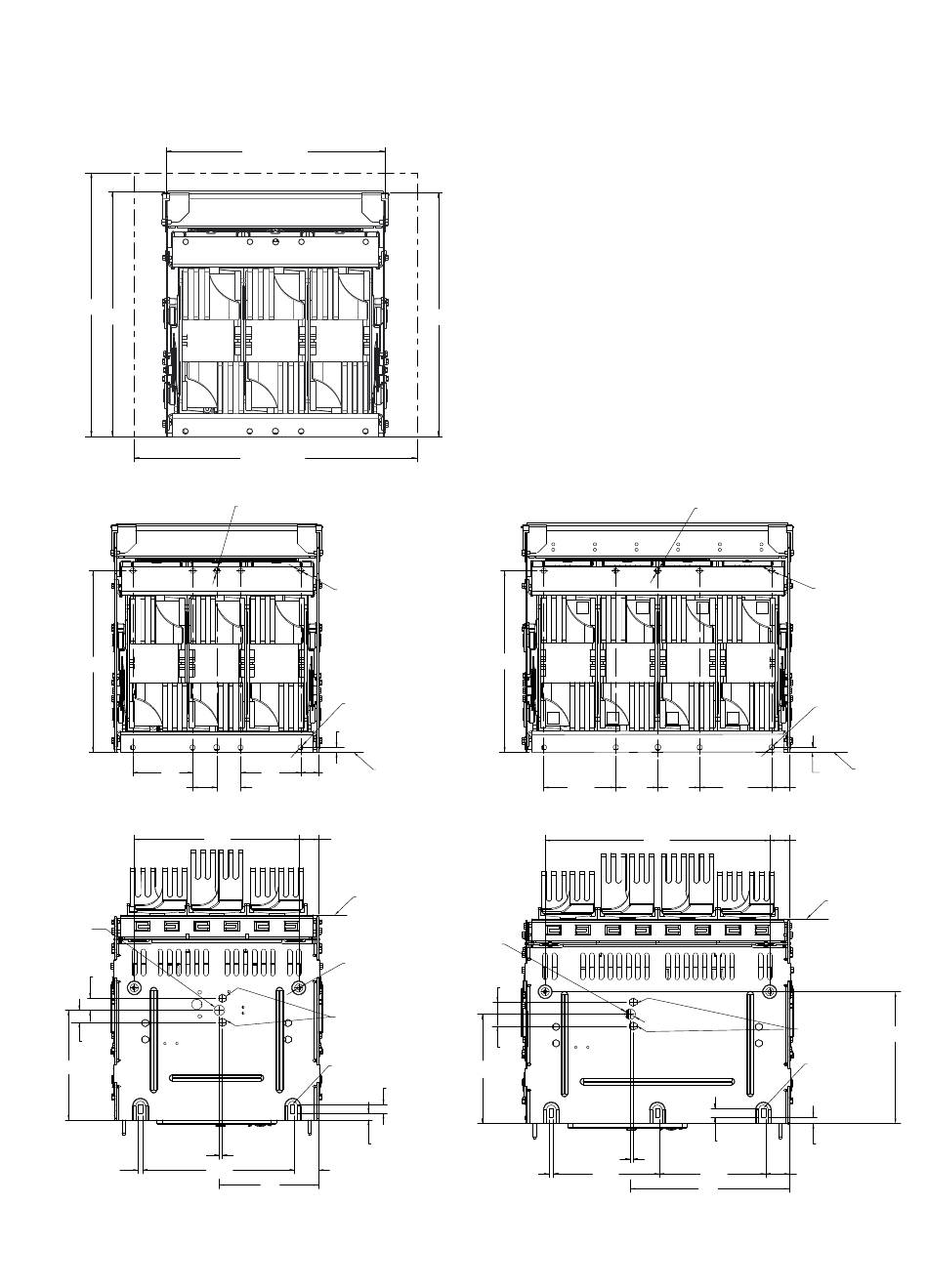

IZM32 Withdrawable Type Cassette Dimensions and Mounting Dimensions (3P and 4P, 4000A)
521
484
384.4
127
50.8 50.8
348.5
Earth
contact
access hole
25.4
25.4
231.9
6.4
2X8.9 322.4
432(3P);559(4P)
559(3P);686(4P)
ø12.4
2 places
ø11
4 places
ø11
4 places
10.2
Mounting plane
127
37.5
41.6
Mounting plane
ø8.6
12 places
Optional earth bus mounting
location. replace existing bolts
with M8x25 hex. bolts for use
with 1/4 ( 6mm) bus
Required mounting
locations
ø8.2
2X19.1
2 places
2X13.5
50.3
210
IZM32 / IN32 low voltage air circuit breaker MN013017EN May 2022 www.eaton.com
482
384.2
152.4
Earth contact
access hole
ø22.4
25.4
25.4
231.9
8.9 224.8
Section 4: Dimensional drawings
ø12.4
2 places
88.9 88.9 152.4
475.5
3X19.1
6.4
224.8
337
ø11
4 places
ø11
4 places
Mounting
10.2
plane
37.6
41.6
Mounting plane
Optional earth
bus mounting
location
279.4
Required mounting
locations
ø8.2
3 places
3X13.5
50.2
31
